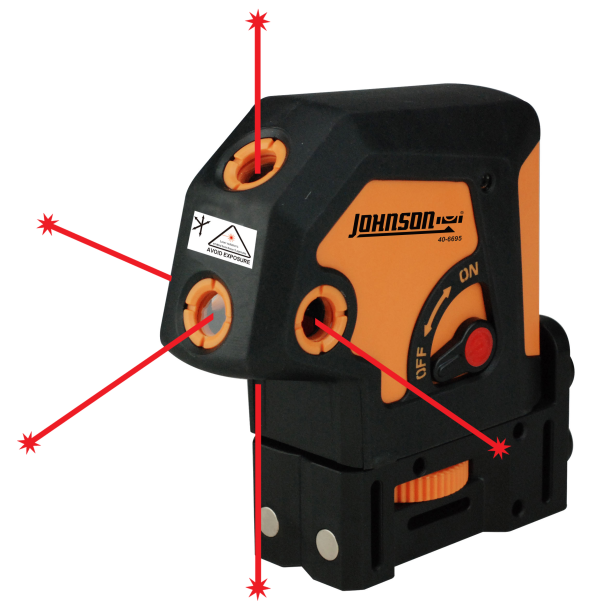

"JLT 5" Self-Leveling 5 Dot Laser

MODEL #:  40-6695

Johnson's self-leveling 5-dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 5 bright Class IIIa self-leveling beams that assure enhanced visibility, making it a versatile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom track wall installation, and the multi-functional magnetic base mounts easily to metal surfaces. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi-functional magnetic laser mount, mounting strap, magnetic target, tinted glasses, soft-sided pouch and hard-shell carrying case, this laser comes equipped with everything you need to get your job up and running.

+ Hover over main image to zoom
  • Self-leveling - 5 dot laser accurate + 1/4"/100'

  • Locking pendulum assures durability in transportation

  • Multi-functional magnetic base mounts to metal surfaces

  • Laser housing design allows fast and easy top and bottom track installation

  • Bright, bold dots assure enhanced visibility

  • 40-6695 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, instruction manual with warranty card, soft-sided pouch and hard-shell carrying case

40-6695 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, soft-sided pouch and hard-shell carrying case.

Leveling Method:

Self-leveling (Pendulum)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/50ft. (+/-2mm/10m)

Magnets:

Rare Earth Magnets

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 50 hours continuous use

Dimensions:

5.00" x 1.97" x 5.75" (127 x 51 x 146mm)

Weight:

1.43lbs. (0.65kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

IP Protection Class:

54

Warranty:

3 Year Warranty

This level is perfectly suited for plumb, level or square layout jobs, including piping, posts, walls, piers, footers and more! And this level's 5 dot laser beams are ideal for transferring reference points from the floor to the ceiling. The magnetic laser mount is also useful when your project involves ferrous metals, such as steel studs or steel reinforced concrete.

Replacement Hard-Shell Carrying Case for 40-6678 Model: 40-6789 $64.08
replacement hard-shell carrying case image
Replacement Hard-Shell Carrying Case for 40-6692, 40-6693 and 40-6695 Model: 40-6372 $51.32
replacement multi-functional magnetic base
Replacement Multi-Functional Magnetic Base for 40-6692, 40-6693, 40-6695, 40-6678 Model: 40-6307 $22.00
replacement soft-sided carrying case image
Replacement Soft-Sided Carrying Case for 40-6650v1, 40-6656, 40-6692, 40-6693 and 40-6695 Model: 40-6393 $13.20


Product Details

Johnson's self-leveling 5-dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 5 bright Class IIIa self-leveling beams that assure enhanced visibility, making it a versatile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom track wall installation, and the multi-functional magnetic base mounts easily to metal surfaces. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi-functional magnetic laser mount, mounting strap, magnetic target, tinted glasses, soft-sided pouch and hard-shell carrying case, this laser comes equipped with everything you need to get your job up and running.



40-6695 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, soft-sided pouch and hard-shell carrying case.

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/50ft. (+/-2mm/10m)

Magnets:

Rare Earth Magnets

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 50 hours continuous use

Dimensions:

5.00" x 1.97" x 5.75" (127 x 51 x 146mm)

Weight:

1.43lbs. (0.65kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

This level is perfectly suited for plumb, level or square layout jobs, including piping, posts, walls, piers, footers and more! And this level's 5 dot laser beams are ideal for transferring reference points from the floor to the ceiling. The magnetic laser mount is also useful when your project involves ferrous metals, such as steel studs or steel reinforced concrete.
