Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit

MODEL #:  40-6534

Designed for the advanced laser user, this rotary laser kit is feature-packed to tackle any job - indoor or outdoor. The laser self-levels both horizontally and vertically, making vertical layout such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 and 800 RPM). Accuracy is never a problem with this rotary laser - it features visual and audible alerts when it is beyond its leveling range. With the included detector, clamp, tinted glasses, target, battery charger, alkaline battery compartment, wall/ceiling mount, remote control, NiMH rechargeable battery pack and hard-shell carrying case, you'll have everything you need to get your job up and running.

40-6534 main+ Hover over main image to zoom

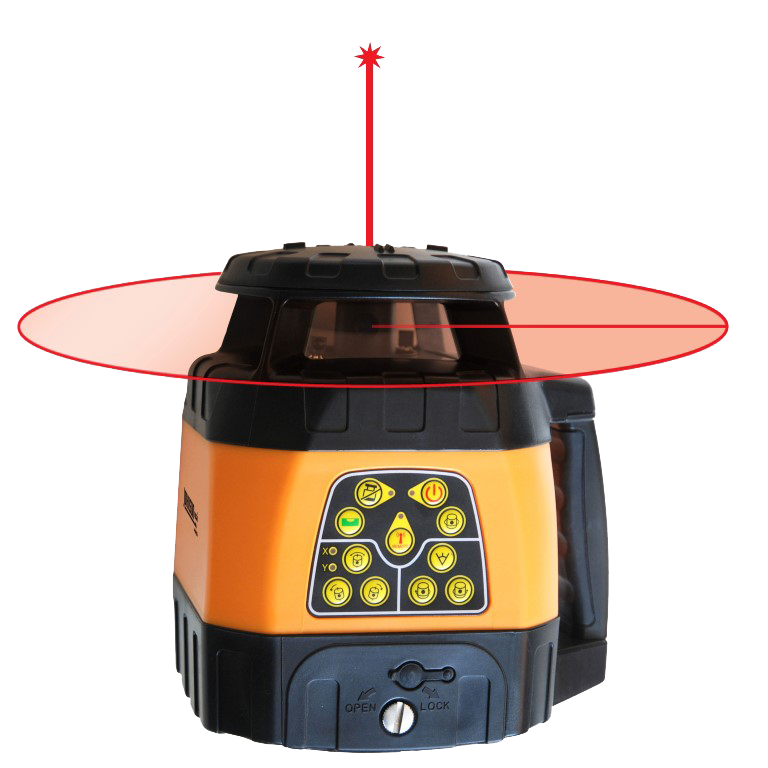

40-6534 main

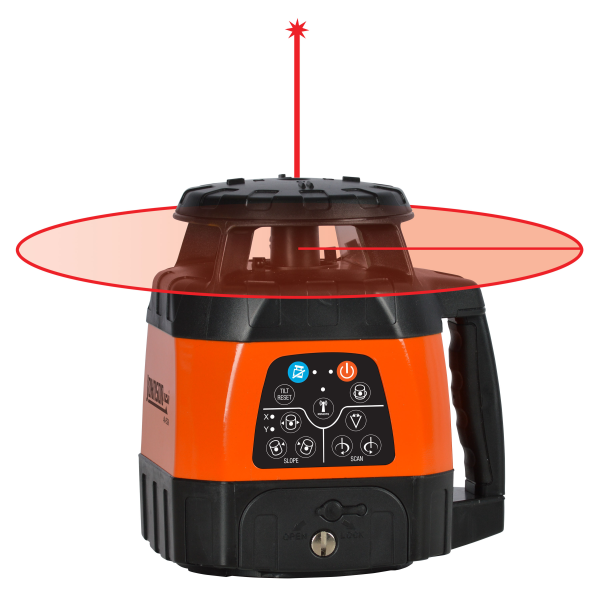

40-6534 main 2
40-6534 alt 1
40-6534 alt 2
40-6534 kit
  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotation speeds

  • Two rotational speeds: 200 and 500 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of instrument/Tilt alarm function ensures product accuracy

40-6534 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 2 AA batteries, tinted glasses, magnetic target, and a hard-shell carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 1,500 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±5°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery park and 6.4V adapter (included) or "C" alkaline batteries (not included)

Battery Life:

Approximately 24 hours with rachargeable battery pack; 40 hrs with 4 "C" alkaline batteries

Dimensions:

7.95" x 8.62" x 6.29"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300, 800 RPM

IP Protection Class:

54

Warranty:

3 Years

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. Featuring one of Johnson's most advanced rotaries, this kit is suitable for use in any rotary application!

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, 99-028K, and 40-6590I Model: 40-6857 $8.80
Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $39.00
Replacement Hard-Shell Carrying Case for 40-6529 and 40-6534 Model: 40-6819 $99.00
Replacement Leveling Screw for 40-6304 - 2/set
Replacement Screws with Base for 40-6304 Model: 40-6305 $4.40
Replacement NiMH Rechargeable Battery Pack for 40-6529 and 40-6544
Replacement NiMH Rechargeable Battery Pack for 40-6526, 40-6529, 40-6544, 40-6534, 40-6551, 40-6552, 40-6590, 40-6590I and 99-028K Model: 40-6383 $77.00
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $12.48
40-6985
Replacement Remote Control for 40-6590, 40-6590I, 40-6529V2, 40-6544V2, 40-6534V2 and 99-028KV2 Model: 40-6985 $215.12


Product Details

Designed for the advanced laser user, this rotary laser kit is feature-packed to tackle any job - indoor or outdoor. The laser self-levels both horizontally and vertically, making vertical layout such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 and 800 RPM). Accuracy is never a problem with this rotary laser - it features visual and audible alerts when it is beyond its leveling range. With the included detector, clamp, tinted glasses, target, battery charger, alkaline battery compartment, wall/ceiling mount, remote control, NiMH rechargeable battery pack and hard-shell carrying case, you'll have everything you need to get your job up and running.



40-6534 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 2 AA batteries, tinted glasses, magnetic target, and a hard-shell carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 1,500 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±5°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery park and 6.4V adapter (included) or "C" alkaline batteries (not included)

Battery Life:

Approximately 24 hours with rachargeable battery pack; 40 hrs with 4 "C" alkaline batteries

Dimensions:

7.95" x 8.62" x 6.29"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300, 800 RPM

IP Protection Class:

54

Warranty:

3 Years

Application

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. Featuring one of Johnson's most advanced rotaries, this kit is suitable for use in any rotary application!
