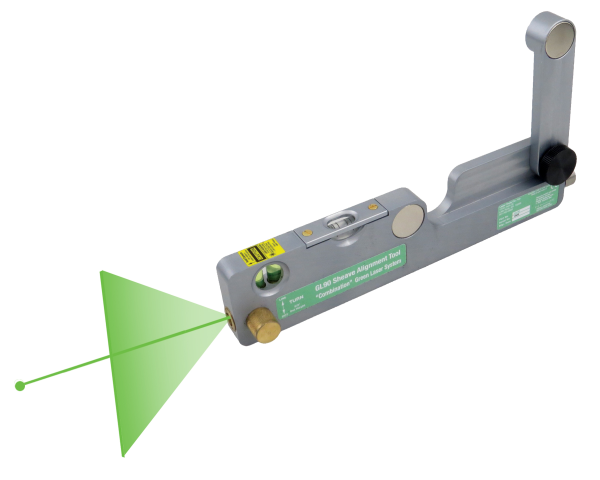

GLX90 Combination Laser System Green Beam Sheave or Dot
The 40-6274 features an ultra‑bright green laser line visible on a magnetic target in direct sunlight and works seamlessly with both small and large drive sheaves. The laser mounts quickly to the inside or outside of the drive sheave without removing belt guards, while a simple turret rotation instantly switches between line and dot modes—eliminating the need for multiple tools. Accurate level and plumb vials combined with a precision laser beam to extend reference points for reliable layout measurement. Adjustable magnetic targets accommodate varying sheave thicknesses with positive or negative positioning. Built for demanding environments, the rugged hard‑anodized case is designed to withstand tough industrial jobsite conditions, making it a dependable all‑in‑one solution for alignment and belt drive applications.
+ Hover over main image to zoom
Green laser line is visible on magnetic target in direct sunlight
Green laser dot can be seen in direct sunlight at 100'
Works with small and large drive sheaves
Attaches to either the inside or outside of the drive sheave without removing the belt guard
Simple turret rotation conveniently changes the laser from line to dot - one laser tool does the work of two
Accurate level and plumb vials provide layout measurement
Precision laser beam extends the level and plumb reference
Magnetic targets adjust positively and negatively to accommodate varying sheave thicknesses
Tension testers cover 20 to 300 lbs of belt tension
Stainless steel battery end cap switch inhibits corrosion and electrolysis
Rugged hard-anodized case built to withstand industrial jobsite conditions
40-6274 Includes> 4 magnetic targets, 2 Krikit® tension testers, 3 "AAA" alkaline batteries, magnetic carrying case
| Laser Wavelength: | 520nm+10nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | <5mW |
| Accuracy: | Line 60° angle accuracy +0.5°, Dot +1/8"/100' |
| Working Range: | Up to 100' |
| Power Supply: | 3 "AAA" alkaline batteries (included) |
| Battery Life: | 5 hours |
| Working Temperature: | 14°F to 122°F |
| Level Vial: | 5 arc minute |
| Plumb Vials: | 40 arc minute |
| IP Protection Class: | IP65 |
| Warranty: | 1 Year Warranty |
Premium green laser, combination tool that includes a precision laser beam to extend the level and plumb reference and vertical laser line for belt transmission alignments.
