Self-Leveling 3x360° Laser with GreenBrite® Technology

MODEL #:  40-6674

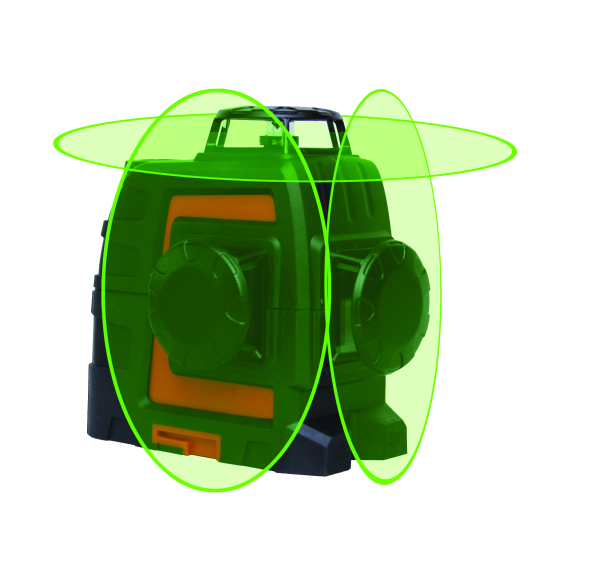

Johnson's ultra-bright green beam laser projects three self-leveling 360° planes of laser light for total jobsite coverage up to 200’. This laser offers 3 green beams – one horizontal and two vertical for one-person alignment, leveling and layout using one tool. Robust construction withstands tough jobsite conditions and provides resistance to dust and water. Pulse mode for use with separate detector in bright light or outdoor conditions where beams are not visible.

40-6674 Kit+ Hover over main image to zoom
40-6674 Kit
40-6674
40-6674 Mounted
40-6674 Beam
  • GreenBrite Technology - 400% more visible than red lasers

  • Projects three self-leveling 360° planes of laser light for total jobsite coverage

  • Manual mode allows unit to tilt at extreme angles

  • Includes li-ion rechargeable battery pack for long battery life

  • Pulse mode for use with green line detector (sold separately)

  • Pendulum lock protects laser during transport

  • Visual and audible alarms when beyond leveling range

  • Laser can be rotated 360° and raised or lowered 2-1/2" when attached to magnetic base

  • Multi-functional magnetic base provides strong hold that will not slide

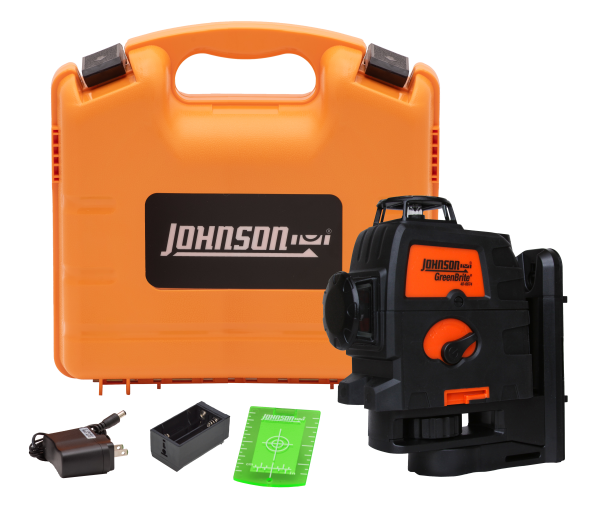

Includes: Laser with magnetic base, magnetic target, li-ion battery and charger, alkaline battery compartment (alkaline batteries not included), hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

515nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

+3/16"/50

Self-Leveling Range:

+3°

Power Supply:

Li-ion

Battery Life:

13 hours

Working Temperature:

14°F to 113°F

IP Protection Class:

IP54

Warranty:

3 Year Warranty

This all-in-one line laser featuring GreenBrite® Technology is ideal for drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, paneling/wainscoting.

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.

Manual
40-6674 Instruction Manual

Replacement Alkaline Battery Compartment (no batteries) for 40-6674 Model: 40-6416 $9.02
Replacement Elevating Magnetic Bracket for 40-6674 Model: 40-6417 $36.52
Replacement Green Magnetic Target
Replacement Green Magnetic Target for 40-6657, 40-6688, 40-6681, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6674, 40-6676, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6846 $16.58
Replacement Hard-Shell Carrying Case for 40-6674 Model: 40-6412 $58.22
40-6999 Main
Replacement Li-ion Charger for 40-6650V2, 40-6657V2, 40-6681, 40-6674 and 40-6676 Model: 40-6999 $40.08
Replacement Li-ion Rechargeable Battery Pack for 40-6674 Model: 40-6415 $81.22


Product Details

Johnson's ultra-bright green beam laser projects three self-leveling 360° planes of laser light for total jobsite coverage up to 200’. This laser offers 3 green beams – one horizontal and two vertical for one-person alignment, leveling and layout using one tool. Robust construction withstands tough jobsite conditions and provides resistance to dust and water. Pulse mode for use with separate detector in bright light or outdoor conditions where beams are not visible.



Includes: Laser with magnetic base, magnetic target, li-ion battery and charger, alkaline battery compartment (alkaline batteries not included), hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

515nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

+3/16"/50

Self-Leveling Range:

+3°

Power Supply:

Li-ion

Battery Life:

13 hours

Working Temperature:

14°F to 113°F

IP Protection Class:

IP54

Warranty:

3 Year Warranty

Application

This all-in-one line laser featuring GreenBrite® Technology is ideal for drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, paneling/wainscoting.

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.

Manual
40-6674 Instruction Manual

Replacement Parts

Replacement Alkaline Battery Compartment (no batteries) for 40-6674 Model: 40-6416 $9.02
Replacement Elevating Magnetic Bracket for 40-6674 Model: 40-6417 $36.52
Replacement Green Magnetic Target
Replacement Green Magnetic Target for 40-6657, 40-6688, 40-6681, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6674, 40-6676, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6846 $16.58
Replacement Hard-Shell Carrying Case for 40-6674 Model: 40-6412 $58.22
40-6999 Main
Replacement Li-ion Charger for 40-6650V2, 40-6657V2, 40-6681, 40-6674 and 40-6676 Model: 40-6999 $40.08
Replacement Li-ion Rechargeable Battery Pack for 40-6674 Model: 40-6415 $81.22
