Self-Leveling Cross-Line Laser Kit
![](/Content/homeBtns/logoUnderline.png)

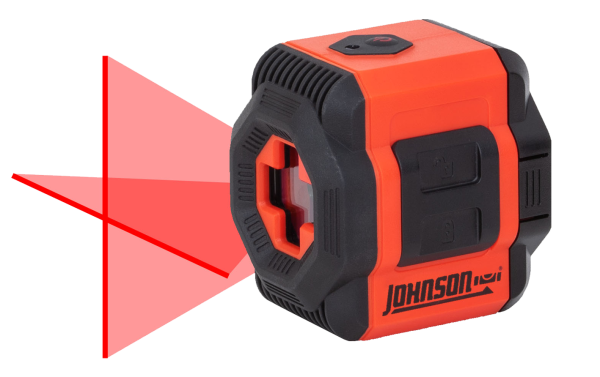

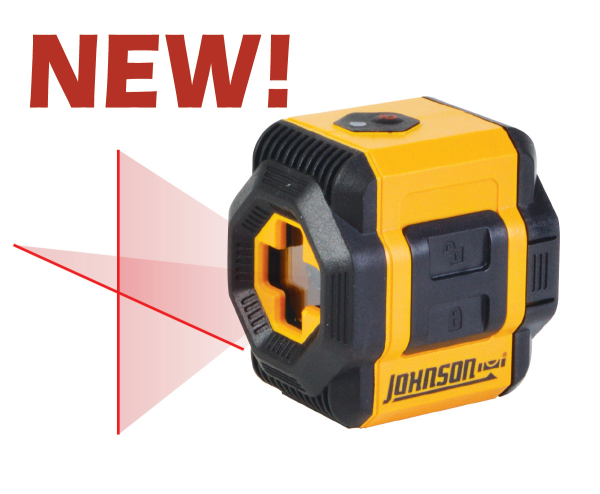

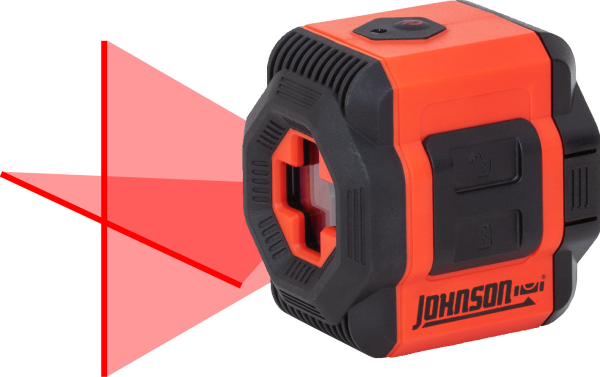

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile, easy to use and inexpensive. Johnson's self-leveling cross-line laser projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. It also features a manual mode for use at any angle for working on stairs or other non-level projects. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With a magnetic target, magnetic bracket, and tinted glasses, this kit has all you'll need to get your laser leveling project started.
![40-6605 Kit 40-6605 Kit](/Content/files/ProductImages/40-6605 Kit.jpg)
![40-6605 Kit 40-6605 Kit](/Content/files/ProductImages/40-6605 Kit.jpg)
![](/Content/files/ProductImages/40-6605 retail ad replace or add_THSq.jpg)
![40-6605 40-6605](/Content/files/ProductImages/40-6605_THSq.jpg)
![40-6605 Beam 40-6605 Beam](/Content/files/ProductImages/v_cc69_40-660340-6605 wbeam_THSq.png)
![](/Content/files/ProductImages/v_d2b1_40-660340-6605 1_THSq.jpg)
Vertical and Horizontal laser lines
Manual mode for use at any angle
Pendulum lock protects laser during transport
Visual out-of-level indicator
1/4"- 20 tripod thread for use with most common tripods
40-6605 Includes > Red laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
Leveling Method: | Self-Leveling (Pendulum) |
---|---|
Laser Wavelength: | 635nm±10nm(Red) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±3/16"/30' |
Working Range: | Up to 50' |
Self-Leveling Range: | ±4° |
Power Supply: | 2 "AA" alkaline batteries (included) |
Battery Life: | 20 Hours continuous use |
Dimensions: | 2.4" x 2.9" x 3.0" |
Weight: | 6.9 oz (without batteries) |
Working Temperature: | 32°F to 104°F |
IP Protection Class: | IP 50 |
Warranty: | 2 Years |
Johnson's 40-6605 cross-line laser is a versatile tool that you'll find useful for any number of leveling projects, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
English Manual 40-6605
![Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646](/Content/files/ProductImages/40-6993_THL.jpg)
Product Details
Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile, easy to use and inexpensive. Johnson's self-leveling cross-line laser projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. It also features a manual mode for use at any angle for working on stairs or other non-level projects. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With a magnetic target, magnetic bracket, and tinted glasses, this kit has all you'll need to get your laser leveling project started.
40-6605 Includes > Red laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
Specifications
Leveling Method: | Self-Leveling (Pendulum) |
---|---|
Laser Wavelength: | 635nm±10nm(Red) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±3/16"/30' |
Working Range: | Up to 50' |
Self-Leveling Range: | ±4° |
Power Supply: | 2 "AA" alkaline batteries (included) |
Battery Life: | 20 Hours continuous use |
Dimensions: | 2.4" x 2.9" x 3.0" |
Weight: | 6.9 oz (without batteries) |
Working Temperature: | 32°F to 104°F |
IP Protection Class: | IP 50 |
Warranty: | 2 Years |
Application
Johnson's 40-6605 cross-line laser is a versatile tool that you'll find useful for any number of leveling projects, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
English Manual 40-6605
