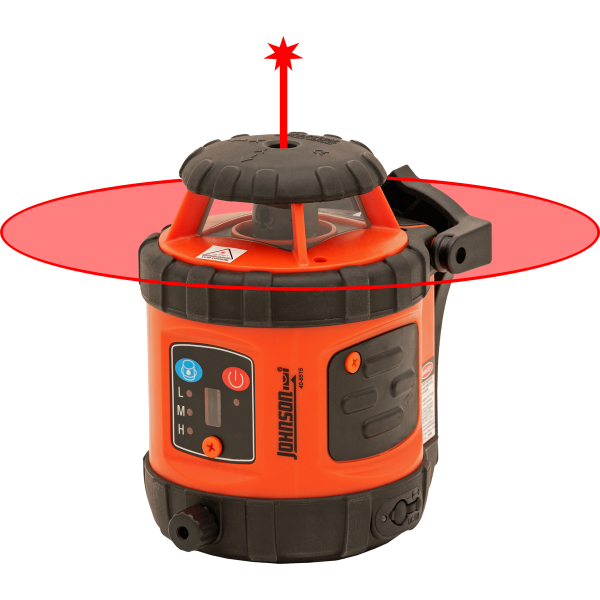

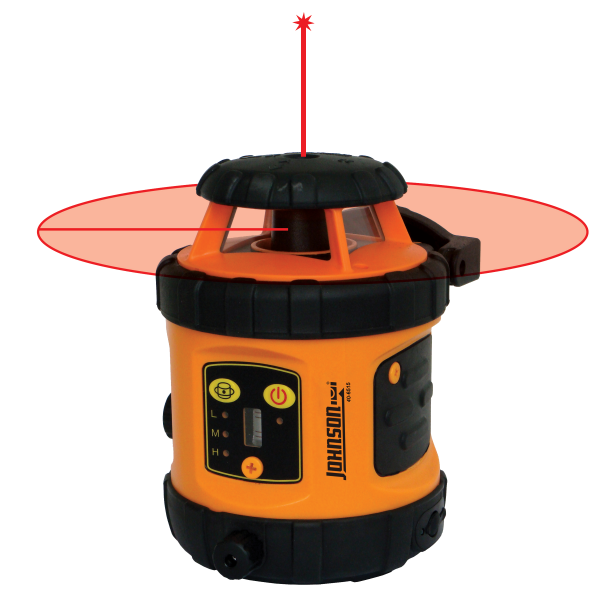

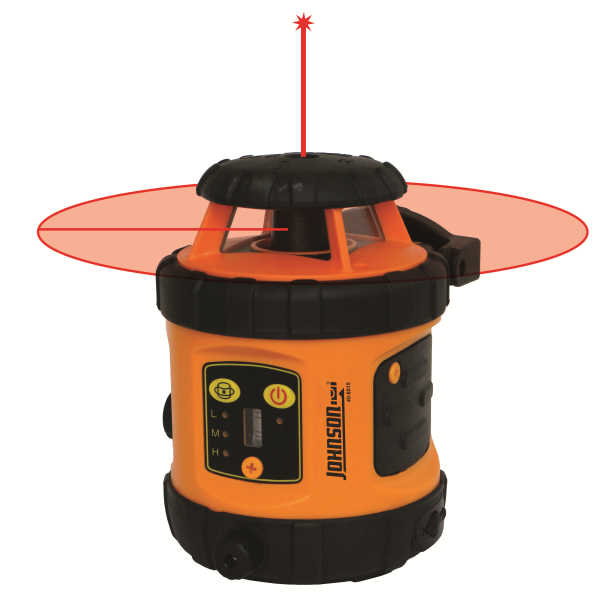

Self-Leveling Horizontal Rotary Laser System

MODEL #:  99-026K

The 99-026K contains everything you need to level your jobsite. A great starter rotary, or perfect for small residential jobsites. This rotary self levels in the horizontal plane and manually levels in the vertical plane.

  • 800' working diameter- over 11 acres!

  • Includes everything to grade or level your jobsite

  • One person operation

  • Includes rechargeable batteries

  • Visual and audible alarms when beyond leveling range

  • Locking compensator protects inner mechanisms

  • 90º split beam for alignment work

  • Manual leveling in vertical plane

99-026K Includes > Laser, NiMH rechargeable battery pack, 6V battery charger, detector with clamp and 9V battery, tripod, 13' grade rod, wall/ceiling mounting bracket, magnetic target, tinted glasses, and hard-shell carrying case

Warranty:

3 Years

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class llla

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 800 ft. diameter with detector

Self-Leveling Range:

±3 degrees

Power Supply:

NiMH rechargeable battery pack

Dimensions:

6.69" x 4.96" x 6.69"

Weight:

3.30 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

200, 400, 600 RPM

IP Protection Class:

54

Battery Life:

Approximately 11 hours

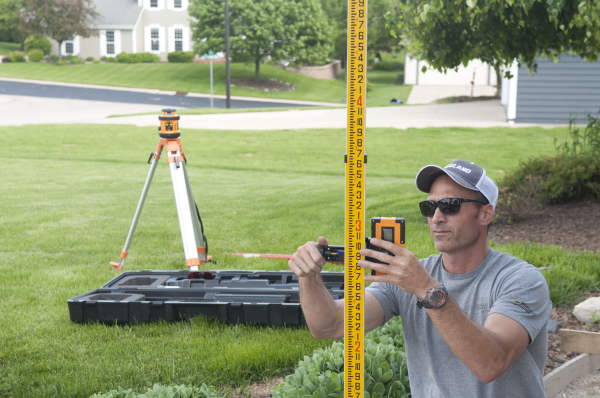

Perfect for residential excavations, landscaping, fence lines, wainscoting, drop ceilings.

Replacement 6V Battery Adapter
Replacement 6V Charger for 40-6500, 40-6502, 40-6505, 40-6507, 40-6510, 40-6512, 40-6515, 40-6516, 40-6517, 99-026K, 40-6520, 40-6525, 40-6530, 40-6521, 40-6522, 40-6523, 40-6535(V1 only), 40-6536(V1 only), 40-6537, 40-6540, 40-6541(V1 only), 40-6545, 40-6547, 40-6602, 40-6604, 40-6640 and 40-6660 Model: 40-6836 $49.76
Replacement Detector Clamp for 40-6700
Replacement Detector Clamp for 40-6700 Model: 40-2026 $56.66
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.82
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $5.88
Replacement Hard-Shell Carrying Case for 99-026K Model: 40-6980 $443.96
Replacement NiMH Rechargeable Battery Pack
Replacement NiMH Rechargeable Battery Pack 2/Set for 40-6515, 40-6516, 40-6517, and 99-026K Model: 40-6983 $38.88
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $12.48
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.44
Replacement Laser Wall and Ceiling Mount
Replacement Wall/Ceiling Mount for 40-6512, 40-6517, 40-6543, 40-6544, and 99-026K Model: 40-6371 $66.00


Product Details

The 99-026K contains everything you need to level your jobsite. A great starter rotary, or perfect for small residential jobsites. This rotary self levels in the horizontal plane and manually levels in the vertical plane.



99-026K Includes > Laser, NiMH rechargeable battery pack, 6V battery charger, detector with clamp and 9V battery, tripod, 13' grade rod, wall/ceiling mounting bracket, magnetic target, tinted glasses, and hard-shell carrying case

Specifications

Warranty:

3 Years

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class llla

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 800 ft. diameter with detector

Self-Leveling Range:

±3 degrees

Power Supply:

NiMH rechargeable battery pack

Dimensions:

6.69" x 4.96" x 6.69"

Weight:

3.30 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

200, 400, 600 RPM

IP Protection Class:

54

Battery Life:

Approximately 11 hours

Application

Perfect for residential excavations, landscaping, fence lines, wainscoting, drop ceilings.
