Self-Leveling Rotary Laser System

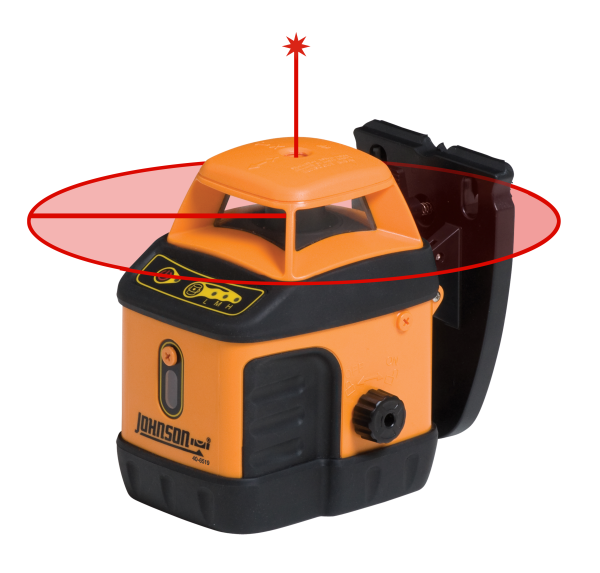

Johnson's 40-6519 rotary laser system is the perfect tool for any number of leveling applications - indoor and outdoor. The rotary features horizontal self-leveling as well as manual leveling in the vertical plane, while its split beam establishes a 90° angle. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With an included laser detector, grade rod and tripod, this rotary laser system comes equipped with everything you need to get up and running!
+ Hover over main image to zoom
Horizontal self-leveling
Manual-leveling in the vertical plane
Split beam establishes a 90 degree angle
Includes laser detector
40-6519 Includes > Laser, 6 "AA" alkaline batteries, detector with 2 "AAA" alkaline batteries and clamp, tinted glasses, magnetic target, 8 ft. grade rod, elevating tripod, and hard-shell carrying case
| Leveling Method: | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength: | 635nm±10nm (Red) |
| Laser Classification: | Class IIIa |
| Maximum Power Output: | ≤5mW |
| Accuracy: | ±3/16"/50' |
| Interior Range: | Up to 200 ft. |
| Exterior Range: | Up to 800 ft. with detector (included) |
| Self-Leveling Range: | ±3° |
| Power Supply: | 6 "AA" alkaline batteries (included) |
| Battery Life: | 25 hours continuous use |
| Dimensions: | 5.70" x 4.20" x 6.20" |
| Weight: | 3.10 LBS |
| Working Temperature: | 14°F-113°F |
| Rotation Speeds: | 200, 400, 600 RPM |
| IP Protection Class: | 54 |
| Warranty: | 3 Years |
Ideal for indoor and outdoor jobs, this rotary laser system is a must-have for excavation, flatwork, interior layouts, drop ceilings, wainscoting, cabinet installation and more!
