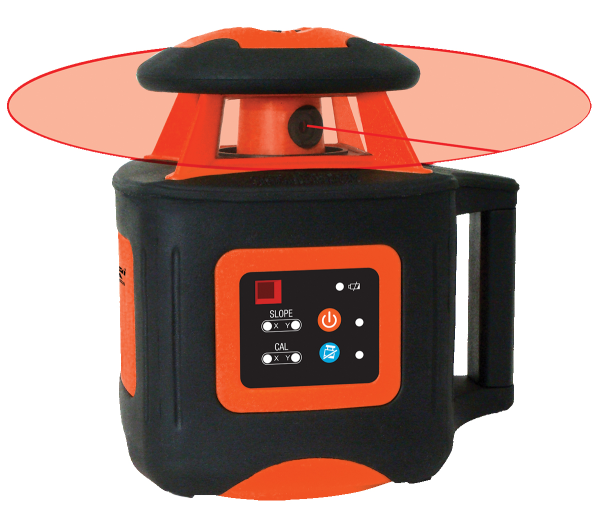

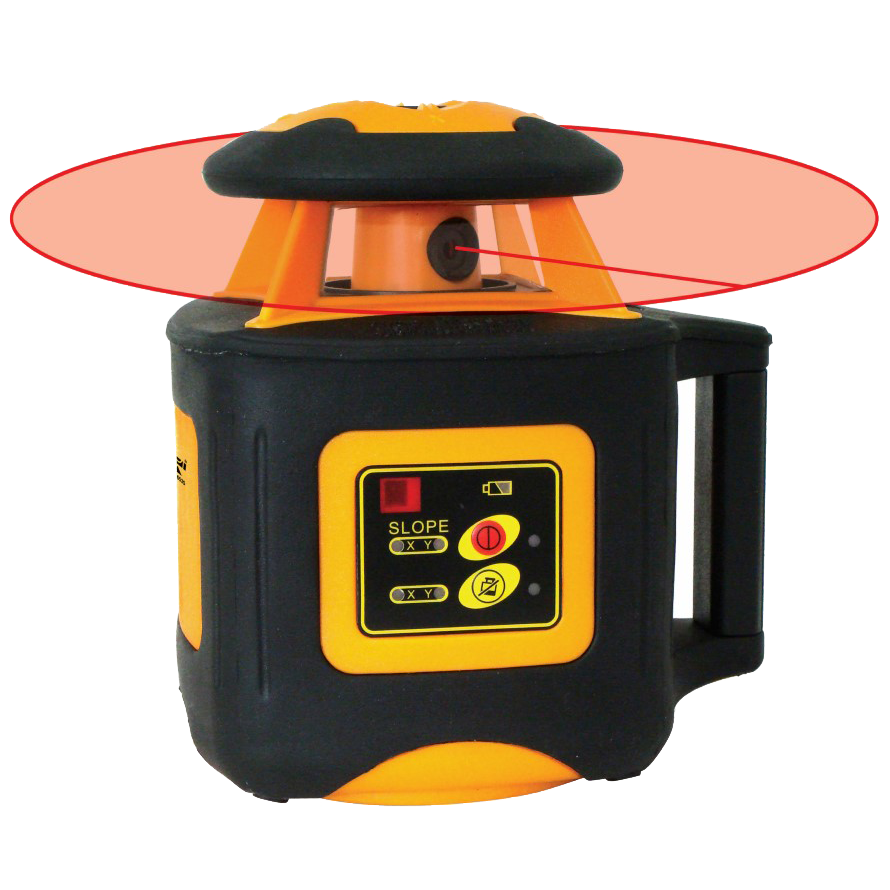

High Accuracy Dual Slope Rotary Laser Kit

MODEL #:  40-6535

This rotary laser kit is the simplest way to get your outdoor job up and running. With simple set-up and visual and audible alarms to alert you when the rotary is beyond its leveling range, you can quickly get the information you need with guaranteed accuracy. And the included remote control and detector allow for one-person operation. The laser's electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage, while its electronic self-leveling in the horizontal plane is ideal for excavation and concrete work. With the included NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with 9V battery and clamp, and hard-shell carrying case, this kit comes equipped with everything you need for your next outdoor jobsite!

  • Designed for outdoor use and simple set up

  • Electronically-controlled dual slope feature

  • Electronic self-leveling in the horizontal plane

  • Visual and audible alarms when beyond leveling range

  • Slope operation function allows user to perform slope 8 degrees in both x and y axis

  • Remote control and detector for one person operation

  • Height of Instrument/Tilt alarm function ensures product accuracy

40-6535 Kit Includes > Laser, NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with 9V battery and clamp, and hard-shell carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

±5mW

Accuracy:

±1/16"/100

Interior Range:

Up to 200' diameter

Exterior Range:

Up to 2,000' diameter

Remote Range:

Up to 200' diameter

Slope:

±8°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery pack and charger (included), 4 "C" alkaline batteries (not included)

Battery Life:

28 hours NiMH; 33 hours alkaline batteries

Dimensions:

7.4" x 5.9" x 8.15"

Weight:

5.51 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

800 RPM

IP Protection Class:

66

Warranty:

3 Years

The rotary's self-leveling feature in the horizontal mode makes it ideal for excavation, concrete and other outdoor applications, while the electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs.

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement 6V Battery Adapter
Replacement 6V Charger for 40-6500, 40-6502, 40-6505, 40-6507, 40-6510, 40-6512, 40-6515, 40-6516, 40-6517, 99-026K, 40-6520, 40-6525, 40-6530, 40-6521, 40-6522, 40-6523, 40-6535(V1 only), 40-6536(V1 only), 40-6537, 40-6540, 40-6541(V1 only), 40-6545, 40-6547, 40-6602, 40-6604, 40-6640 and 40-6660 Model: 40-6836 $49.76
Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $39.00
Replacement Hard-Shell Carrying Case for 40-6535 Model: 40-6349 $123.64
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570, and 40-6541 Model: 40-6826 $82.94
Replacement Remote Control for 40-6560, 40-6570, 40-6535, and 40-6541 Model: 40-6750 $51.32


Product Details

This rotary laser kit is the simplest way to get your outdoor job up and running. With simple set-up and visual and audible alarms to alert you when the rotary is beyond its leveling range, you can quickly get the information you need with guaranteed accuracy. And the included remote control and detector allow for one-person operation. The laser's electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage, while its electronic self-leveling in the horizontal plane is ideal for excavation and concrete work. With the included NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with 9V battery and clamp, and hard-shell carrying case, this kit comes equipped with everything you need for your next outdoor jobsite!



40-6535 Kit Includes > Laser, NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with 9V battery and clamp, and hard-shell carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

±5mW

Accuracy:

±1/16"/100

Interior Range:

Up to 200' diameter

Exterior Range:

Up to 2,000' diameter

Remote Range:

Up to 200' diameter

Slope:

±8°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery pack and charger (included), 4 "C" alkaline batteries (not included)

Battery Life:

28 hours NiMH; 33 hours alkaline batteries

Dimensions:

7.4" x 5.9" x 8.15"

Weight:

5.51 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

800 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

The rotary's self-leveling feature in the horizontal mode makes it ideal for excavation, concrete and other outdoor applications, while the electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs.
