Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit

MODEL #:  40-6529

Designed for the advanced laser user, this rotary laser kit is feature-packed to tackle any job - indoor or outdoor. The laser self-levels both horizontally and vertically, making vertical layout such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 and 800 RPM). Accuracy is never a problem with this rotary laser - it features visual and audible alerts when it is beyond its leveling range. With the included detector, clamp, tinted glasses, target, battery charger, alkaline battery compartment, remote control, NiMH rechargeable battery pack and hard-shell carrying case, you'll have everything you need to get your job up and running.

40-6529 Kit+ Hover over main image to zoom
40-6529 Kit

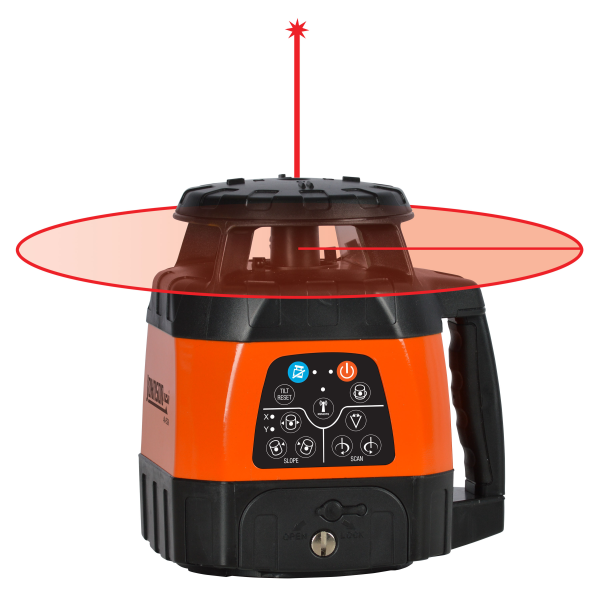

40-6529 beams

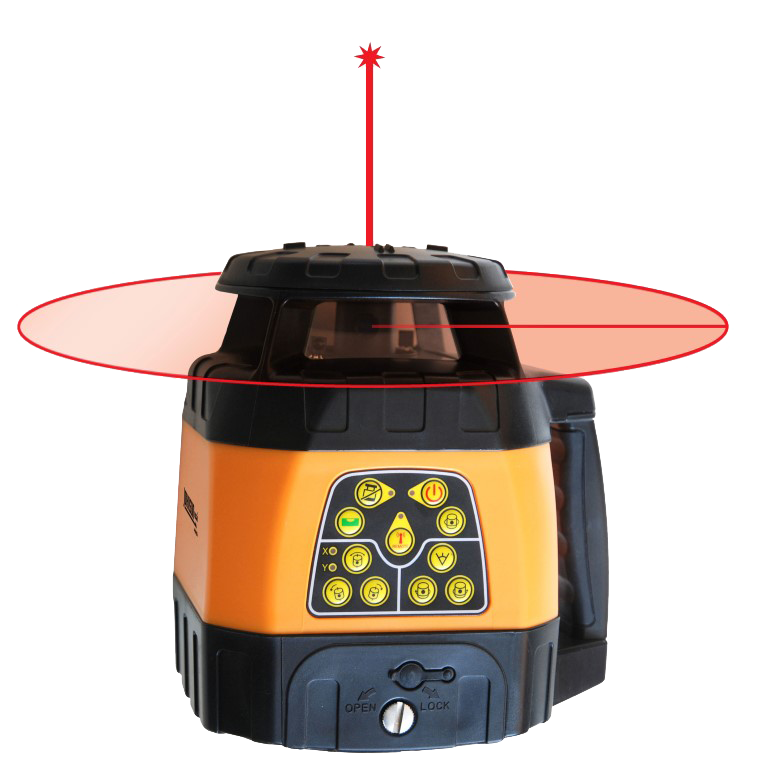

40-6529
40-6529 alt 1
40-6529 alt 2
  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 300 and 800 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

40-6529 Kit Includes > Laser, detector with clamp and 9V battery, tinted glasses, target, 6.4V battery adapter, alkaline battery comparent (batteries not included), remote control with 2 AA batteries, NiMH rechargeable battery pack, and hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 1,500 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±5°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery park and 6.4V adapter (included in 40-6529 &40-6534) pr 4"C" alkaline batteries (included in 40-6526)

Battery Life:

24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries

Dimensions:

7.95" x 6.29" x 8.62"

Weight:

4.4 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

300, 800 RPM

IP Protection Class:

54

Warranty:
3 Year Warranty

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. Featuring one of Johnson's most advanced rotaries, this kit is suitable for use in any rotary application!

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, 99-028K, and 40-6590I Model: 40-6857 $8.80
Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $39.00
Replacement Hard-Shell Carrying Case for 40-6529 and 40-6534 Model: 40-6819 $99.00
Replacement NiMH Rechargeable Battery Pack for 40-6529 and 40-6544
Replacement NiMH Rechargeable Battery Pack for 40-6526, 40-6529, 40-6544, 40-6534, 40-6551, 40-6552, 40-6590, 40-6590I and 99-028K Model: 40-6383 $77.00
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $12.48
Replacement Remote Control for 40-6529V1, 40-6544V1, 40-6534V1 and 99-028KV1 Model: 40-6740 $124.38
40-6985
Replacement Remote Control for 40-6590, 40-6590I, 40-6529V2, 40-6544V2, 40-6534V2 and 99-028KV2 Model: 40-6985 $215.12


Product Details

Designed for the advanced laser user, this rotary laser kit is feature-packed to tackle any job - indoor or outdoor. The laser self-levels both horizontally and vertically, making vertical layout such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 and 800 RPM). Accuracy is never a problem with this rotary laser - it features visual and audible alerts when it is beyond its leveling range. With the included detector, clamp, tinted glasses, target, battery charger, alkaline battery compartment, remote control, NiMH rechargeable battery pack and hard-shell carrying case, you'll have everything you need to get your job up and running.



40-6529 Kit Includes > Laser, detector with clamp and 9V battery, tinted glasses, target, 6.4V battery adapter, alkaline battery comparent (batteries not included), remote control with 2 AA batteries, NiMH rechargeable battery pack, and hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 1,500 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±5°

Auto-Leveling Range:

±5°

Power Supply:

NiMH rechargeable battery park and 6.4V adapter (included in 40-6529 &40-6534) pr 4"C" alkaline batteries (included in 40-6526)

Battery Life:

24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries

Dimensions:

7.95" x 6.29" x 8.62"

Weight:

4.4 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

300, 800 RPM

IP Protection Class:

54

Warranty:
3 Year Warranty

Application

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. Featuring one of Johnson's most advanced rotaries, this kit is suitable for use in any rotary application!
