Electronic Self-Leveling Horizontal & Vertical Rotary Laser

MODEL #:  40-6526

Designed for the advanced laser user, this rotary laser is feature-packed to tackle any job - indoor or outdoor. It self-levels both horizontally and vertically, making vertical layout projects such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 & 800 RPM).

+ Hover over main image to zoom

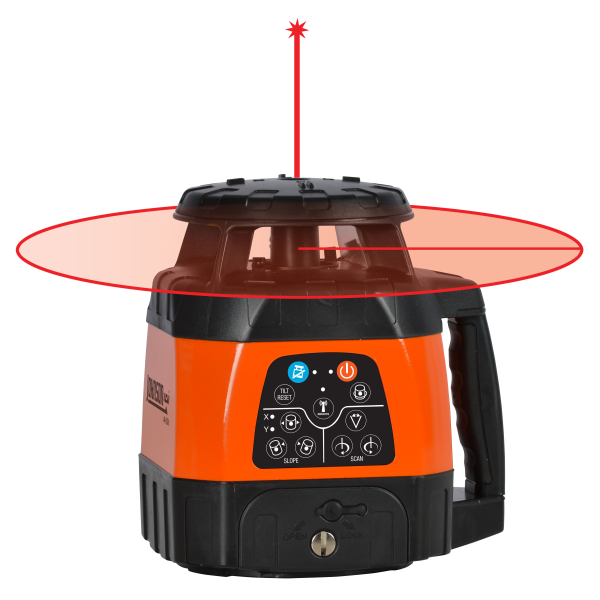

40-6526 Electronic Self-Leveling Horizontal & Vertical Rotary Laser
40-6526 Kit
  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 300 & 800 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

40-6526 Includes > Laser, 4 "C" alkaline batteries, tinted glasses, and soft-sided carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100ft. (+/- 1.0mm/10m)

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 1,500 ft. diameter with detector (included in 40-6529 & 40-6534)

Remote Range:

Up to 200 ft. diameter

Slope:

±5 degrees

Auto-Leveling Range:

±5 degrees

Power Supply:

NiMH rechargeable battery pack and 6.4V adapter (included in 40-6529 &40-6534) or 4"C" alkaline batteries (included in 40-6526)

Battery Life:

Approximately 24 hours with rechargeable battery pack; 40 hours with alkaline batteries

Dimensions:

6.29" x 8.62" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300 & 800 RPM

IP Protection Class:

54

Warranty:

3 Years

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. One of Johnson's most advanced rotaries, this model is suitable for use in any rotary application!

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, 99-028K, and 40-6590I Model: 40-6857 $8.80
Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $39.00
Replacement Hard-Shell Carrying Case for 40-6529 and 40-6534 Model: 40-6819 $99.00
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $12.48
Replacement Remote Control for 40-6529V1, 40-6544V1, 40-6534V1 and 99-028KV1 Model: 40-6740 $124.38
40-6985
Replacement Remote Control for 40-6590, 40-6590I, 40-6529V2, 40-6544V2, 40-6534V2 and 99-028KV2 Model: 40-6985 $215.12
Replacement Soft-Sided Carrying Case for 40-6526
Replacement Soft-Sided Carrying Case for 40-6526 Model: 40-6381 $28.22


Product Details

Designed for the advanced laser user, this rotary laser is feature-packed to tackle any job - indoor or outdoor. It self-levels both horizontally and vertically, making vertical layout projects such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 & 800 RPM).



40-6526 Includes > Laser, 4 "C" alkaline batteries, tinted glasses, and soft-sided carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100ft. (+/- 1.0mm/10m)

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 1,500 ft. diameter with detector (included in 40-6529 & 40-6534)

Remote Range:

Up to 200 ft. diameter

Slope:

±5 degrees

Auto-Leveling Range:

±5 degrees

Power Supply:

NiMH rechargeable battery pack and 6.4V adapter (included in 40-6529 &40-6534) or 4"C" alkaline batteries (included in 40-6526)

Battery Life:

Approximately 24 hours with rechargeable battery pack; 40 hours with alkaline batteries

Dimensions:

6.29" x 8.62" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300 & 800 RPM

IP Protection Class:

54

Warranty:

3 Years

Application

The electronically controlled dual-slope mode makes this laser ideal for drainage, flatwork or complex landscaping jobs. The vertical self-leveling mode makes it equally suitable for aligning posts or footings, or indoors to lay out walls or floors. One of Johnson's most advanced rotaries, this model is suitable for use in any rotary application!
