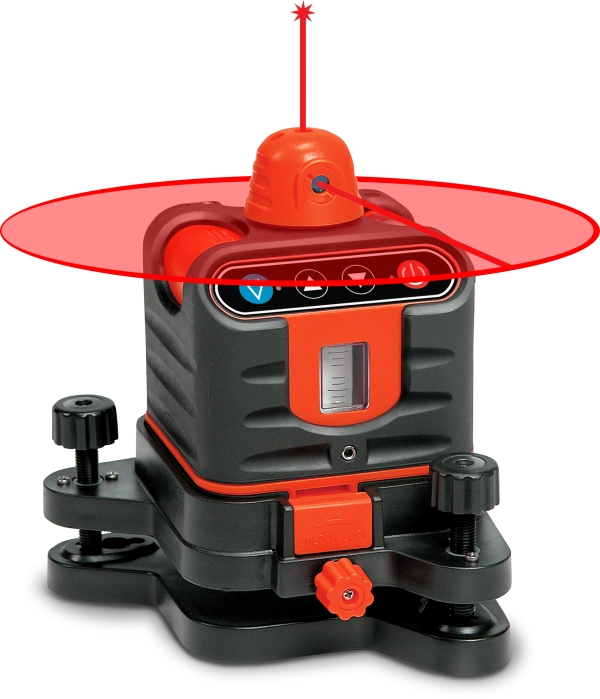

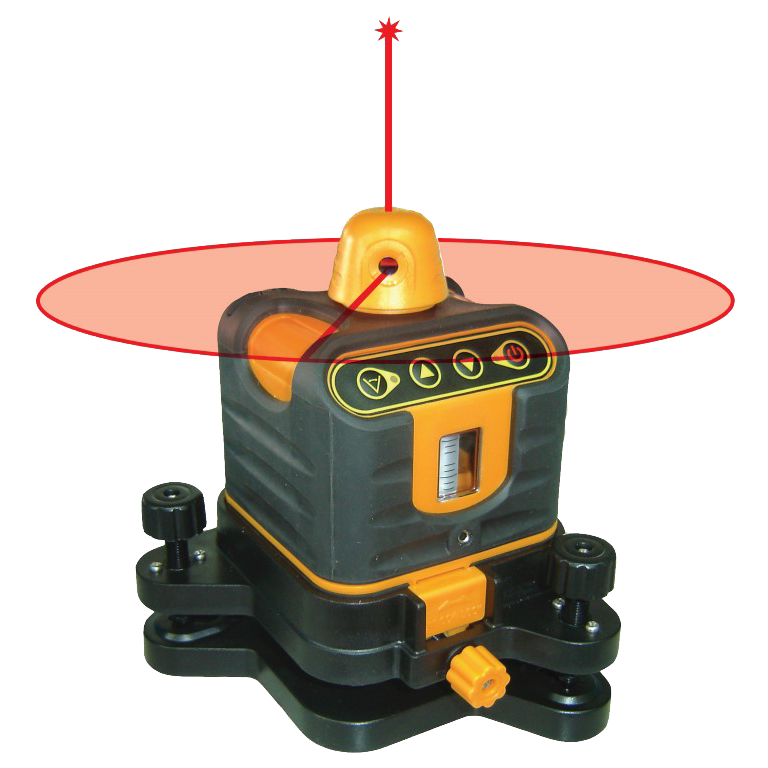

Manual-Leveling Rotary Laser Level Kit
With large and small scan modes that simulate a laser line and a manual-leveling feature in horizontal and vertical planes, this rotary laser is the perfect tool for any number of indoor or outdoor jobs. The rotary also features variable rotational speeds and a scan line that can be moved in either clockwise or counter-clockwise directions, whiles the simultaneous 90° split beam in vertical mode adds versatility. This kit also includes a multi-function mount, wall/ceiling mount, tinted glasses and soft-sided carrying case, ensuring you have everything you need to get your next job up and running!
+ Hover over main image to zoom
Large and small scan modes achieve an accurate chalk line
Manual-leveling in horizontal and vertical planes
Simultaneous 90§ split beam in vertical mode
Scan line can be moved clockwise or counter-clockwise
Variable rotation speed
Rugged housing
40-6507 Kit Includes > Laser, wall/ceiling mount, 4 "AA" alkaline batteries, tinted glasses, and soft-sided carrying case
| Leveling Method: | Manual (Vials) |
|---|---|
| Laser Wavelength: | 635nm±10nm (Red) |
| Laser Classification: | Class Illa |
| Maximum Power Output: | ≤5mW |
| Accuracy: | ±1/4"/100 ft. |
| Interior Range: | Up to 200 ft. diameter depending upon light conditions |
| Exterior Range: | Up to 800 ft. diameter with detector (included in 40-6512) |
| Power Supply: | 4 "AA" alkaline batteries (included) |
| Battery Life: | Approximately 15 hours of continuous use |
| Dimensions: | 6.14" x 5.11" x 5.11" |
| Weight: | 1.65 LBS |
| Working Temperature: | 14°F-113°F |
| Center Screw Thread: | 5/8"-11 |
| Scanning Modes: | 0°, 30° , 60° |
| Rotation Speeds: | 150-300 RPM |
| IP Protection Class: | 54 |
| Warranty: | 3 Years |
This rotary laser kit can be used for any number of indoor and outdoor applications, including checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, aligning and plumb walls, leveling deck floors, setting drainage, terracing and more!
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Rotary Laser Level Instruction Manuals
40-6502/6512 - English
40-6502/6512 - Spanish
40-6502/6512 - French
Other Support
How to Set Up a Rotary Laser Level
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
How to Choose a Rotary Laser Level
How to Calibrate a Rotary Laser Level
How to Use a Rotary Laser Level
How to Choose a Rotary Laser Level for Outdoor Use
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level
Product Details
With large and small scan modes that simulate a laser line and a manual-leveling feature in horizontal and vertical planes, this rotary laser is the perfect tool for any number of indoor or outdoor jobs. The rotary also features variable rotational speeds and a scan line that can be moved in either clockwise or counter-clockwise directions, whiles the simultaneous 90° split beam in vertical mode adds versatility. This kit also includes a multi-function mount, wall/ceiling mount, tinted glasses and soft-sided carrying case, ensuring you have everything you need to get your next job up and running!
40-6507 Kit Includes > Laser, wall/ceiling mount, 4 "AA" alkaline batteries, tinted glasses, and soft-sided carrying case
Specifications
| Leveling Method: | Manual (Vials) |
|---|---|
| Laser Wavelength: | 635nm±10nm (Red) |
| Laser Classification: | Class Illa |
| Maximum Power Output: | ≤5mW |
| Accuracy: | ±1/4"/100 ft. |
| Interior Range: | Up to 200 ft. diameter depending upon light conditions |
| Exterior Range: | Up to 800 ft. diameter with detector (included in 40-6512) |
| Power Supply: | 4 "AA" alkaline batteries (included) |
| Battery Life: | Approximately 15 hours of continuous use |
| Dimensions: | 6.14" x 5.11" x 5.11" |
| Weight: | 1.65 LBS |
| Working Temperature: | 14°F-113°F |
| Center Screw Thread: | 5/8"-11 |
| Scanning Modes: | 0°, 30° , 60° |
| Rotation Speeds: | 150-300 RPM |
| IP Protection Class: | 54 |
| Warranty: | 3 Years |
Application
This rotary laser kit can be used for any number of indoor and outdoor applications, including checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, aligning and plumb walls, leveling deck floors, setting drainage, terracing and more!
