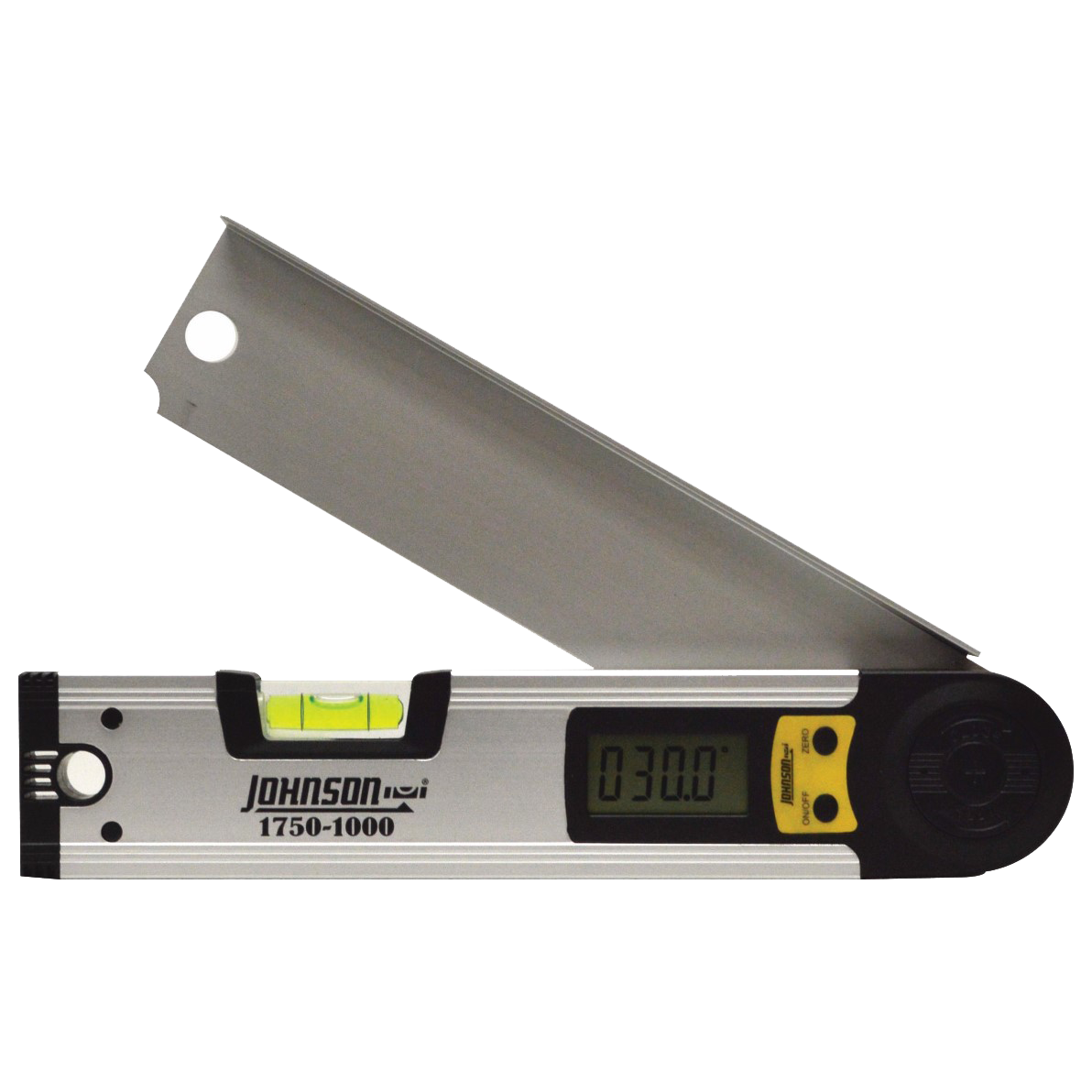

10" Digital Angle Locator
Check and transfer angle measurements easily and accurately with Johnson's 10" digital angle locator. This tool easily measures and clearly displays angles and will make your job go faster, saving you time and money. The digital display shows your angle measurements in degrees from 0° to 225° and gives you the option of taking measurements of absolute or relative angles with the simple press of a button.
+ Hover over main image to zoom
Digitally displays angle
Angle measurements in degrees
Working range of angle measurement 0 to 225ø
Zero button for measurements of absolute or relative angles
Automatic shut-off after 5 minutes without use
1750-1000 Includes > 1 3V CR2032 lithium battery
| Accuracy: | ± 0.3° |
|---|---|
| Resolution: | ± 0.1° |
| Working Range Angle: | 0° to 225° |
| Power Supply: | 1 3V CR2032 lithium battery (included) |
| Battery Life: | Approximately 2,000 hours continuous use |
| Dimensions: | 10" x 1" x 2" (254 x 25 x 50mm) |
| Weight: | 0.435 lbs. (0.198kg) |
| Warranty: | 1 Year Warranty |
| Working Temperature: | 32°F to 104°F |
This 10" digital angle locator is ideal for checking and transferring angles for remodeling, cabinet or counter installation, measuring roof angles, aligning wood forms for concrete pours and much more! It is a must-have for general contractors, builders, carpenters, tile workers and roofers.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Rotary Laser Level Instruction Manual
1750-1000 - English/French/Spanish
Other Support
How to Choose Construction Measuring Tools
Product Details
Check and transfer angle measurements easily and accurately with Johnson's 10" digital angle locator. This tool easily measures and clearly displays angles and will make your job go faster, saving you time and money. The digital display shows your angle measurements in degrees from 0° to 225° and gives you the option of taking measurements of absolute or relative angles with the simple press of a button.
1750-1000 Includes > 1 3V CR2032 lithium battery
Specifications
| Accuracy: | ± 0.3° |
|---|---|
| Resolution: | ± 0.1° |
| Working Range Angle: | 0° to 225° |
| Power Supply: | 1 3V CR2032 lithium battery (included) |
| Battery Life: | Approximately 2,000 hours continuous use |
| Dimensions: | 10" x 1" x 2" (254 x 25 x 50mm) |
| Weight: | 0.435 lbs. (0.198kg) |
| Warranty: | 1 Year Warranty |
| Working Temperature: | 32°F to 104°F |
Application
This 10" digital angle locator is ideal for checking and transferring angles for remodeling, cabinet or counter installation, measuring roof angles, aligning wood forms for concrete pours and much more! It is a must-have for general contractors, builders, carpenters, tile workers and roofers.
