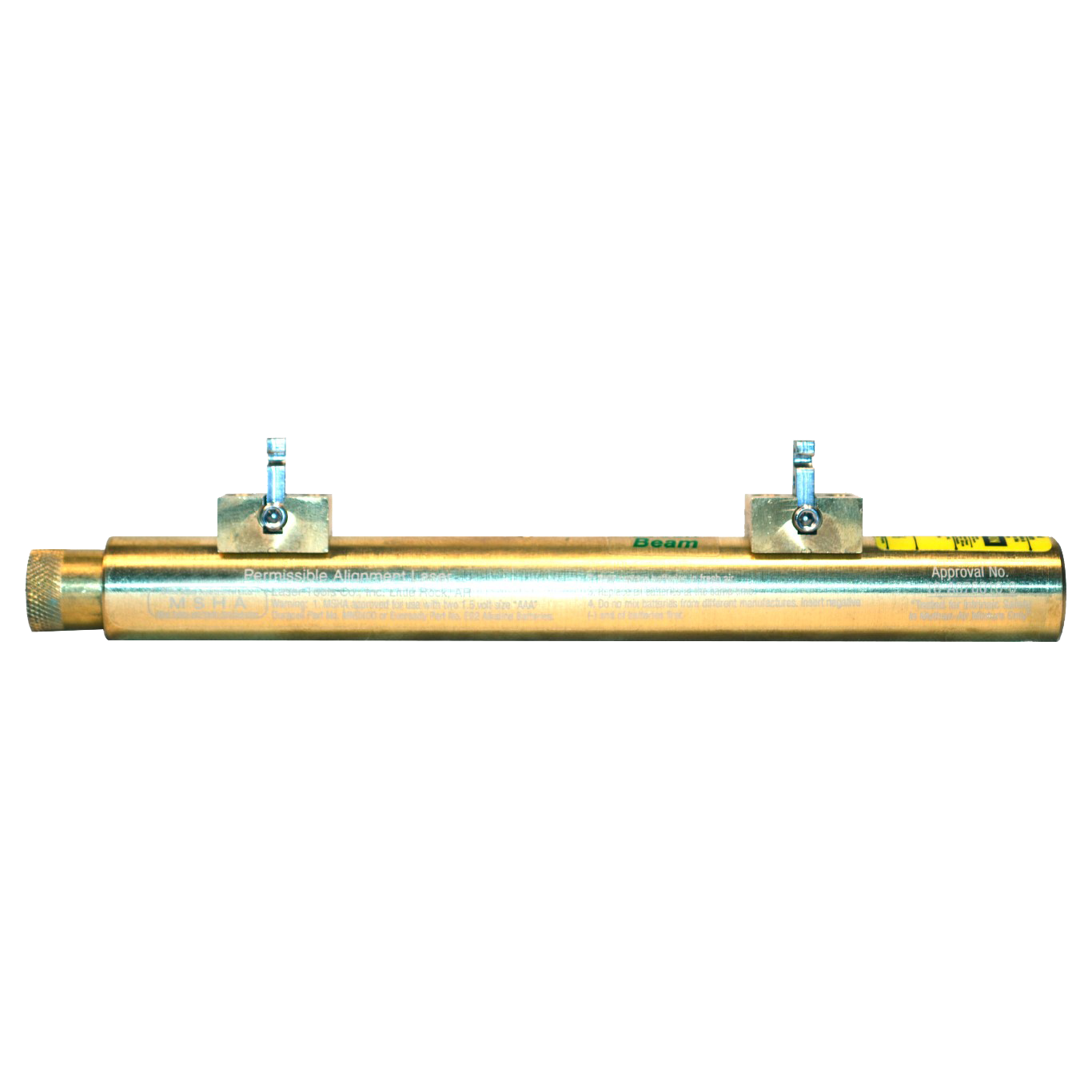

MSHA Mining Alignment Laser with GreenBrite® Technology
Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required, Used in above ground and underground operations - extremely rugged with 2.5mm optics for a small dot at a distance, Green beam is 4 times more visible than red and laser beam is aligned to be concentric with the outside diameter of the brass housing, This allows the installer to use the outside of the case for centering and positioning the beam, Precision beam alignment - self-cleaning threads - no tools required, Milled Flat on bottom - use as an installation laser level, Large 14mm optics - 20 times brighter than standard lasers, "O" ring seal - water and oil proof to IP67 standards and solid brass - proven to work in hard environments. 40-6266 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.
+ Hover over main image to zoomIntrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required
Used in above ground and underground operations - extremely rugged with 2.5mm optics for a small dot at a distance
Green beam is 400% more visible than red beam

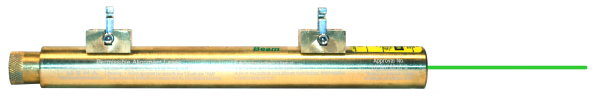

Laser beam is aligned to be concentric with the
Precision beam alignment - self-cleaning threads - no tools required
Large optics - 20 times brighter than standard lasers
"O" ring seal - water and oil proof to IP67 standards
Solid brass - proven to work in harsh environments
Adjustable hanging brackets included - connects to spads directly
40-6266 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries
| Laser Wavelength: | 532nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | 5mw |
| Beam Divergance: | Less than .15 mrad |
| Concentric beam Alignment to Case O.D.: | ±1/8"/100 ft. (±1mm/10m) |
| Interior Range: | Up to 500 ft. (150m) 40-6264 and 1500 ft. (500m) 40-6266 |
| Power Supply: | 2 "AAA" alkaline batteries (included) |
| Battery Life: | Approximately 12 hours |
| Dimensions: | 6.8" x .75" (173 x 19mm) |
| Weight: | 0.69 lbs. (0.13kg) 40-6266 |
| Working Temperature: | 14°F to 122°F (-10°C to 50°C) |
| IP Protection Class: | 67 |
| Warranty: | 1 Year Warranty |
The Johnson Level 40-6260 can be used for the following applications; mining companies (operation of equipment that requires precise alignment to operate properly), align, aim and position parts and machinery, saw mills, CNC machines to align bar feeders, industrial plants, marine work, R&D labs.
Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.
Manuals
Other Johnson Laser Level Support
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level
Product Details
Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required, Used in above ground and underground operations - extremely rugged with 2.5mm optics for a small dot at a distance, Green beam is 4 times more visible than red and laser beam is aligned to be concentric with the outside diameter of the brass housing, This allows the installer to use the outside of the case for centering and positioning the beam, Precision beam alignment - self-cleaning threads - no tools required, Milled Flat on bottom - use as an installation laser level, Large 14mm optics - 20 times brighter than standard lasers, "O" ring seal - water and oil proof to IP67 standards and solid brass - proven to work in hard environments. 40-6266 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.
40-6266 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries
Specifications
| Laser Wavelength: | 532nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | 5mw |
| Beam Divergance: | Less than .15 mrad |
| Concentric beam Alignment to Case O.D.: | ±1/8"/100 ft. (±1mm/10m) |
| Interior Range: | Up to 500 ft. (150m) 40-6264 and 1500 ft. (500m) 40-6266 |
| Power Supply: | 2 "AAA" alkaline batteries (included) |
| Battery Life: | Approximately 12 hours |
| Dimensions: | 6.8" x .75" (173 x 19mm) |
| Weight: | 0.69 lbs. (0.13kg) 40-6266 |
| Working Temperature: | 14°F to 122°F (-10°C to 50°C) |
| IP Protection Class: | 67 |
| Warranty: | 1 Year Warranty |
Application
The Johnson Level 40-6260 can be used for the following applications; mining companies (operation of equipment that requires precise alignment to operate properly), align, aim and position parts and machinery, saw mills, CNC machines to align bar feeders, industrial plants, marine work, R&D labs.
