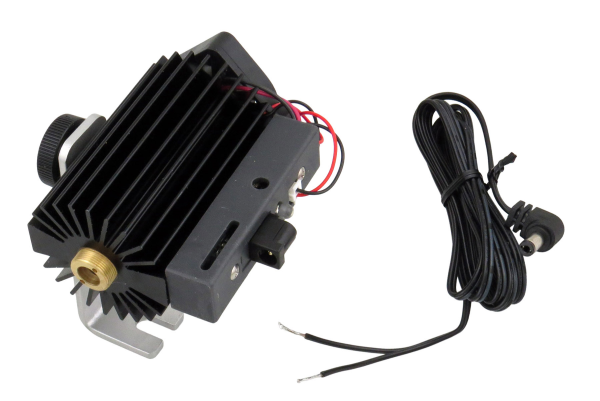

GLX60DC 500mW High Brightness Green Laser Module12-24VDC
The 40-6273 High Brightness Green Laser Module delivers maximum‑intensity laser visibility for precise layout and alignment in demanding industrial environments. Engineered for use in bright ambient light, this powerful green laser line generator produces crisp, clearly defined lines up to 100' for conveyor alignment, floor striping, and designated pathways—eliminating the need for paint and tape on warehouse floors. Operating on 12-24V DC at just 6 watts, the module provides consistent performance indoors and remains visible outdoors in low‑light, rain, snow, and overcast conditions. An external cooling fan supports reliable operation in high ambient temperatures, while the included mounting bracket allows fast installation and doubles as a heat sink for enhanced thermal management. A built‑in beam‑on indicator enables easy verification during remote operation, making this a durable, high‑performance solution for permanent alignment and visual guidance applications.
+ Hover over main image to zoomMaximum brightness green laser line generator module for improved viewing
Use in bright ambient light conditions indoors for conveyor alignment, floor striping and pathways
Replace paint and tape on warehouse floors
Draw 100' lines
Visible outdoors in low light, rain, snow, and overcast conditions
12-14VDC operation @ 6W
External fan provides cooling for high ambient temperature operation
Includes mounting bracket for fast installation and heat sink operation
Beam on indicator for remote operation verification
40-6273 Includes> Mounting bracket, 1/4"-20 mounting hardware, 5' power cord with flying leads, 90° line generator
| Laser Wavelength: | 520nm+10nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | <5mW |
| Accuracy: | 60° angle accuracy +0.5° |
| Working Range: | Up to 500' |
| Working Temperature: | 14°F to 122°F |
| IP Protection Class: | IP65 |
| Warranty: | 1 Year Warranty |
High brightness laser module that produces a bright green laser line used for pathways in warehouses, layouts and alignment replacing paint and tape on floors and decks. Used indoors and outdoors.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6269_40-6271_40-6272_40-6273_GLX60AC_GLX60AC Manual
40-6269_40-6271_40-6272_40-6273_GLX60AC_GLX60DC Bracket Manual
40-6269_40-6271_40-6272_40-6373_GLX60AC_GLX60DC Docking Manual
More Laser Level Support
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level
Product Details
The 40-6273 High Brightness Green Laser Module delivers maximum‑intensity laser visibility for precise layout and alignment in demanding industrial environments. Engineered for use in bright ambient light, this powerful green laser line generator produces crisp, clearly defined lines up to 100' for conveyor alignment, floor striping, and designated pathways—eliminating the need for paint and tape on warehouse floors. Operating on 12-24V DC at just 6 watts, the module provides consistent performance indoors and remains visible outdoors in low‑light, rain, snow, and overcast conditions. An external cooling fan supports reliable operation in high ambient temperatures, while the included mounting bracket allows fast installation and doubles as a heat sink for enhanced thermal management. A built‑in beam‑on indicator enables easy verification during remote operation, making this a durable, high‑performance solution for permanent alignment and visual guidance applications.
40-6273 Includes> Mounting bracket, 1/4"-20 mounting hardware, 5' power cord with flying leads, 90° line generator
Specifications
| Laser Wavelength: | 520nm+10nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | <5mW |
| Accuracy: | 60° angle accuracy +0.5° |
| Working Range: | Up to 500' |
| Working Temperature: | 14°F to 122°F |
| IP Protection Class: | IP65 |
| Warranty: | 1 Year Warranty |
Application
High brightness laser module that produces a bright green laser line used for pathways in warehouses, layouts and alignment replacing paint and tape on floors and decks. Used indoors and outdoors.
