GLX60AC 500mW LD Green Laser Docking System 110AC

MODEL #:  40-6269

The Green Laser Docking System provides highly visible, eye‑safe laser guidance to improve trailer centering and docking safety in even the most challenging environments. Powered by standard 110 VAC, this robust system uses bright green laser guide lights that remain clearly visible in most lighting conditions and can be seen on mud, rain‑soaked surfaces, snow, low‑light, overcast, and evening conditions. Two high‑brightness green laser emitters, one mounted on each side of the dock can be seen in direct sunlight and project parallel laser lines from the dock bumpers to clearly define the safe backing lane while adding protective visual boundaries. Bright emission lights integrated into the dock bumpers enhance visibility, while reflected laser light allows drivers to easily see alignment cues in wing mirrors when reversing on ramps or tarmac. Housed in durable steel enclosures for environmental protection, this docking system is ideal for covered terminals, tight quarters, and hard‑to‑manage docking areas—delivering dependable guidance, increased safety, and greater docking efficiency.

40-6269+ Hover over main image to zoom
40-6269

  • Eye visible, green laser guide lights can be seen by the truck driver over 150' away when backing down

  • Can be used in most lighting conditions

  • Operates from 110AC and is eye safe

  • Viewable in mud, rain, snow, low light, overcast and evening light conditions

  • Bright emission lights on side of dock bumpers visible in direct sunlight

  • Driver sees reflected light in wing mirrors on ramps and tarmac for trailer centering to dock while backing down

  • High brightness, green lasers emit laser lines from the sides of the dock bumpers for protection

  • Steel enclosures are included for environmental protection

  • Two laser emitters are included, one for each side of the dock to emit parallel laser lines

  • Used as guide beams in covered terminals and hard to manage tight quarters

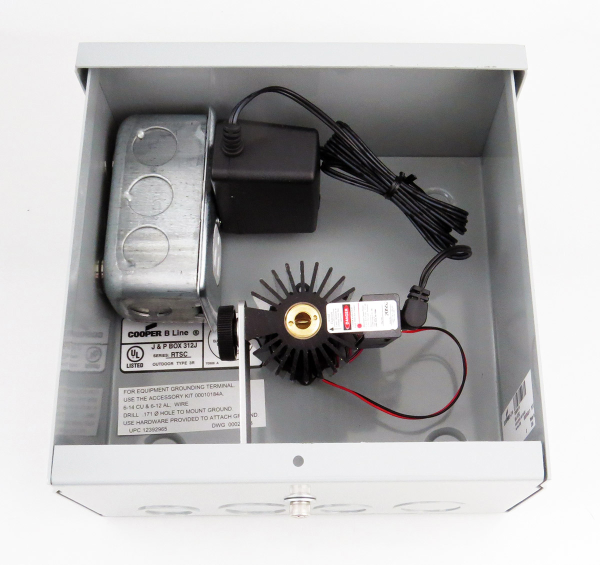

40-6269 Includes> Steel enclosure, mounting bracket, 110V AC adapter, 110V AC plug in receptacle, 90° line generator

Laser Wavelength:

520nm+10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

<5mW

Accuracy:

60° angle accuracy +0.5°

Working Range:

Up to 500'

Working Temperature:

14°F to 122°F

IP Protection Class:

IP65

Warranty:

1 Year Warranty

Laser docking system producing two parallel laser lines that help drivers center trailer to docks on freight terminals, freight docks, and freight delivery ramps.

Product Details

The Green Laser Docking System provides highly visible, eye‑safe laser guidance to improve trailer centering and docking safety in even the most challenging environments. Powered by standard 110 VAC, this robust system uses bright green laser guide lights that remain clearly visible in most lighting conditions and can be seen on mud, rain‑soaked surfaces, snow, low‑light, overcast, and evening conditions. Two high‑brightness green laser emitters, one mounted on each side of the dock can be seen in direct sunlight and project parallel laser lines from the dock bumpers to clearly define the safe backing lane while adding protective visual boundaries. Bright emission lights integrated into the dock bumpers enhance visibility, while reflected laser light allows drivers to easily see alignment cues in wing mirrors when reversing on ramps or tarmac. Housed in durable steel enclosures for environmental protection, this docking system is ideal for covered terminals, tight quarters, and hard‑to‑manage docking areas—delivering dependable guidance, increased safety, and greater docking efficiency.



40-6269 Includes> Steel enclosure, mounting bracket, 110V AC adapter, 110V AC plug in receptacle, 90° line generator

Specifications

Laser Wavelength:

520nm+10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

<5mW

Accuracy:

60° angle accuracy +0.5°

Working Range:

Up to 500'

Working Temperature:

14°F to 122°F

IP Protection Class:

IP65

Warranty:

1 Year Warranty

Application

Laser docking system producing two parallel laser lines that help drivers center trailer to docks on freight terminals, freight docks, and freight delivery ramps.
