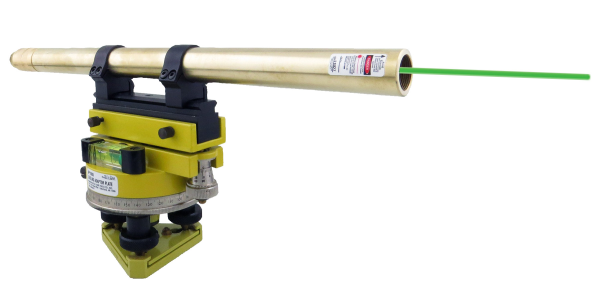

SE-10 Solar Energy Green Installation System
The 40-6268 Solar Energy Green Installation System is a complete, portable green laser solution engineered for fast, precise alignment and height measurement during solar installations. Designed for pile or tripod mounting, this system provides up to 500' of accurate alignment for solar panel bracketry and rails, with a long‑distance green laser beam capable of shooting over 1,000' for grade and slope reference. A magnetic mounting base plate allows direct attachment to steel piles or commercial rooftops, while the precision leveling adapter plate delivers smooth horizontal and vertical adjustment.
+ Hover over main image to zoom
Complete green laser system with portable case for pile alignment and height measurements
Pile or tripod mounting for 500' alignment of solar panel bracketry and rials
Magnetic mounting base plate for directly mounting to steel piles or commercial roofs
Long distance green laser beam used for grade and slope reference can shoot over 1,000'
Leveling adapter plate provide horizontal and vertical adjustment precision
Stable mounting platform for +1/8" accuracy over 100'
Rain and moisture resistant laser and leveling adapter assembly
AA battery operation so service support not required
Horizontal degree scale, vertical micrometer and .1 Deg. Vernier with 30 arc min. back lit level vial
Can operate in cold and hot weather
40-6268 Includes> Leveling adapter plate, 1" Ring Set, magnetic mounting base plate, 6 "AA" alkaline batteries, carrying case
| Laser Wavelength: | 520nm+10nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | <5mW |
| Accuracy: | ±1/8"/100' concentric beam alignment to case O.D. |
| Working Range: | 1,000'+ |
| Power Supply: | 6 "AA" alkaline batteries (included) |
| Battery Life: | 60 hours |
| Working Temperature: | 14°F to 122°F |
| IP Protection Class: | IP67 |
| Warranty: | 1 Year Warranty |
Can be used for the installation of pylon, piles, bracketry, rails and torsion bars to support solar panel installation including tracking systems for renewable energy systems.
