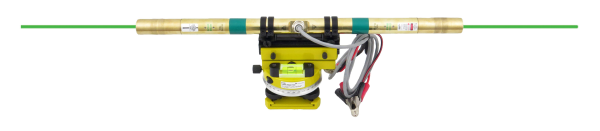

SE-20 Solar Tracking Green Alignment Laser System
Johnson’s Solar Tracking Green Alignment Laser System delivers fast, precise alignment for solar installations and ensures accurate positioning of pylons, piles, bearings, and slew motors before permanent placement. Dual high‑visibility green laser beams provide a clear reference line even in direct sunlight, while the precision grade and slope leveling adapter and vertical micrometer deliver exceptional control and reliability. Sun‑powered operation eliminates the need for replaceable batteries, with an included SLA backup battery for cloudy conditions, and an integrated solar cell for easy charging on the jobsite. Reduce installation time, improve accuracy, and ensure proper alignment at the beginning of every solar installation.
+ Hover over main image to zoom
Faster and more accurate installation saves time
Aligns pylons, piles, bearings and slew motors
Laser reference line ensures correct alignment at the beginning of the install
Sun powered so replaceable batteries are not required
SLA battery included for operation on cloudy days
Solar cell attached to case for easy exposure to sun
Dual green laser beams for direct sunlight visibility
Precision control of alignment with grade and slope leveling adapter
Vertical micrometer is accurate to +1/8"/100'
Solid brass laser case is waterproof
Less than +1/4" beam deviation over 100' when pile mounted
40-6267 Includes > Leveling adapter plate, 1" ring set, magnetic mounting base plate, 14.2V 10W solar cell, RoHS compliant 12V battery, carrying case
| Laser Wavelength: | 520nm+10nm (Green) |
|---|---|
| Laser Classification: | Class IIIa |
| Maximum Power Output: | <5mW |
| Accuracy: | ±1/8"/100' concentric beam alignment to case O.D. |
| Working Range: | 1,000'+ |
| Power Supply: | 12V RoHS Compliant SLA (Sealed Lead Acid) |
| Battery Life: | 1 week |
| Working Temperature: | 14°F to 122°F |
| IP Protection Class: | IP67 |
| Warranty: | 1 Year Warranty |
Can be used for the installation of pylon, piles, bracketry, rails and torsion bars to support solar panel installation including tracking systems for renewable energy systems.
