Electronic Self-Leveling Pipe Laser with GreenBrite® Technology

MODEL #:  40-6698

Johnson's ultra-bright green beam pipe laser offers high accuracy of +1/16"/100'.  Its compact design provides easy and efficient set-up for smaller pipe and sewer installations with a range of 2000'.  The enclosed solid metal nitrogen-purged housing provides complete protection from wet work underground environments.  Comes with infrared remote control for working over long distances, as well as multiple leg and target sets for maximum versatility.

+ Hover over main image to zoom
  • GreenBrite® Technology - 400% more visible than red lasers

  • Large, illuminated OLED display makes information easy to see and use

  • Easy grade input to enter by individual digit for quick set-up changes

  • Infrared remote control works over long distances providing real time data between remote and pipe laser

  • Battery indicator monitors battery level in rechargeable battery pack

  • Sleep mode turns off laser beam and display from remote

  • IP68 and enclosed in a solid metal nitrogen-purged housing to withstand the roughest jobsite when exposed to wet work environments

  • Use with optional trivet stand (sold separately)

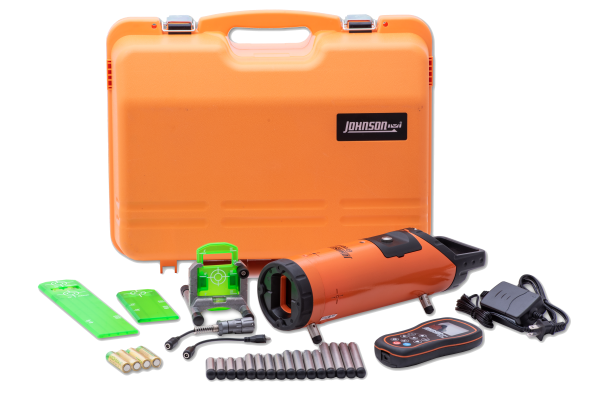

40-6698 Includes: Laser, Li-ion battery and charger, remote control with 4 "AA" alkaline batteries, three targets with stand, USB adapter, AC adapter, 4 leg sets, and hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+1/16"/100'

Self-Leveling Range:

+10°

Power Supply:

Li-ion

Battery Life:

24 hours

Working Temperature:

-4°F to 122°F

Tripod Thread:

5/8"-11

IP Protection Class:

IP68 nitrogen purged

Warranty:

3 Year Warranty

This pipe laser is the ideal tool for installing storm, sanitary or other gravity-flow drainage pipe.  This laser is also designed for tunneling, boring, pipe alignment, or any other application requiring line, elevation, and grade control.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 7AM-5PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6698 Instruction Manual

Replacement 10"/250mm Leg for 40-6698 Model: 40-6409 $46.44
Replacement 12"/300mm Leg for 40-6698 Model: 40-6411 $55.04
Replacement 6"/150mm Leg for 40-6698 Model: 40-6406 $34.20
Replacement 8"/200mm Leg for 40-6698 Model: 40-6407 $38.08
Replacement 9"/225mm Leg for 40-6698 Model: 40-6408 $42.28
Replacement AC Adapter for 40-6698 Model: 40-6405 $20.16
Replacement Hard-Shell Carrying Case for 40-6698 Model: 40-6308 $190.48
Replacement Large Target for 40-6698 Model: 40-6403 $23.04
Replacement Li-on Charger for 40-6698 Model: 40-6399 $30.16
Replacement Li-on Rechargeable Battery Pack for 40-6698 Model: 40-6398 $312.88
Replacement Medium Target for 40-6698 Model: 40-6402 $18.28
Replacement Remote Control for 40-6698 Model: 40-6384 $280.72
Replacement Small Target for 40-6698 Model: 40-6401 $13.72
Replacement Target Stand for 40-6698 Model: 40-6400 $31.76
Replacement USB Adapter for 40-6698 Model: 40-6404 $20.16


Product Details

Johnson's ultra-bright green beam pipe laser offers high accuracy of +1/16"/100'.  Its compact design provides easy and efficient set-up for smaller pipe and sewer installations with a range of 2000'.  The enclosed solid metal nitrogen-purged housing provides complete protection from wet work underground environments.  Comes with infrared remote control for working over long distances, as well as multiple leg and target sets for maximum versatility.



40-6698 Includes: Laser, Li-ion battery and charger, remote control with 4 "AA" alkaline batteries, three targets with stand, USB adapter, AC adapter, 4 leg sets, and hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+1/16"/100'

Self-Leveling Range:

+10°

Power Supply:

Li-ion

Battery Life:

24 hours

Working Temperature:

-4°F to 122°F

Tripod Thread:

5/8"-11

IP Protection Class:

IP68 nitrogen purged

Warranty:

3 Year Warranty

Application

This pipe laser is the ideal tool for installing storm, sanitary or other gravity-flow drainage pipe.  This laser is also designed for tunneling, boring, pipe alignment, or any other application requiring line, elevation, and grade control.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 7AM-5PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6698 Instruction Manual

Replacement Parts

Replacement 10"/250mm Leg for 40-6698 Model: 40-6409 $46.44
Replacement 12"/300mm Leg for 40-6698 Model: 40-6411 $55.04
Replacement 6"/150mm Leg for 40-6698 Model: 40-6406 $34.20
Replacement 8"/200mm Leg for 40-6698 Model: 40-6407 $38.08
Replacement 9"/225mm Leg for 40-6698 Model: 40-6408 $42.28
Replacement AC Adapter for 40-6698 Model: 40-6405 $20.16
Replacement Hard-Shell Carrying Case for 40-6698 Model: 40-6308 $190.48
Replacement Large Target for 40-6698 Model: 40-6403 $23.04
Replacement Li-on Charger for 40-6698 Model: 40-6399 $30.16
Replacement Li-on Rechargeable Battery Pack for 40-6698 Model: 40-6398 $312.88
Replacement Medium Target for 40-6698 Model: 40-6402 $18.28
Replacement Remote Control for 40-6698 Model: 40-6384 $280.72
Replacement Small Target for 40-6698 Model: 40-6401 $13.72
Replacement Target Stand for 40-6698 Model: 40-6400 $31.76
Replacement USB Adapter for 40-6698 Model: 40-6404 $20.16
