JLX® Self-Leveling 180° Cross-Line Laser with GreenBrite® Technology

MODEL #:  40-6681

Johnson crafted the JLX® series of products to meet the demands and exceed the expectations of professionals, and the 40-6681 is no exception. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. It projects a cross-line with 180° coverage on the horizontal beam. With the included magnetic base, magnetic target, Lithium Ion battery and charger, and alkaline battery compartment, this kit comes with everything you'll need to get your job up and running!

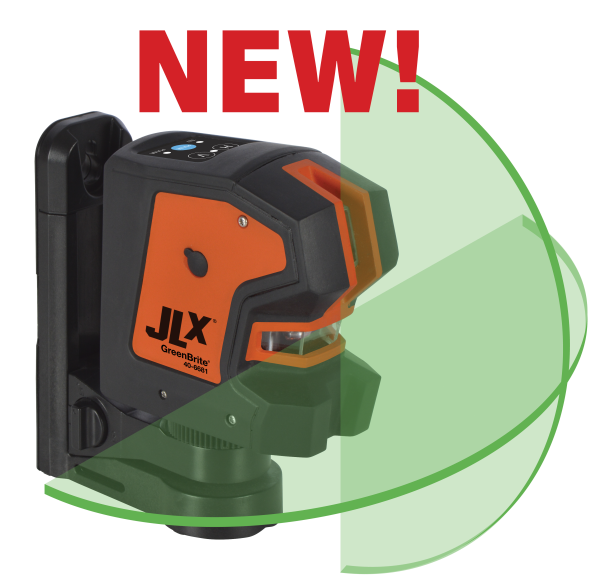

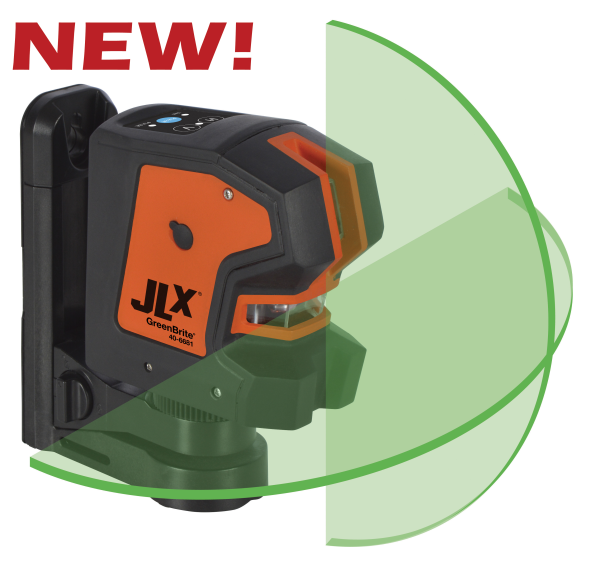

40-6681 w beam+ Hover over main image to zoom
40-6681 w beam
40-6681 main
40-6681 kit
40-6681 alt
  • GreenBrite® Technology - 400% more visible than red lasers

  • Includes li-ion rechargeable battery pack

  • Cross-line with 180° coverage on the horizontal beam

  • Pulse mode for use with line detector (sold separately)

  • Pendulum lock protects laser during transport

  • IP54 dust and water resistant construction

40-6681 Includes > Green laser with magnetic base, magnetic target, li-ion battery and charger, alkaline battery compartment (alkaline batteries not included), hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/35'

Interior Range:

Up to 200 ft, (Detector range up to 75 ft. Exterior)

Self-Leveling Range:

±3°

Power Supply:

4 "AA" alkaline batteries (not included); Li-ion rechargable battery pack (included)

Working Temperature:

14°F to 113°F

Battery Life:

6 Hours Li-ion

IP Protection Class:

IP 54

Tripod Thread:

1/4"- 20

Warranty:

3 Year Warranty

Johnson's 40-6681 is a versatile tool that you'll find useful for any number of leveling project, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6681 English Manual

Product Details

Johnson crafted the JLX® series of products to meet the demands and exceed the expectations of professionals, and the 40-6681 is no exception. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. It projects a cross-line with 180° coverage on the horizontal beam. With the included magnetic base, magnetic target, Lithium Ion battery and charger, and alkaline battery compartment, this kit comes with everything you'll need to get your job up and running!



40-6681 Includes > Green laser with magnetic base, magnetic target, li-ion battery and charger, alkaline battery compartment (alkaline batteries not included), hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/35'

Interior Range:

Up to 200 ft, (Detector range up to 75 ft. Exterior)

Self-Leveling Range:

±3°

Power Supply:

4 "AA" alkaline batteries (not included); Li-ion rechargable battery pack (included)

Working Temperature:

14°F to 113°F

Battery Life:

6 Hours Li-ion

IP Protection Class:

IP 54

Tripod Thread:

1/4"- 20

Warranty:

3 Year Warranty

Application

Johnson's 40-6681 is a versatile tool that you'll find useful for any number of leveling project, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6681 English Manual
