JLX® Horizontal/Vertical Tracking Rotary Laser Kit with GreenBrite® Technology

MODEL #:  40-6590I

Johnson's tracking rotary laser simplifies long-distance layout and turns two-person work into a one-person job. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. And it tracks to the detector position - either horizontally or vertically - for simple reference line layout.

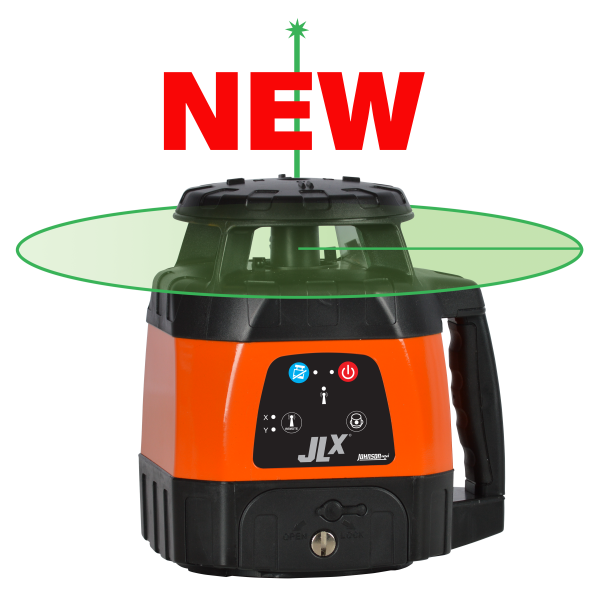

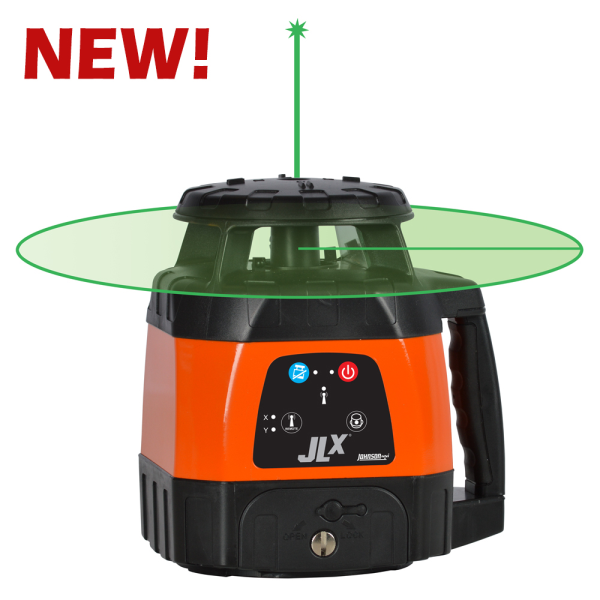

40-6590I beam+ Hover over main image to zoom
40-6590I beam
40-6590I kit
40-6590I ad
40-6590I
  • GreenBrite® Technology - 400% more visible than red lasers

  • Tracks to the detector position for simple reference line layout

  • Horizontal / vertical operation - track in either plane

  • Vertical mode is ideal for layout of walls or forms

  • Slope track / slope match to ±5° in both the X and Y axes

  • Bright, Class 3 green beam laser is the most visible laser for indoor work

  • Tilt indicator alerts operator if the laser is bumped or moved

40-6590I Includes > Laser, NiMH battery and 6.4V charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 4 "AA" alkaline batteries, remote control with 2 "AA" alkaline batteries, tinted glasses, magnetic target, vertical bracket, hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±3/32"/100'

Exterior Range:

Up to 1,500' diameter with detector

Self-Leveling Range:

±5°

Power Supply:

1 NiMH or 4 "C" alkaline batteries

Battery Life:

18 Hours NiMH

16 Hours alkaline

Working Temperature:

32°F to 104°F

Tripod Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300 and 800 RPM

IP Protection Class:

IP54

Warranty:

3 Years

Johnson's 40-6590I tracking rotary laser system is ideal for layout work including framing, drywall track and tilt-up. It is also useful for other interior applications such as drop ceilings, wainscoting, and more.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6590I Instruction Manual

40-6590I Quick Start Guide

Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Charger for 40-6529, 40-6532, 40-6534, 40-6539, 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 40-6662, 99-028k, 40-6590I Model: 40-6838 $37.62
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, 99-028K, and 40-6590I Model: 40-6857 $7.20
Replacement NiMH Rechargeable Battery Pack for 40-6529 and 40-6544
Replacement NiMH Rechargeable Battery Pack for 40-6529, 40-6544, 40-6534, 40-6590, 99-028K, and 40-6590I Model: 40-6383 $63.00


Product Details

Johnson's tracking rotary laser simplifies long-distance layout and turns two-person work into a one-person job. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. And it tracks to the detector position - either horizontally or vertically - for simple reference line layout.



40-6590I Includes > Laser, NiMH battery and 6.4V charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 4 "AA" alkaline batteries, remote control with 2 "AA" alkaline batteries, tinted glasses, magnetic target, vertical bracket, hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±3/32"/100'

Exterior Range:

Up to 1,500' diameter with detector

Self-Leveling Range:

±5°

Power Supply:

1 NiMH or 4 "C" alkaline batteries

Battery Life:

18 Hours NiMH

16 Hours alkaline

Working Temperature:

32°F to 104°F

Tripod Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300 and 800 RPM

IP Protection Class:

IP54

Warranty:

3 Years

Application

Johnson's 40-6590I tracking rotary laser system is ideal for layout work including framing, drywall track and tilt-up. It is also useful for other interior applications such as drop ceilings, wainscoting, and more.
