Self-Leveling Cross and Line Laser Kit with GreenBrite® Technology
![](/Content/homeBtns/logoUnderline.png)

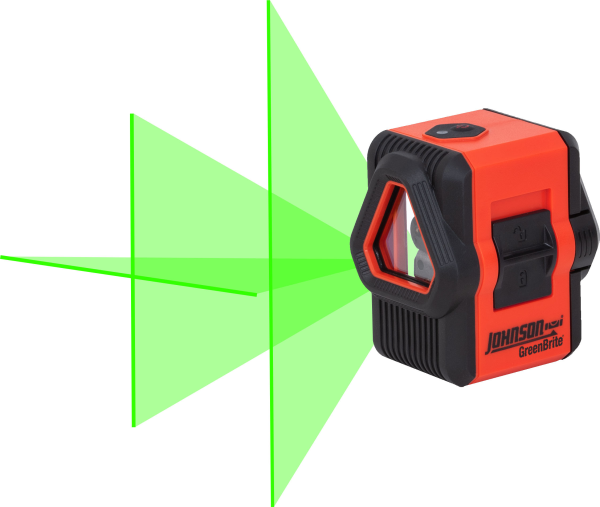

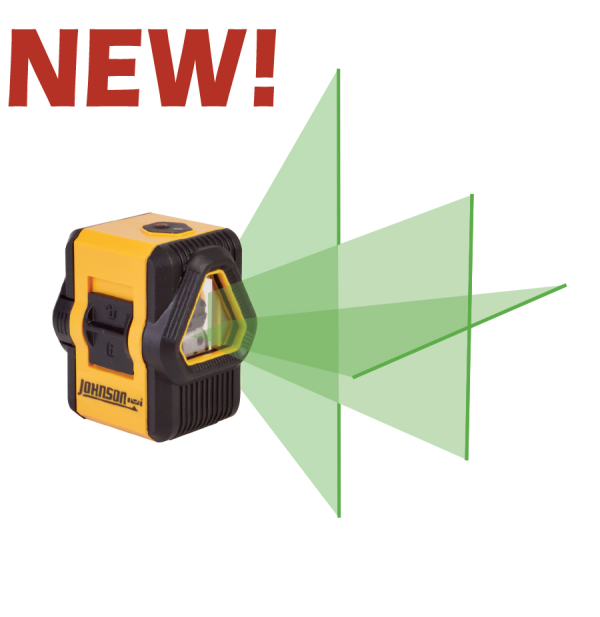

Johnson's 40-6647 self-leveling cross & line laser combines the features of a cross-line laser with an additional 90° plumb line, useful for checking square reference of beams, posts or any other object. It features GreenBrite® technology, making the beams 400% more visible than red beams for working in sunny or brightly lit conditions. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!
![](/Content/files/ProductImages/40-664740-6652 wbeam.png)
![](/Content/files/ProductImages/40-664740-6652 wbeam.png)
![](/Content/files/ProductImages/40-6647 Kit_THSq.jpg)
![](/Content/files/ProductImages/40-6647 retail ad replace or add_THSq.jpg)
![](/Content/files/ProductImages/40-6647_THSq.jpg)
![](/Content/files/ProductImages/40-664740-6612 3_THSq.jpg)
![](/Content/files/ProductImages/40-664740-6612 4_THSq.jpg)
GreenBrite® Technology - 400% more visible than red lasers
1 horizontal and 2 vertical lines at 90°
Pendulum lock protects laser during transport
Visual out-of-level indicator
Manual mode for use at any angle
1/4"-20 tripod thread for use with most common tripods
Ideal for flooring and alignment
40-6647 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
Leveling Method: | Self Leveling (Pendulum) |
---|---|
Laser Wavelength: | 520nm±10nm (Green) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±5/32"/30' |
Interior Range: | Up to 100' |
Self-Leveling Range: | +4° |
Power Supply: | 2 "AA" alkaline batteries |
Battery Life: | 5 Hours |
Working Temperature: | 32°F to 104°F |
IP Protection Class: | IP50 |
The Johnson Level 40-6647 is a must-have for flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, and plumbing & squaring of posts.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6647 Manual
![Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646](/Content/files/ProductImages/40-6993_THL.jpg)
![Replacement Green Tinted Glasses Replacement Green Tinted Glasses](/Content/files/ProductImages/0000000315_THL.png)
![40-6988 40-6988](/Content/files/ProductImages/40-6988_THL.jpg)
Product Details
Johnson's 40-6647 self-leveling cross & line laser combines the features of a cross-line laser with an additional 90° plumb line, useful for checking square reference of beams, posts or any other object. It features GreenBrite® technology, making the beams 400% more visible than red beams for working in sunny or brightly lit conditions. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!
40-6647 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
Specifications
Leveling Method: | Self Leveling (Pendulum) |
---|---|
Laser Wavelength: | 520nm±10nm (Green) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±5/32"/30' |
Interior Range: | Up to 100' |
Self-Leveling Range: | +4° |
Power Supply: | 2 "AA" alkaline batteries |
Battery Life: | 5 Hours |
Working Temperature: | 32°F to 104°F |
IP Protection Class: | IP50 |
Application
The Johnson Level 40-6647 is a must-have for flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, and plumbing & squaring of posts.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6647 Manual
