Self-Leveling 360° Laser w/Plumb Line Kit with GreenBrite® Technology

MODEL #:  40-6607

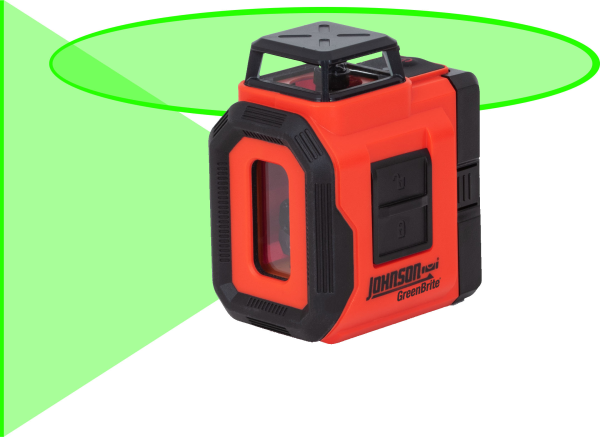

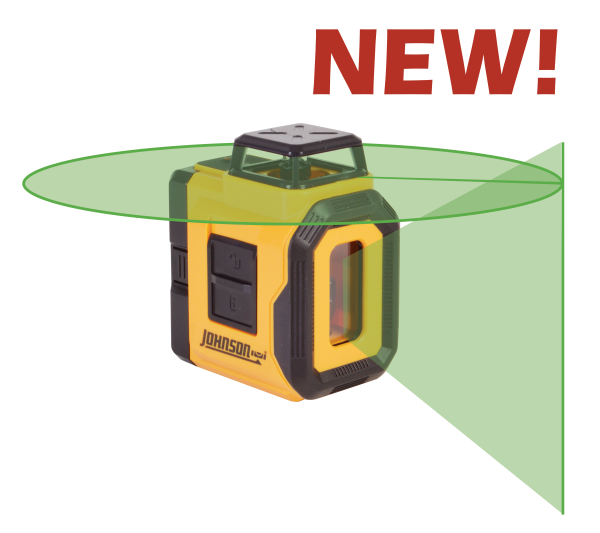

Johnson's 40-6607 Self-Leveling 360° Laser displays a full horizontal line 360 degrees around the tool, plus a plumb layout line that intersects the 360 to help you layout your jobsite quickly and accurately. It features GreenBrite® technology, making the beams 400% more visible than red beams for working in sunny or brightly lit conditions. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!

40-6607 Kit+ Hover over main image to zoom
40-6607 Kit
40-6607
40-6607 Beam
  • GreenBrite® Technology - 400% more visible than red lasers

  • 360° horizontal laser line and 1 vertical line

  • Pendulum lock protects laser during transport

  • Visual out-of-level indicator

  • Manual mode for use at any angle

  • 1/4"-20 tripod thread for use with most common tripods

  • Ideal for carpentry, tile and more

40-6607 Includes > Laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

6 Hours continuous use

Dimensions:

2.3" x 3.6" x 4.2"

Weight:

10.5 oz (without batteries)

Working Temperature:

32°F to 104°F

IP Protection Class:

IP 50

Warranty:

2 Year Warranty

The Johnson Level 40-6607 is an ideal tool for any number of jobs, including layout, piping, post installation, framing, flooring and more! Its 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6607 English Manual

Replacement Green Tinted Glasses
Replacement Green Laser Enhancement Glasses for 40-6601, 40-6612, 40-6647, 40-6607, 40-6641, 40-6688, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6840 $16.58
40-6988
Replacement Green Magnetic Target for 40-6601, 40-6647, 40-6607, 40-6641, 40-6609 and 40-6612 Model: 40-6988 $7.63
Replacement Hard-Shell Carrying Case for 40-6611 and 40-6607 Model: 40-6996 $27.32
Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646 Model: 40-6993 $13.94


Product Details

Johnson's 40-6607 Self-Leveling 360° Laser displays a full horizontal line 360 degrees around the tool, plus a plumb layout line that intersects the 360 to help you layout your jobsite quickly and accurately. It features GreenBrite® technology, making the beams 400% more visible than red beams for working in sunny or brightly lit conditions. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!



40-6607 Includes > Laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

6 Hours continuous use

Dimensions:

2.3" x 3.6" x 4.2"

Weight:

10.5 oz (without batteries)

Working Temperature:

32°F to 104°F

IP Protection Class:

IP 50

Warranty:

2 Year Warranty

Application

The Johnson Level 40-6607 is an ideal tool for any number of jobs, including layout, piping, post installation, framing, flooring and more! Its 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6607 English Manual

Replacement Parts

Replacement Green Tinted Glasses
Replacement Green Laser Enhancement Glasses for 40-6601, 40-6612, 40-6647, 40-6607, 40-6641, 40-6688, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6840 $16.58
40-6988
Replacement Green Magnetic Target for 40-6601, 40-6647, 40-6607, 40-6641, 40-6609 and 40-6612 Model: 40-6988 $7.63
Replacement Hard-Shell Carrying Case for 40-6611 and 40-6607 Model: 40-6996 $27.32
Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646 Model: 40-6993 $13.94
