Self-Leveling 3 Dot Laser Kit with GreenBrite® Technology

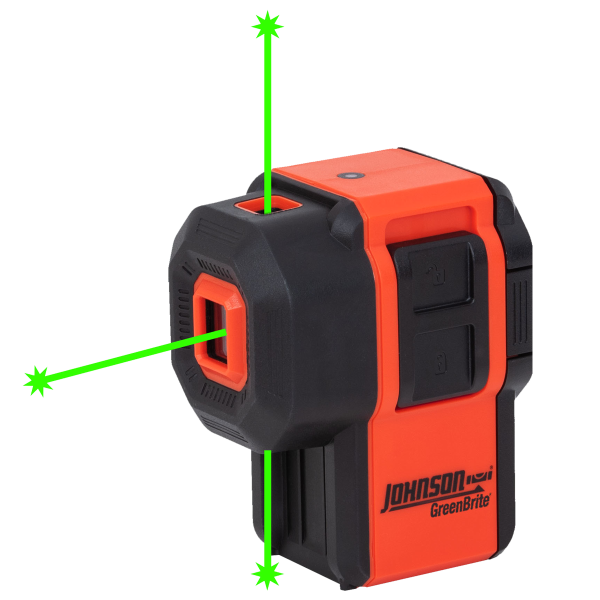

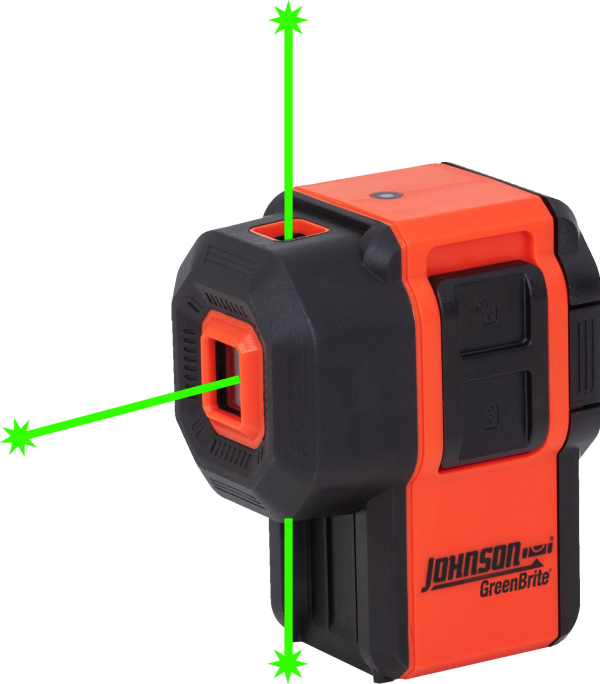

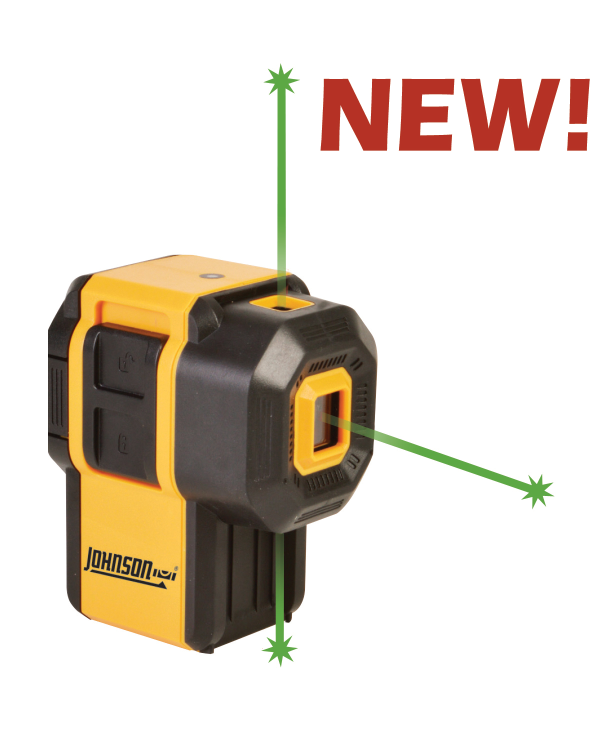

Johnson's self-leveling 3-dot laser offers the accuracy and convenience your next project demands. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. The laser simultaneously projects 3 bright self-leveling beams (plumb up, plumb down and level) for enhanced visibility, making it a versatile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom track installation, and the locking mechanism protects the inner pendulum during transportation. With the included magnetic target, magnetic bracket, and tinted glasses, this laser comes equipped with everything you need to get your job up and running.
+ Hover over main image to zoom
GreenBrite® Technology - 400% more visible than red lasers
Projects 2 plumb dots and 1 level dot
Tall profile for clearance of wood or metal drywall track
Pendulum lock protects laser during transport
Visual out-of-level indicator
1/4"-20 tripod thread for use with most common tripods
40-6641 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
| Leveling Method: | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength: | 520nm±10nm (Green) |
| Laser Classification: | Class II |
| Maximum Power Output: | ≤1mW |
| Accuracy: | ±1/8"/30' |
| Working Range: | Up to 100' |
| Self-Leveling Range: | ±5° |
| Power Supply: | 2 "AA" alkaline batteries (included) |
| Battery Life: | 18 Hours continuous use |
| Dimensions: | 3.6" x 2.6" x 4.5" |
| Weight: | 9.9 oz (without batteries) |
| Working Temperature: | 32°F to 104°F |
| IP Protection Class: | IP50 |
| Warranty: | 2 years |
The Johnson Level 40-6641 laser is perfectly suited for any number of jobs, including layout, piping, post installation, framing, flooring and more! And this level's 3 dot laser beams are ideal for transferring reference points from the floor to the ceiling.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manual English 40-6641
Product Details
Johnson's self-leveling 3-dot laser offers the accuracy and convenience your next project demands. It features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. The laser simultaneously projects 3 bright self-leveling beams (plumb up, plumb down and level) for enhanced visibility, making it a versatile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom track installation, and the locking mechanism protects the inner pendulum during transportation. With the included magnetic target, magnetic bracket, and tinted glasses, this laser comes equipped with everything you need to get your job up and running.
40-6641 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case
Specifications
| Leveling Method: | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength: | 520nm±10nm (Green) |
| Laser Classification: | Class II |
| Maximum Power Output: | ≤1mW |
| Accuracy: | ±1/8"/30' |
| Working Range: | Up to 100' |
| Self-Leveling Range: | ±5° |
| Power Supply: | 2 "AA" alkaline batteries (included) |
| Battery Life: | 18 Hours continuous use |
| Dimensions: | 3.6" x 2.6" x 4.5" |
| Weight: | 9.9 oz (without batteries) |
| Working Temperature: | 32°F to 104°F |
| IP Protection Class: | IP50 |
| Warranty: | 2 years |
Application
The Johnson Level 40-6641 laser is perfectly suited for any number of jobs, including layout, piping, post installation, framing, flooring and more! And this level's 3 dot laser beams are ideal for transferring reference points from the floor to the ceiling.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manual English 40-6641
Replacement Parts
