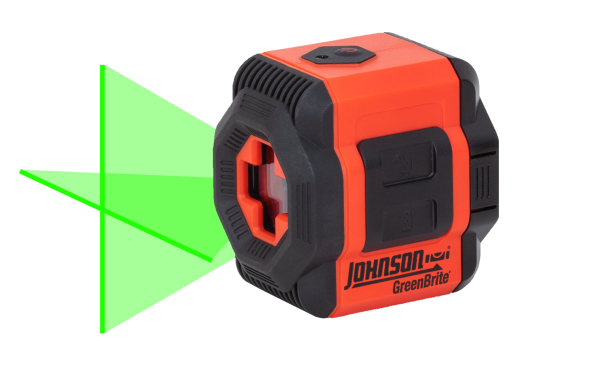

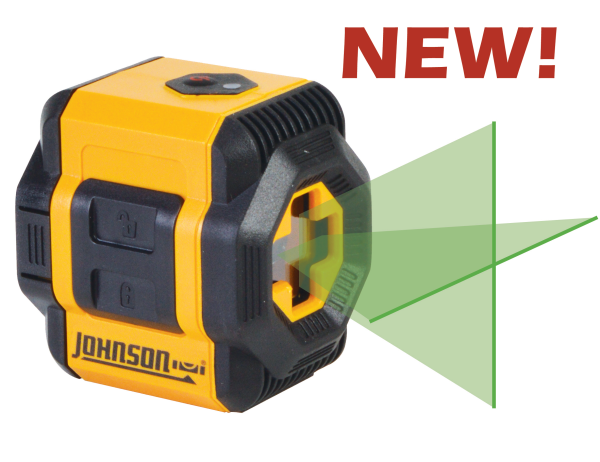

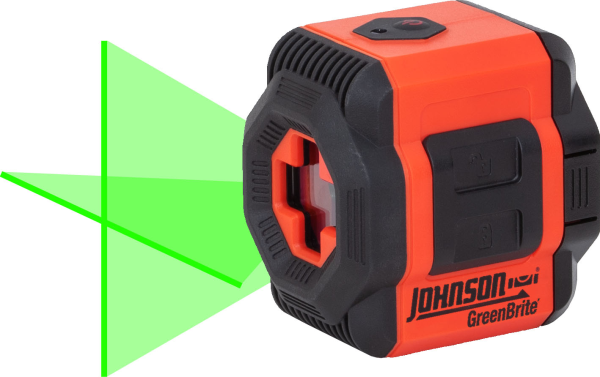

Self-Leveling Cross-Line Laser Kit with GreenBrite® Technology

MODEL #:  40-6601

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile and easy to use. Johnson's self-leveling cross-line laser features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. It projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. It also features a manual mode for use at any angle for working on stairs or other non-level projects. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With a magnetic target, magnetic bracket, and tinted glasses, this kit has all you'll need to get your laser leveling project started.

+ Hover over main image to zoom
  • GreenBrite® Technology - 400% more visible than red lasers

  • Vertical and horizontal laser lines

  • Manual mode for use at any angle

  • Pendulum lock protects laser during transport

  • Visual out-of-level indicator

  • 1/4"-20 tripod thread for use with most common tripods

40-6601 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries

Battery Life:

9 Hours

Working Temperature:

32°F to 104°F

IP Protection Class:

IP50

Johnson's 40-6601 cross-line laser is a versatile tool that you'll find useful for any number of leveling projects, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more. The 40-6601 laser's GreenBrite® technology makes the beam 400% more visible than red beams for working in sunny or brightly lit conditions.

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6601 Manual

Replacement Hard-Shell Carrying Case for 40-6605 and 40-6601 Model: 40-6995 $27.32
Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646 Model: 40-6993 $13.94
Replacement Green Tinted Glasses
Replacement Green Laser Enhancement Glasses for 40-6601, 40-6612, 40-6647, 40-6607, 40-6641, 40-6688, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6840 $16.58
40-6988
Replacement Green Magnetic Target for 40-6601, 40-6647, 40-6607, 40-6641, 40-6609 and 40-6612 Model: 40-6988 $7.63


Product Details

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile and easy to use. Johnson's self-leveling cross-line laser features GreenBrite® technology, making the beam 400% more visible than red beams for working in sunny or brightly lit conditions. It projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. It also features a manual mode for use at any angle for working on stairs or other non-level projects. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With a magnetic target, magnetic bracket, and tinted glasses, this kit has all you'll need to get your laser leveling project started.



40-6601 Includes > Green laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries

Battery Life:

9 Hours

Working Temperature:

32°F to 104°F

IP Protection Class:

IP50

Application

Johnson's 40-6601 cross-line laser is a versatile tool that you'll find useful for any number of leveling projects, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work, flooring, drywall track/stud wall installation and more. The 40-6601 laser's GreenBrite® technology makes the beam 400% more visible than red beams for working in sunny or brightly lit conditions.

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6601 Manual

Replacement Parts

Replacement Hard-Shell Carrying Case for 40-6605 and 40-6601 Model: 40-6995 $27.32
Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646 Model: 40-6993 $13.94
Replacement Green Tinted Glasses
Replacement Green Laser Enhancement Glasses for 40-6601, 40-6612, 40-6647, 40-6607, 40-6641, 40-6688, 40-6543, 40-6544, 40-6590, 40-6590I, 40-6540, 40-6545, 40-6546, 40-6547, 40-6548 and 40-6640 Model: 40-6840 $16.58
40-6988
Replacement Green Magnetic Target for 40-6601, 40-6647, 40-6607, 40-6641, 40-6609 and 40-6612 Model: 40-6988 $7.63
