6" Magnetic Digital Level

MODEL #:  40-6060

A digital level is an essential tool for any tradesman, and Johnson's 6" magnetic digital level has the accuracy and ease of use your jobsite demands. It features powerful GripTight™ rare earth magnets that adhere to ferrous metal surfaces. Its backlight display ensures the measurements are easy to read even in dimly lit conditions. And the measurement readings will automatically invert for convenience when you are taking overhead measurements. The level has audible level and plumb indicators for ease of use, and calibrating the tool is quick and easy at the press of a button. The level comes with a soft-sided pouch to keep your tool clean and safe when not in use.

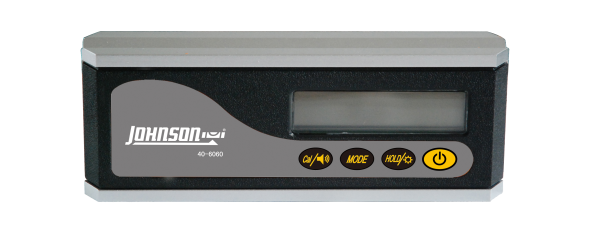

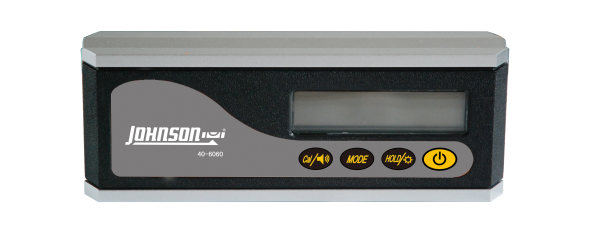

40-6060 main+ Hover over main image to zoom
40-6060 main
40-6060 kit
  • 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)

  • Automatic digit inversion for overhead measurements

  • Backlight for easy-read in dimly lit work environment

  • Powerful GripTight™ rare earth magnets hold to ferrous metal surfaces

  • Push button calibration

  • Audible indicator at 0° and 90°

40-6060 Includes > Magnetic digital level, 3 "AAA" alkaline batteries, and soft-sided pouch

Accuracy:

±0.1° for 0° and 90°, and ±0.2° for 1° to 89°

Working Range:

0 to 90 degrees

Resolution:

±0.1°, 0.1%, 1/8", 0.02", 1.7mm

Working Temperature:

14°F-113°F

Tripod Thread:

1/4"-20

IP Protection Class:

IP54

Warranty:

3 Year Warranty

This level is perfectly suited for any number of indoor and outdoor jobs, including jobsite prep, grading, piping, ramp installation, landscaping, concrete formwork and more! This digital level's strong magnets make it the preferred choice when your project involves ferrous metals, such as working with steel studs or steel reinforced concrete.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instuction Manual

40-6060 - English

Product Details

A digital level is an essential tool for any tradesman, and Johnson's 6" magnetic digital level has the accuracy and ease of use your jobsite demands. It features powerful GripTight™ rare earth magnets that adhere to ferrous metal surfaces. Its backlight display ensures the measurements are easy to read even in dimly lit conditions. And the measurement readings will automatically invert for convenience when you are taking overhead measurements. The level has audible level and plumb indicators for ease of use, and calibrating the tool is quick and easy at the press of a button. The level comes with a soft-sided pouch to keep your tool clean and safe when not in use.



40-6060 Includes > Magnetic digital level, 3 "AAA" alkaline batteries, and soft-sided pouch

Specifications

Accuracy:

±0.1° for 0° and 90°, and ±0.2° for 1° to 89°

Working Range:

0 to 90 degrees

Resolution:

±0.1°, 0.1%, 1/8", 0.02", 1.7mm

Working Temperature:

14°F-113°F

Tripod Thread:

1/4"-20

IP Protection Class:

IP54

Warranty:

3 Year Warranty

Application

This level is perfectly suited for any number of indoor and outdoor jobs, including jobsite prep, grading, piping, ramp installation, landscaping, concrete formwork and more! This digital level's strong magnets make it the preferred choice when your project involves ferrous metals, such as working with steel studs or steel reinforced concrete.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instuction Manual

40-6060 - English
