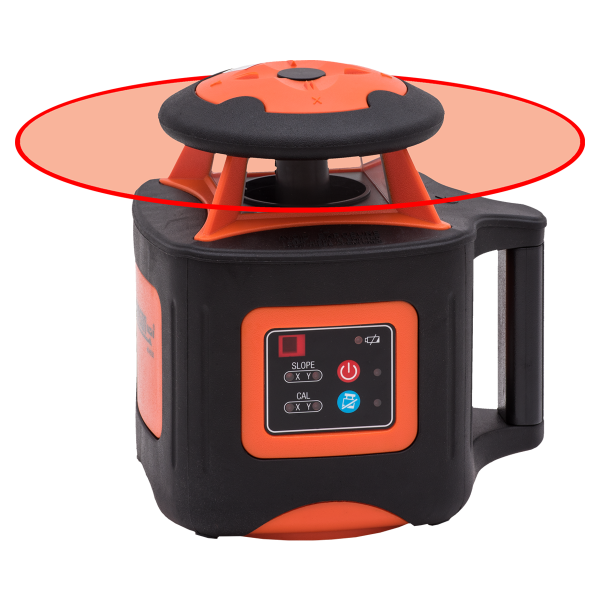

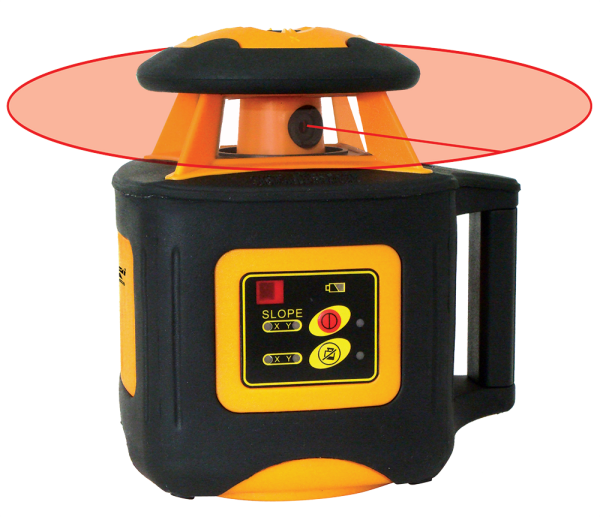

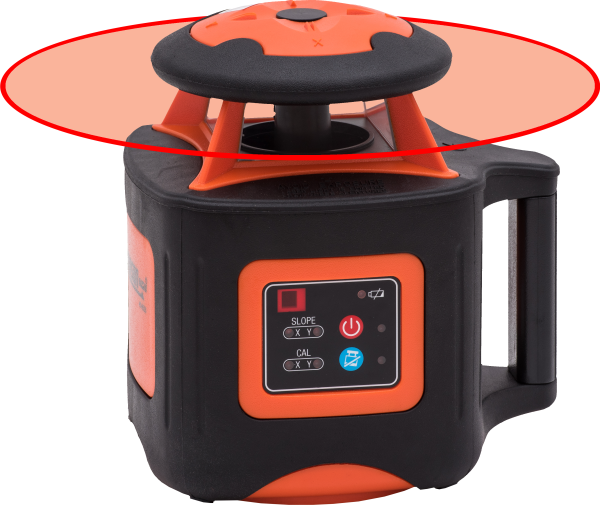

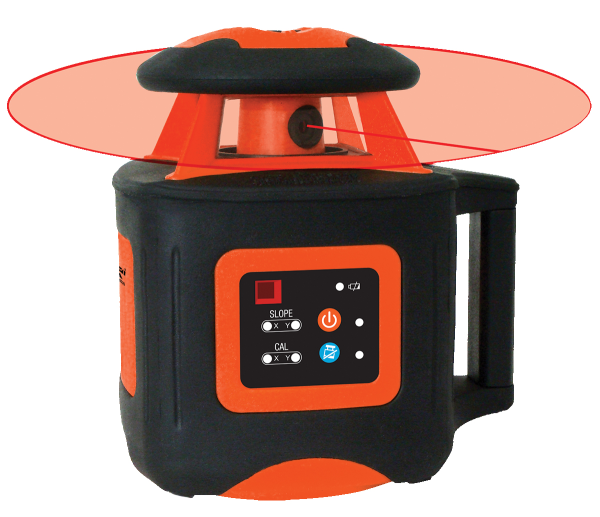

High Accuracy Dual Slope Rotary Laser System

MODEL #:  40-6541

Designed with the excavator, flatwork contractor, or landscaper in mind, this horizontal-only rotary features a wide dual-slope range of 8°. One of our easiest to operate and quickest leveling rotaries, you'll be up and running in no time with the 40-6541 laser.

+ Hover over main image to zoom
  • Electronic self-leveling in the horizontal plane

  • 8° dual-slope simplifies grading and concrete flatwork

  • Visual and audible alarms when beyond leveling range

  • Tilt indicator alerts operator if the laser is bumped or moved

  • Includes everything to grade or level your jobsite

  • Includes full size 13' grade rod

40-6541 Includes > Laser, NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with clamp and 9V battery, tripod, 13' grade rod, magnetic target, tinted glasses, and hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/100'

Interior Range:

Up to 200' diameter

Exterior Range:

Up to 2,000' diameter with detector

Remote Range:

Up to 200' diameter with remote

Self-Leveling Range:

±5°

Slope:

+

Power Supply:

NiMH rechargeable battery pack and charger (included), 4 "C" alkaline batteries (not included)

Battery Life:

28 hours NiMH; 33 hours alkaline batteries

Working Temperature:

14°F-113°F

Rotation Speeds:

800 RPM

IP Protection Class:

66

Warranty:

3 Years

High-accuracy horizontal work including excavation, flatwork, landscaping, masonry, and form, post, and footing heights. Indoors use for drop ceilings, beams, and more!

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $31.92
Replacement Grade Rod Spare Locking Button for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.50
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $4.80
Replacement Hard Shell Carrying Case for 40-6541 Model: 40-6979 $363.24
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570, and 40-6541 Model: 40-6826 $67.86
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $10.20
40-6750
Replacement Remote Control for 40-6560, 40-6570, 40-6535, and 40-6541 Model: 40-6750 $42.00
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.00


Product Details

Designed with the excavator, flatwork contractor, or landscaper in mind, this horizontal-only rotary features a wide dual-slope range of 8°. One of our easiest to operate and quickest leveling rotaries, you'll be up and running in no time with the 40-6541 laser.



40-6541 Includes > Laser, NiMH rechargeable battery pack and charger, remote control with 9V battery, detector with clamp and 9V battery, tripod, 13' grade rod, magnetic target, tinted glasses, and hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/100'

Interior Range:

Up to 200' diameter

Exterior Range:

Up to 2,000' diameter with detector

Remote Range:

Up to 200' diameter with remote

Self-Leveling Range:

±5°

Slope:

+

Power Supply:

NiMH rechargeable battery pack and charger (included), 4 "C" alkaline batteries (not included)

Battery Life:

28 hours NiMH; 33 hours alkaline batteries

Working Temperature:

14°F-113°F

Rotation Speeds:

800 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

High-accuracy horizontal work including excavation, flatwork, landscaping, masonry, and form, post, and footing heights. Indoors use for drop ceilings, beams, and more!

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

Replacement Parts

Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $31.92
Replacement Grade Rod Spare Locking Button for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.50
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $4.80
Replacement Hard Shell Carrying Case for 40-6541 Model: 40-6979 $363.24
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570
Replacement NiMH Rechargeable Battery Pack for 40-6540, 40-6550, 40-6535, 40-6560, 40-6560, 40-6570, and 40-6541 Model: 40-6826 $67.86
Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $10.20
40-6750
Replacement Remote Control for 40-6560, 40-6570, 40-6535, and 40-6541 Model: 40-6750 $42.00
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.00
