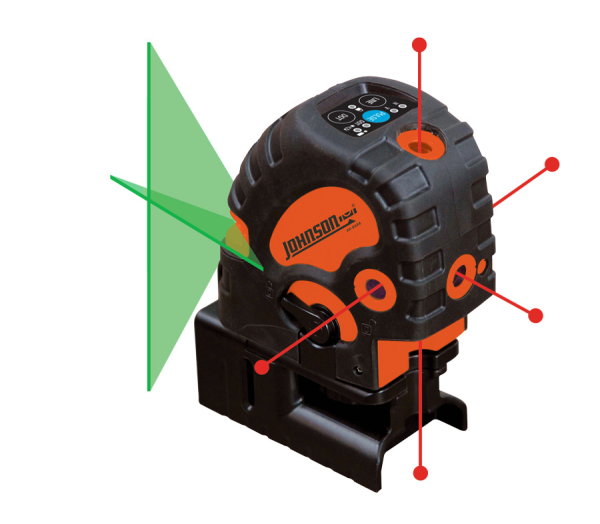

Self-Leveling Combination Green Cross-Line and 5 Dot Laser

MODEL #:  40-6688

Two great lasers rolled into one! This combination laser combines our green 5-dot and green cross line into a single tool that does it all. It even adds a pulse mode for the cross lines for use with a detector (sold separately), for use where the lines aren't visible, such as in bright light or outdoor conditions.

+ Hover over main image to zoom
  • GreenBrite® Technology - 400% more visible

  • One green horizontal, vertical or cross-line

  • Two, three or five simultaneous green dots

  • Locking compensator protects pendulum during transport

  • Visible and audible alarms when beyond leveling range

  • Manual mode for use at any angle

  • Multi-functional magnetic base

  • Perfect for framing and drywall

40-6688 Includes > Laser, multi-functional magnetic base, li-ion battery and charger, alkaline battery compartment (batteries not included), magnetic target, tinted glasses, and hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50'

Interior Range:

Up to 200'; Detector range up to 75'(with Johnson model 40-6763 green beam laser detector-sold separately)

Self-Leveling Range:

±3°

Power Supply:

Li-ion rechargeable battery pack (included); 4AA alkaline batteries (not included)

Battery Life:

14 hours cross-line only (li-ion); 36 hours dots only (li-on)

Dimensions:

5.25" x 2.5" x 5.25"

Weight:

1.53 lbs.

Working Temperature:

14° F to 113° F

IP Protection Class:

IP 54

Center Screw Thread:

5/8"-11; 1/4"-20

Warranty:

3 Years

Anywhere a 5-Dot or Crossline can be used, the combination laser can be used: Framing, Drywall, Aligning beams, squaring posts, transferring reference points from floor to ceiling, leveling cabinets, wainscoting, and more!

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 7AM-5PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Manuals

40-6688-English

Replacement Hard-Shell Carrying Case for 40-6685 and 40-6688v1 Model: 40-6885 $47.68
Replacement Mulit-Functional Magnetic Base for 40-6683, 40-6685, 40-6687, 40-6688v1 Model: 40-6884 $38.12
Replacement Hard-Shell Carrying Case for 40-6688v2 Model: 40-6204 $44.36
Replacement Li-ion Battery for 40-6688v2 Model: 40-6205 $58.92
Replacement Li-ion Charger/Cable for 40-6688v2 Model: 40-6207 $18.16
Replacement Alkaline Battery Compartment for 40-6688v2 Model: 40-6208 $5.28


Product Details

Two great lasers rolled into one! This combination laser combines our green 5-dot and green cross line into a single tool that does it all. It even adds a pulse mode for the cross lines for use with a detector (sold separately), for use where the lines aren't visible, such as in bright light or outdoor conditions.



40-6688 Includes > Laser, multi-functional magnetic base, li-ion battery and charger, alkaline battery compartment (batteries not included), magnetic target, tinted glasses, and hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50'

Interior Range:

Up to 200'; Detector range up to 75'(with Johnson model 40-6763 green beam laser detector-sold separately)

Self-Leveling Range:

±3°

Power Supply:

Li-ion rechargeable battery pack (included); 4AA alkaline batteries (not included)

Battery Life:

14 hours cross-line only (li-ion); 36 hours dots only (li-on)

Dimensions:

5.25" x 2.5" x 5.25"

Weight:

1.53 lbs.

Working Temperature:

14° F to 113° F

IP Protection Class:

IP 54

Center Screw Thread:

5/8"-11; 1/4"-20

Warranty:

3 Years

Application

Anywhere a 5-Dot or Crossline can be used, the combination laser can be used: Framing, Drywall, Aligning beams, squaring posts, transferring reference points from floor to ceiling, leveling cabinets, wainscoting, and more!

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 7AM-5PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Manuals

40-6688-English

Replacement Parts

Replacement Hard-Shell Carrying Case for 40-6685 and 40-6688v1 Model: 40-6885 $47.68
Replacement Mulit-Functional Magnetic Base for 40-6683, 40-6685, 40-6687, 40-6688v1 Model: 40-6884 $38.12
Replacement Hard-Shell Carrying Case for 40-6688v2 Model: 40-6204 $44.36
Replacement Li-ion Battery for 40-6688v2 Model: 40-6205 $58.92
Replacement Li-ion Charger/Cable for 40-6688v2 Model: 40-6207 $18.16
Replacement Alkaline Battery Compartment for 40-6688v2 Model: 40-6208 $5.28
