Self-Leveling Cross and Line Laser
![](/Content/homeBtns/logoUnderline.png)

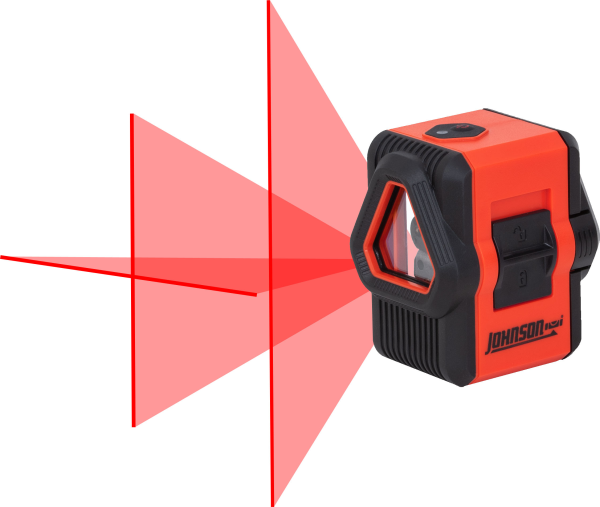

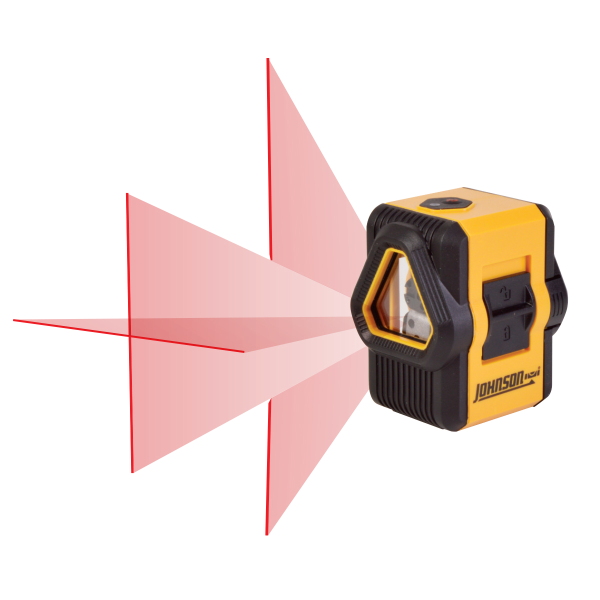

Johnson's 40-6648 Self-Leveling Cross & Line Laser combines the features of a cross-line laser with an additional 90 degree plumb line useful for checking square reference of beams, posts, or any other object. A 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.
![](/Content/files/ProductImages/40-664840-6649 wbeam.png)
![](/Content/files/ProductImages/40-664840-6649 wbeam.png)
![40-6648 40-6648](/Content/files/ProductImages/40-6648 retail ad replace or add_THSq.jpg)
![40-6648 40-6648](/Content/files/ProductImages/v_7d25_40-6648_THSq.jpg)
1 horizontal and 2 vertical lines at 90°
Manual mode for use at any angle
Visual out-of-level indicator
Manual mode for use at any angle
1/4"-20 tripod thread for use with most common tripods
Ideal for flooring and alignment
Leveling Method: | Self-Leveling (Pendulum) |
---|---|
Laser Wavelength: | 635nm±10nm (Red) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±5/32"/30' |
Working Range: | Up to 100' |
Self-Leveling Range: | ±4° |
Power Supply: | 2 "AA" alkaline batteries (included) |
Battery Life: | 10 hours continuous use |
Dimensions: | 2.5" x 3.0" x 3.6" |
Weight: | 8.8 oz (without batteries) |
Working Temperature: | 32° F to 104° F |
IP Protection Class: | IP 50 |
Warranty: | 2 Years |
The Johnson Level 40-6648 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, plumbing & square of posts.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6648 English
![Replacement Magnetic Bracket for 40-6601, 40-6603, 40-6605, 40-6609, 40-6612, 40-6647, 40-6648, 40-6649, 40-6606, 40-6607, 40-6611, 40-6641 and 40-6646](/Content/files/ProductImages/40-6993_THL.jpg)
Product Details
Johnson's 40-6648 Self-Leveling Cross & Line Laser combines the features of a cross-line laser with an additional 90 degree plumb line useful for checking square reference of beams, posts, or any other object. A 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.
Specifications
Leveling Method: | Self-Leveling (Pendulum) |
---|---|
Laser Wavelength: | 635nm±10nm (Red) |
Laser Classification: | Class II |
Maximum Power Output: | ≤1mW |
Accuracy: | ±5/32"/30' |
Working Range: | Up to 100' |
Self-Leveling Range: | ±4° |
Power Supply: | 2 "AA" alkaline batteries (included) |
Battery Life: | 10 hours continuous use |
Dimensions: | 2.5" x 3.0" x 3.6" |
Weight: | 8.8 oz (without batteries) |
Working Temperature: | 32° F to 104° F |
IP Protection Class: | IP 50 |
Warranty: | 2 Years |
Application
The Johnson Level 40-6648 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, plumbing & square of posts.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6648 English
