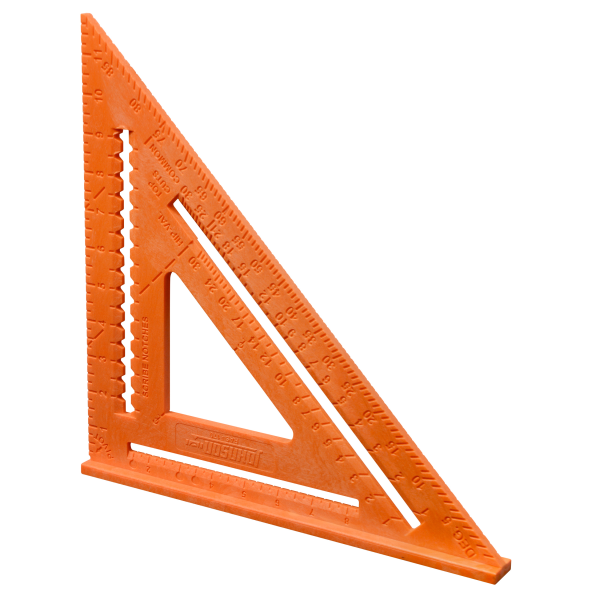

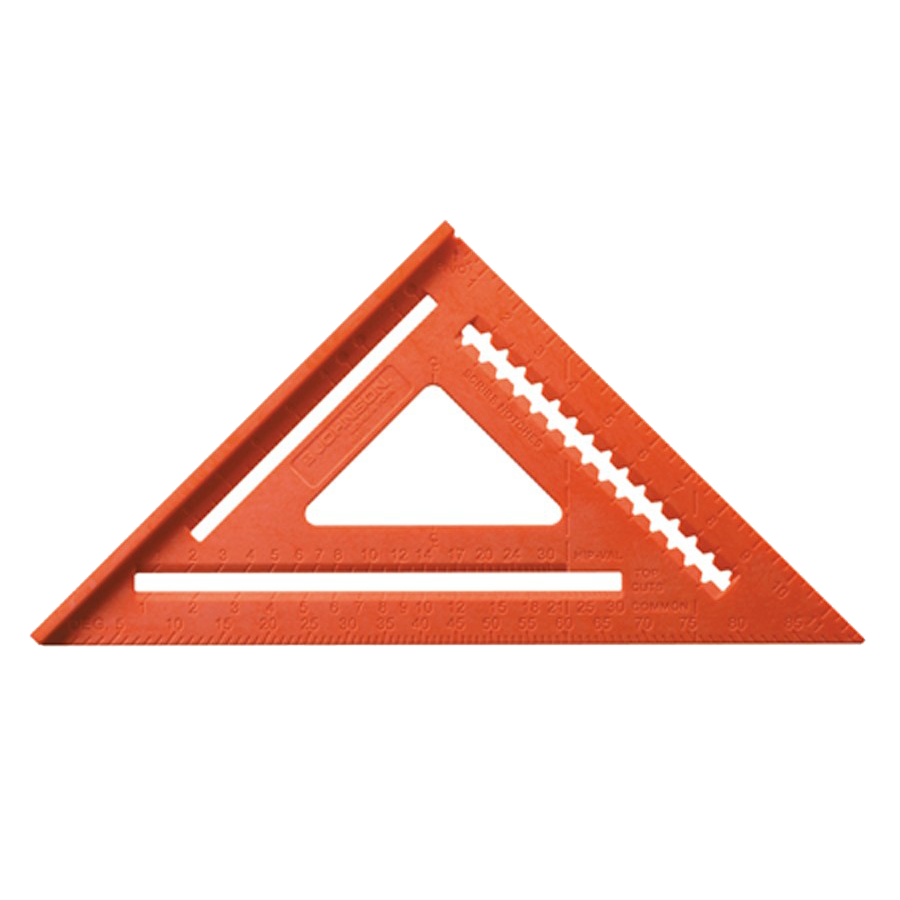

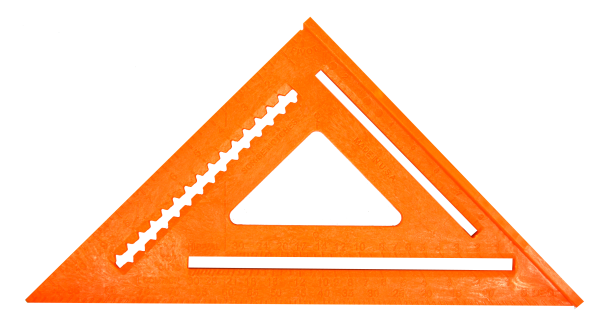

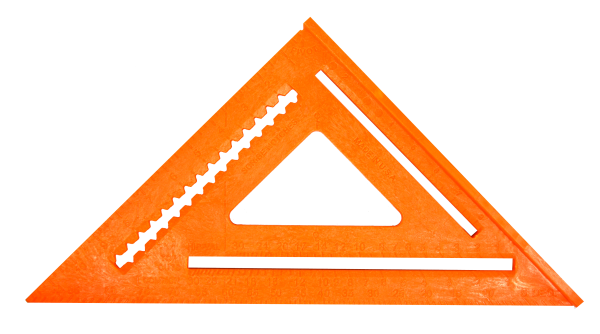

12" Structo-Cast® Rafter Square w/out Manual

MODEL #:  RAS-170B-ORA

As a saw guide, stair layout tool or rafter tool, Johnson's 12" rafter square will help you get the job done accurately and easily. It features Johnson's unique Structo-Cast® molded frame that is both lightweight and durable, as well as permanent molded graduations for making quick and easy measurements. This rafter square comes with handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2". And you'll always find this square quickly in your toolbox thanks to its fluorescent, easy-to-see color.

+ Hover over main image to zoom
  • Durable, light weight Structo-Cast® high-impact molded frame

  • Permanent molded graduations for quick and easy measurements

  • 2x4 board dimension markers for measuring 1-1/2", 3" and 3-1/2"

  • Thick edge is useful as a saw guide

  • Built-in scribe notches

  • Fluorescent easy-to see color

Warranty:

1 Year Warranty

This 12" rafter square is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. It can be used indirectly as well, using the scribing notches to create a saw cut line for rip cuts. The rafter square also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers. And, of course, this rafter square has scales for cutting hip, valley and jack rafters.

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Other Resources
How to Read a Rafter Angle Square
How to Use a Rafter Angle Square
Using a Rafter Angle Square for Roof Pitch
Using a Rafter Angle Square for Rafters
How to Cut Rafters with a Rafter Angle Square

Product Details

As a saw guide, stair layout tool or rafter tool, Johnson's 12" rafter square will help you get the job done accurately and easily. It features Johnson's unique Structo-Cast® molded frame that is both lightweight and durable, as well as permanent molded graduations for making quick and easy measurements. This rafter square comes with handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2". And you'll always find this square quickly in your toolbox thanks to its fluorescent, easy-to-see color.



Specifications

Warranty:

1 Year Warranty

Application

This 12" rafter square is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. It can be used indirectly as well, using the scribing notches to create a saw cut line for rip cuts. The rafter square also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers. And, of course, this rafter square has scales for cutting hip, valley and jack rafters.

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
