Self-Leveling Rotary Laser Kit

MODEL #:  40-6532

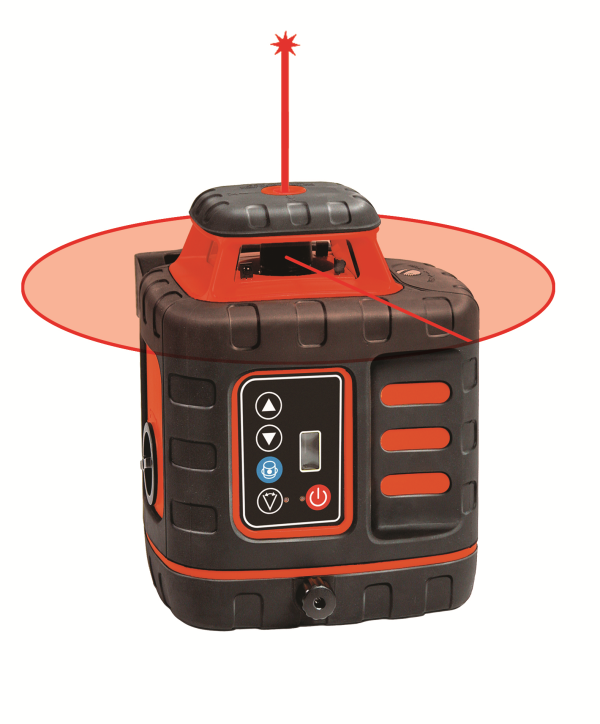

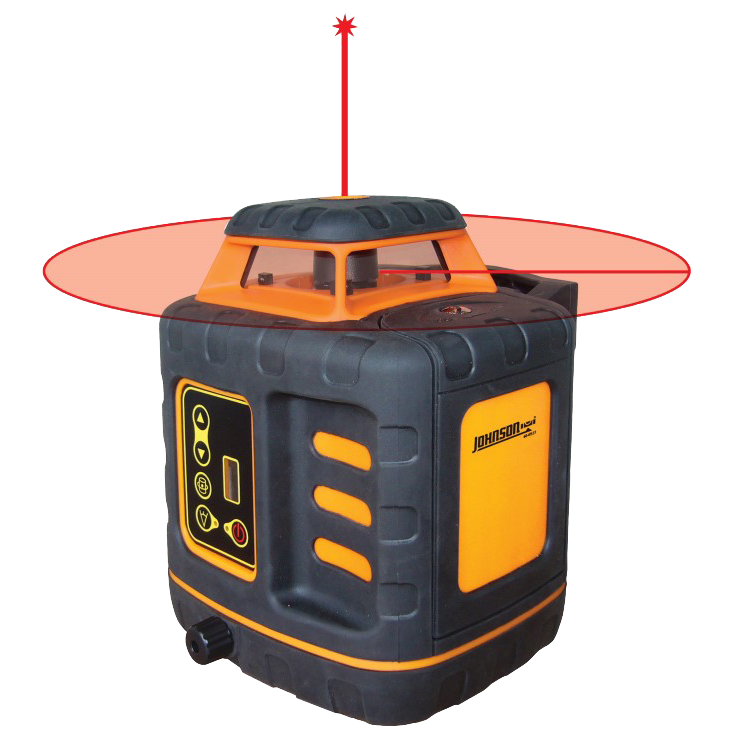

Johnson's 40-6532 rotary laser system is the perfect tool for indoor and outdoor leveling jobs. The rotary features horizontal self-leveling as well as manual leveling in the vertical plane, while its split beam establishes a 90° angle. The rotary also features two laser beam modes - dot and two adjustable line lengths - making it a versatile tool for any number of applications. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With an included NiMH rechargeable battery pack, 6.4V battery charger, battery compartment, detector and clamp, remote control, tinted glasses and hard-shell carrying case, this rotary laser system comes equipped with everything you need to get up and running! When working in brightly lit conditions, consider Johnson's 40-6543 green beam rotary laser system featuring GreenBrite® technology.

40-6532+ Hover over main image to zoom
40-6532
40-6532
  • Self-leveling in the horizontal plane

  • Locking mechanism protects inner pendulum during transportation

  • Manual-leveling in the vertical plane with 90 degrees split beam

  • Laser beam modes include dot and two adjustable line lengths

  • Visual and audible alarms when beyond leveling range

40-6532 Kit Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 9V battery, remote control and 9V battery, tinted glasses, and hard-shell carrying case.

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

±5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 2,000 ft. diameter with detector (included in 40-6532)

Remote Range:

Up to 200 ft.

Self-Leveling Range:

±3.5°

Power Supply:

NiMH rechargeable battery pack and 6.4V adapter (included in 40-6532)

Battery Life:

Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries

Dimensions:

7.08" x 6.37" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

150, 200, 250, 300 RPM

IP Protection Class:

66

Warranty:

3 Years

Ideal for indoor and outdoor jobs, this rotary laser system is a must-have for excavation, flatwork, interior layouts, drop ceilings, wainscoting, cabinet installation and more!

Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Charger for 40-6529, 40-6532, 40-6534, 40-6539, 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 40-6662, 99-028k Model: 40-6838 $37.62
Replacement Alkaline Battery Compartment (no batteries) for 40-6527, 40-6532,99-027K, and 40-6539 Model: 40-6377 $4.80
Replacement Hard-Shell Carrying Case for 40-6532
Replacement Hard-Shell Carrying Case for 40-6532 Model: 40-6805 $48.00
Replacement NiMH Rechargeable Battery Pack for 40-6532 and 40-6539 Model: 40-6373 $61.20
Replacement Laser Level Remote Control
Replacement Remote Control for 40-6532 and 40-6543 Model: 40-6735 $94.06


Product Details

Johnson's 40-6532 rotary laser system is the perfect tool for indoor and outdoor leveling jobs. The rotary features horizontal self-leveling as well as manual leveling in the vertical plane, while its split beam establishes a 90° angle. The rotary also features two laser beam modes - dot and two adjustable line lengths - making it a versatile tool for any number of applications. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With an included NiMH rechargeable battery pack, 6.4V battery charger, battery compartment, detector and clamp, remote control, tinted glasses and hard-shell carrying case, this rotary laser system comes equipped with everything you need to get up and running! When working in brightly lit conditions, consider Johnson's 40-6543 green beam rotary laser system featuring GreenBrite® technology.



40-6532 Kit Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 9V battery, remote control and 9V battery, tinted glasses, and hard-shell carrying case.

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

±5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 2,000 ft. diameter with detector (included in 40-6532)

Remote Range:

Up to 200 ft.

Self-Leveling Range:

±3.5°

Power Supply:

NiMH rechargeable battery pack and 6.4V adapter (included in 40-6532)

Battery Life:

Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries

Dimensions:

7.08" x 6.37" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

150, 200, 250, 300 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

Ideal for indoor and outdoor jobs, this rotary laser system is a must-have for excavation, flatwork, interior layouts, drop ceilings, wainscoting, cabinet installation and more!
