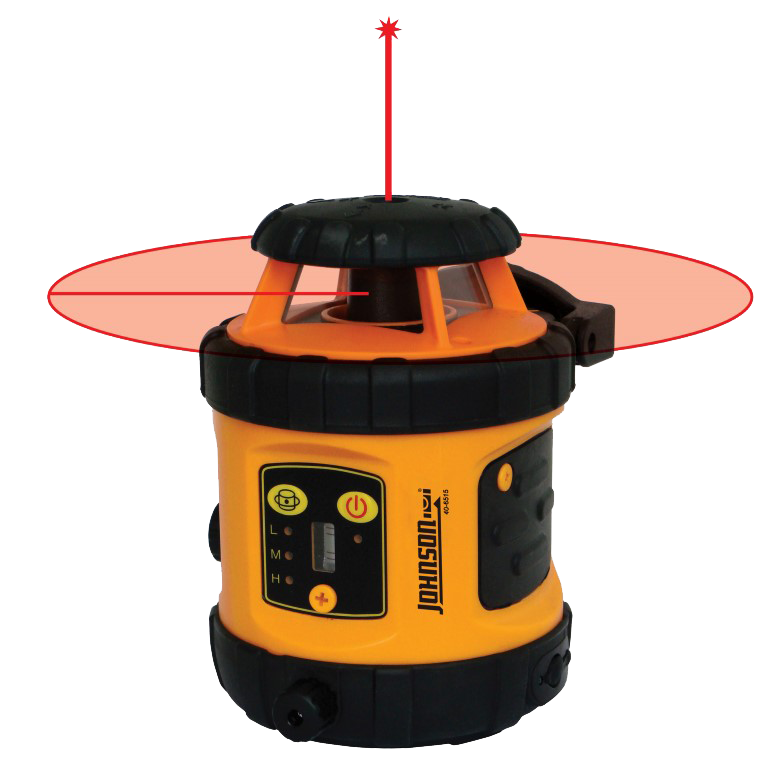

Self-Leveling Rotary Laser Kit

MODEL #:  40-6516

Perfect for small jobsites, this rotary self levels in the horizontal plane and manually levels in the vertical plane. The rotary also features an illuminated vertical vial and adjustable rotational speeds of 200, 400 or 600 RPM. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking pendulum that protects the inner pendulum during transportation. With the included tinted glasses, detector with 9V battery and clamp and hard-shell carrying case, this kit will get your jobsite up and running! For a more complete leveling setup, also consider Johnson's 40-6517 rotary laser system.

40-6516+ Hover over main image to zoom
40-6516
40-6516
  • Self-leveling in horizontal plane

  • Locking mechanism protects inner pendulum during transportation

  • Manual-leveling in the vertical plane with 90 degrees split beam

  • Visual and audible alarms when beyond leveling range

  • Laser rotates at 200, 400, 600 RPM

  • Illuminated vertical vial

40-6516 Kit Includes > Laser, tinted glasses, 4 "AA" alkaline batteries, detector with 9V battery and clamp, and hard-shell carrying case.

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 800 ft. diameter with detector (included in 40-6516 and 40-6517)

Self-Leveling Range:

±3°

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

6.61" x 4.96" x 6.69"

Weight:

3.30 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

200, 400, 600 RPM

IP Protection Class:

54

Warranty:

3 Years

Johnson's rotary laser kit is the perfect solution for small residential jobsites. It can be used for excavations, landscaping, fence lines, wainscoting, drop ceilings and more!

Replacement 8
Replacement 8' Grade Rod (5 Sections) for 40-6512 and 40-6517 Model: 40-6868 $66.00
Replacement Hard-Shell Carrying Case for 40-6516
Replacement Hard-Shell Carrying Case for 40-6516 Model: 40-6348 $84.28
Replacement Hard-Shell Carrying Case
Replacement Hard-Shell Carrying Case for 40-6517 Model: 40-6375 $51.00
Replacement Soft-Shell Carrying Case for 40-6515
Replacement Soft-Shell Carrying Case for 40-6515 Model: 40-6346 $26.98
Replacement Laser Wall and Ceiling Mount
Replacement Wall/Ceiling Mount for 40-6512, 40-6517, 40-6543, and 99-026K Model: 40-6371 $54.00


Product Details

Perfect for small jobsites, this rotary self levels in the horizontal plane and manually levels in the vertical plane. The rotary also features an illuminated vertical vial and adjustable rotational speeds of 200, 400 or 600 RPM. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking pendulum that protects the inner pendulum during transportation. With the included tinted glasses, detector with 9V battery and clamp and hard-shell carrying case, this kit will get your jobsite up and running! For a more complete leveling setup, also consider Johnson's 40-6517 rotary laser system.



40-6516 Kit Includes > Laser, tinted glasses, 4 "AA" alkaline batteries, detector with 9V battery and clamp, and hard-shell carrying case.

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/50 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 800 ft. diameter with detector (included in 40-6516 and 40-6517)

Self-Leveling Range:

±3°

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

6.61" x 4.96" x 6.69"

Weight:

3.30 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

200, 400, 600 RPM

IP Protection Class:

54

Warranty:

3 Years

Application

Johnson's rotary laser kit is the perfect solution for small residential jobsites. It can be used for excavations, landscaping, fence lines, wainscoting, drop ceilings and more!
