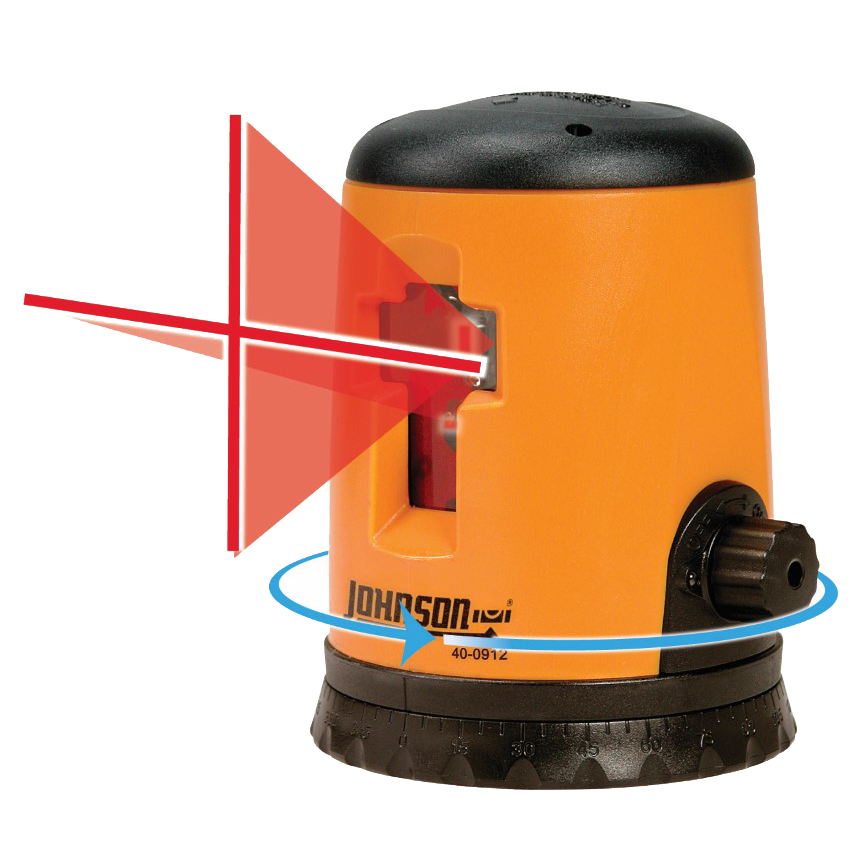

Self-Leveling Cross-Line Laser Kit

MODEL #:  40-0921

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile, easy to use and inexpensive. Johnson's self-leveling cross-line laser projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. Its 360° graduated base makes angle layout a snap, and its locking mechanism protects the inner pendulum during transportation. Thanks to the laser's visual out of level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. This kit is all you'll need to get your laser leveling project started. The elevating tripod attaches quickly and easily to the laser for hands-free use, and the tinted laser glasses enhance beam visibility on the jobsite. And the hard-shell carrying case protects your equipment when not in use.

  • Self-leveling

  • Interior horizontal and vertical layout

  • Locking mechanism protects inner pendulum during transportation

  • 360 degrees graduated base allows angle layout

  • Emits cross line lasers; Projects vertical and horizontal laser lines simultaneously

  • Projects vertical and horizontal laser lines simultaneously

  • Visual out of level indicator

  • 5/8" - 11 thread

40-0921 Kit Includes > Laser, tinted glasses, elevating tripod, and hard-shell carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/4"/35' (+/-0.6mm/m)

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Self-Leveling Range:

+/- 6 degrees

Power Supply:

3 "AAA" alkaline batteries (included in 40-0912)

Battery Life:

Approximately 12 hours continuous use

Dimensions:

5" x 4" x 3.5" (127x102x89mm)

Weight:

1.2Ibs (0.54kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsuis)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

Cross-line lasers are versatile tools that you'll find useful for any number of leveling project, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work and more. With the included laser enhancement glasses, tripod and carrying case, you'll have everything you need to get up and running!

Replacement Hard-Shell Carrying Case for 40-0921v1
Replacement Hard-Shell Carrying Case for 40-0921v1 Model: 40-6873 $25.08
replacement hard-shell carrying case image
Replacement Hard-Shell Carrying Case for 40-0921v2 Model: 40-6748 $25.08
Replacement Soft-Shell Carrying Case for 40-0912
Replacement Soft-Shell Carrying Case for 40-0912 Model: 40-6368 $16.86
Replacement Tripod for 40-0917, 40-0918 and 40-0921
Replacement Tripod for 40-0917, 40-0918 and 40-0921 Model: 40-6870 $25.08
Replacement Tripod for 40-0918v2 and 40-0921v2
Replacement Tripod for 40-0918v2 and 40-0921v2 Model: 40-6880B $30.00


Product Details

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile, easy to use and inexpensive. Johnson's self-leveling cross-line laser projects two crisp, clean laser lines simultaneously - one vertical and one horizontal. Its 360° graduated base makes angle layout a snap, and its locking mechanism protects the inner pendulum during transportation. Thanks to the laser's visual out of level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. This kit is all you'll need to get your laser leveling project started. The elevating tripod attaches quickly and easily to the laser for hands-free use, and the tinted laser glasses enhance beam visibility on the jobsite. And the hard-shell carrying case protects your equipment when not in use.



40-0921 Kit Includes > Laser, tinted glasses, elevating tripod, and hard-shell carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/4"/35' (+/-0.6mm/m)

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Self-Leveling Range:

+/- 6 degrees

Power Supply:

3 "AAA" alkaline batteries (included in 40-0912)

Battery Life:

Approximately 12 hours continuous use

Dimensions:

5" x 4" x 3.5" (127x102x89mm)

Weight:

1.2Ibs (0.54kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsuis)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

Cross-line lasers are versatile tools that you'll find useful for any number of leveling project, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work and more. With the included laser enhancement glasses, tripod and carrying case, you'll have everything you need to get up and running!
