Self-Leveling Cross-Line Laser

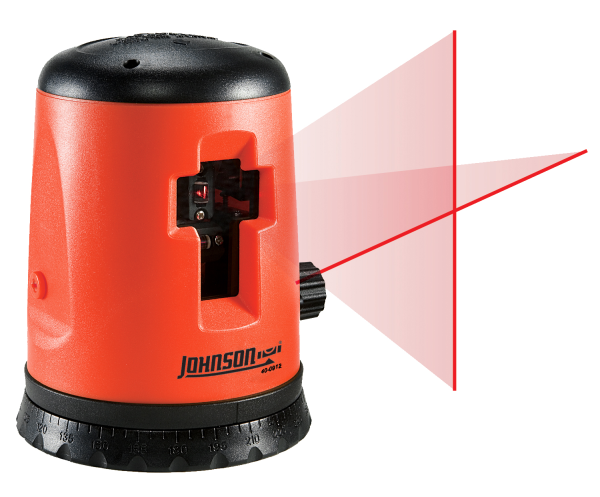

Cross-line laser levels offer the highest value of any type of laser: they're extremely versatile, easy to use and inexpensive. Johnson's self-leveling cross-line laser projects two crisp, clean laser lines simultaneously - one vertical and horizontal. It features a 360° graduated base makes angle layout a snap, and its locking mechanism protects the inner pendulum during transportation. Thanks to the laser's visual out of level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam.
+ Hover over main image to zoom
Self-leveling
Interior horizontal and vertical layout
Locking mechanism protects inner pendulum during transportation

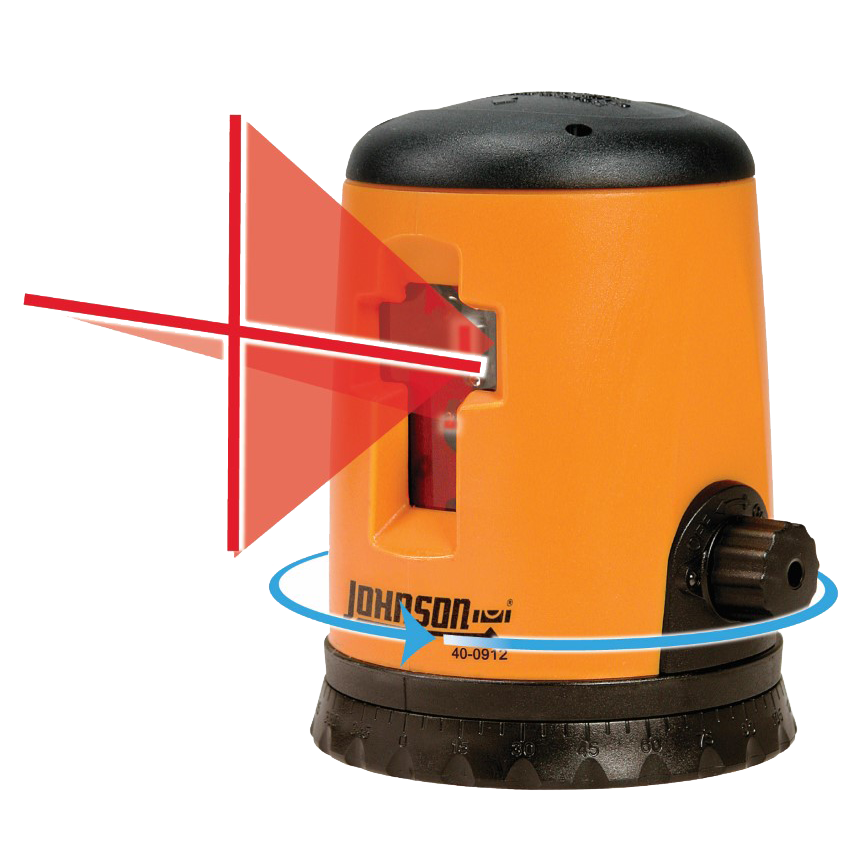

360 degrees graduated base allows angle layout
Emits cross line lasers
Projects vertical and horizontal laser lines simultaneously
Visual out of level indicator
5/8" - 11 thread
40-0912 Includes > Laser, 3 "AAA" alkaline batteries, and soft-sided carrying case
| Leveling Method: | Self-leveling (Pendulum) |
|---|---|
| Laser Wavelength: | 635nm+/-10nm (Red) |
| Laser Classification: | Class Illa |
| Maximum Power Output: | Less than/Equal to 5mW |
| Accuracy: | +/-1/4"/35' (+/-0.6mm/m) |
| Interior Range: | Up to 100ft. (30m) depending upon light conditions |
| Self-Leveling Range: | +/- 6 degrees |
| Power Supply: | 3 "AAA" alkaline batteries |
| Battery Life: | Approximately 12 hours continuous use |
| Dimensions: | 5" x 4" x 3.5" (127x102x89mm) |
| Weight: | 1.2Ibs (0.54kg) |
| Working Temperature: | 14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsuis) |
| Center Screw Thread: | 5/8"-11 |
| IP Protection Class: | 54 |
| Warranty: | 3 Year Warranty |
Cross-line lasers are versatile tools that you'll find useful for any number of leveling projects, such as hanging shelving and pictures, tiling walls, leveling cabinets, finish work and more! For everything you'll need to get your laser leveling project going, consider Johnson's self-leveling cross-line laser kit featuring this same level but packaged with laser glasses, a tripod and a hard-shelled carrying case.
