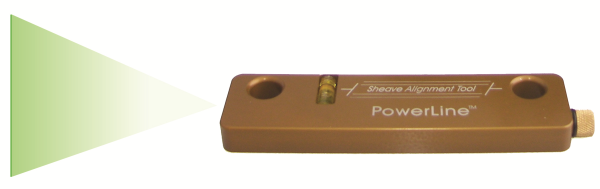

Magnetic Sheave Alignment with GreenBrite® Technology

MODEL #:  40-6210

Decrease vibration on any Pulley/Sheave System - minimize belt and motor bearing wear, compact size - easy to use on small diameter sheaves, faster set ups, decrease bearing wear, green beam is 400% more visible than red beam laser, use as a laser level - check the height and flatness of motor and gear box mounting plates, aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment.  40-6210 Includes > Green magnetic sheave alignment, three precision machined magnetic targets, 2 "AAA" alkaline batteries, and hard-shell carrying case.

+ Hover over main image to zoom
  • Decrease vibration on any Pulley/Sheave System - minimize belt and motor bearing wear

  • Compact size - easy to use on small diameter sheaves

  • Faster set ups

  • Green beam is 400% more visible than red beam laser

  • Use as a laser level - check the height and flatness of motor and gear box mounting plates

  • Aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment

40-6210 Includes > Green magnetic sheave alignment, three precision machined magnetic targets, 2 "AAA" alkaline batteries, and hard-shell carrying case

Laser Wavelength:

±10nm (Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/16"10¹

Interior Range:

Up to 100'

Vial:

40 Arc Minutes

Beam Spread:

60" @ 3'

Line Width:

Approx. 1/16" @ 30"

Magnets:

Nickel Plated, Rare Earth

Power Supply:

2 AAA Alkaline Batteries Included

Battery Life:

10 Hours

Targets:

3 - Retro-Reflective, Adjustable over 1"

IP Protection Class:

67

Warranty:

1 Year Warranty

The Johnson Level 40-6210 can be used for the following indoor applications; aligning belts, sheaves, sprockets, gear trains, rollers, platforms, conveyors and other plant equipment.
