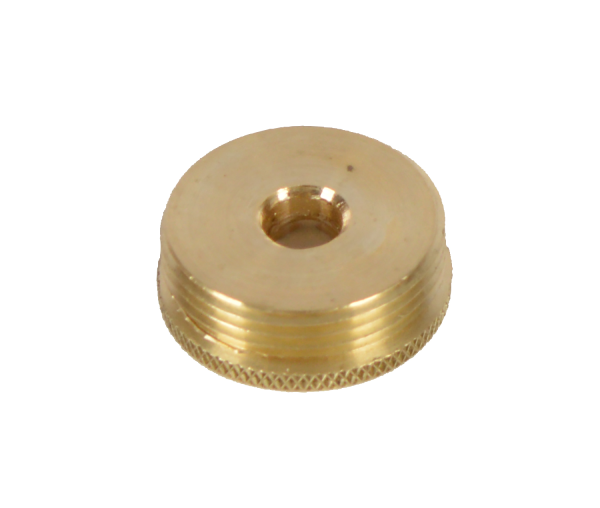

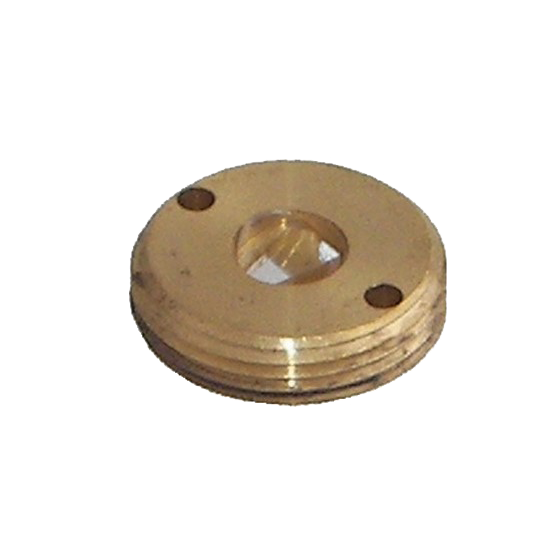

70 Degree Fan Angle Line Generator Lens for Dot Laser 40-6220, 40-6222, 40-6224

MODEL #:  40-6228

Make your Johnson dot laser do double duty with this accessory that converts the dot laser to a line laser. This line generator lens creates a laser line with a fan angle of 70°, increasing your dot laser's versatility.

+ Hover over main image to zoom
  • Industrial alignment laser dots can be further accessorized with the 40-6228 line generator optic to create a line with a fan angle of 70 degrees

Laser Wavelength:

532nm (Green), 635nm+/-10nm (Red)

Laser Classification:

Class Il

Maximum Power Output:

Less than/Equal to 1mW

Beam Divergance:

70 degree standard

Interior Range:

Up to 100ft. (30m) 40-6230 and 150ft. (45m) 40-6232 depending upon light conditions

Power Supply:

110AC (included)

Dimensions:

4" x 0.75" x 1.375" (101x19x35)

Weight:

7.5 oz. (.21kg)

IP Protection Class:

65

Warranty:

1 Year Warranty

This line generator lens was designed to use with Johnson's model 40-6220, 40-6222 and 40-6224 dot lasers. It increases the laser's versatility by converting the dot laser beam to a line beam - making it a handy tool for drop ceilings, drywall installation, sprinkler installation, HVAC, wallpaper and stenciling/painting, cabinet and countertop alignment, alignment and plumb of concrete forms, leveling deck floors and more!

Product Details

Make your Johnson dot laser do double duty with this accessory that converts the dot laser to a line laser. This line generator lens creates a laser line with a fan angle of 70°, increasing your dot laser's versatility.



Specifications

Laser Wavelength:

532nm (Green), 635nm+/-10nm (Red)

Laser Classification:

Class Il

Maximum Power Output:

Less than/Equal to 1mW

Beam Divergance:

70 degree standard

Interior Range:

Up to 100ft. (30m) 40-6230 and 150ft. (45m) 40-6232 depending upon light conditions

Power Supply:

110AC (included)

Dimensions:

4" x 0.75" x 1.375" (101x19x35)

Weight:

7.5 oz. (.21kg)

IP Protection Class:

65

Warranty:

1 Year Warranty

Application

This line generator lens was designed to use with Johnson's model 40-6220, 40-6222 and 40-6224 dot lasers. It increases the laser's versatility by converting the dot laser beam to a line beam - making it a handy tool for drop ceilings, drywall installation, sprinkler installation, HVAC, wallpaper and stenciling/painting, cabinet and countertop alignment, alignment and plumb of concrete forms, leveling deck floors and more!

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.
