Self-Leveling Rotary Laser System

MODEL #:  99-027K

The 99-027K is great for large jobsites with its 2000' working diameter.  If you're working large jobs and don’t need a rotary with slope, this model is perfect for you.  With accuracy of 1/8" per 100', this rotary is suitable for any layout work you'll encounter.  And its IP66 construction makes it suitable for even the dustiest jobsites you'll encounter.  It also features a hard-shell contractor's carrying case to hold all system components.

+ Hover over main image to zoom
  • 2000' working diameter- over 72 acres!

  • Includes everything to grade or level your jobsite

  • One person operation

  • Dustproof, wash down rated housing

  • 90º split beam

  • Manual leveling in vertical plane

  • Visual and audible alarms when beyond leveling range

  • Locking compensator protects pendulum during transport

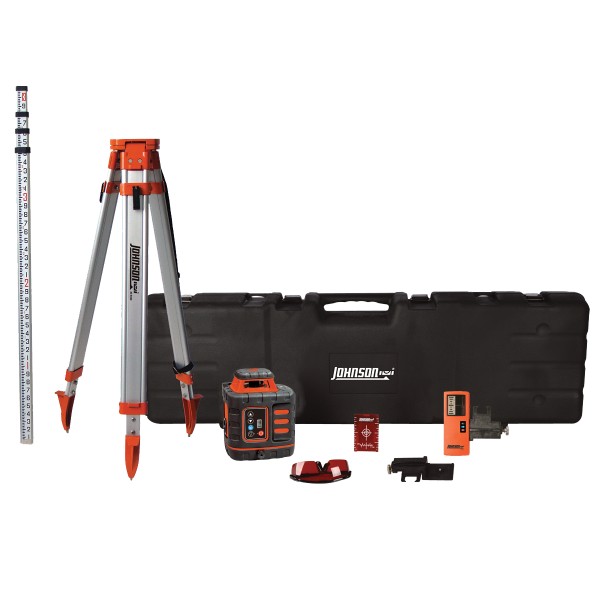

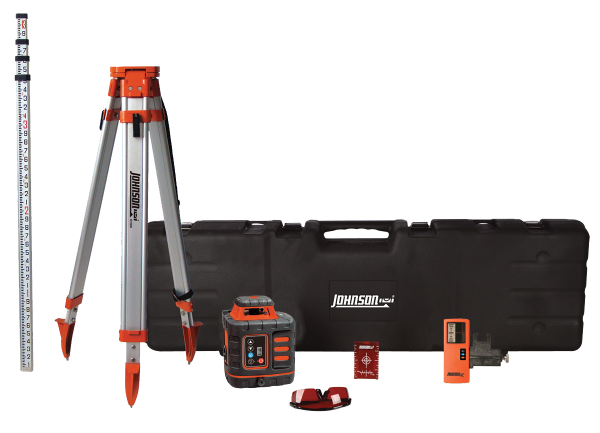

99-027K Includes > Laser, 4 "C" batteries, detector with clamp and 9V battery, tripod, 13' grade rod, magnetic target, tinted glasses, and hard-shell carrying case

Warranty:

3 Years

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class llla

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 2000 ft. diameter with detector

Self-Leveling Range:

±3.5°

Power Supply:

4 "C" alkaline batteries

Battery Life:

15 hours

Dimensions:

7.95" x 6.37" x 7.08"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

150, 200, 250, 300, RPM

IP Protection Class:

66

The ideal rotary for flatwork, large excavations and long fence lines, aligning posts, leveling piers. Can also be used indoors for laying out walls, wainscoting, drop ceilings, and more.

Replacement Alkaline Battery Compartment (no batteries) for 40-6527, 40-6532,99-027K, and 40-6539 Model: 40-6377 $4.80
Replacement Hard-Shell Carrying Case for 99-027K Model: 40-6981 $363.24


Product Details

The 99-027K is great for large jobsites with its 2000' working diameter.  If you're working large jobs and don’t need a rotary with slope, this model is perfect for you.  With accuracy of 1/8" per 100', this rotary is suitable for any layout work you'll encounter.  And its IP66 construction makes it suitable for even the dustiest jobsites you'll encounter.  It also features a hard-shell contractor's carrying case to hold all system components.



99-027K Includes > Laser, 4 "C" batteries, detector with clamp and 9V battery, tripod, 13' grade rod, magnetic target, tinted glasses, and hard-shell carrying case

Specifications

Warranty:

3 Years

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class llla

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 2000 ft. diameter with detector

Self-Leveling Range:

±3.5°

Power Supply:

4 "C" alkaline batteries

Battery Life:

15 hours

Dimensions:

7.95" x 6.37" x 7.08"

Weight:

4.40 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

150, 200, 250, 300, RPM

IP Protection Class:

66

Application

The ideal rotary for flatwork, large excavations and long fence lines, aligning posts, leveling piers. Can also be used indoors for laying out walls, wainscoting, drop ceilings, and more.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

99-027K English
99-027K Spanish
99-027K French

Other Support

How to Set Up a Rotary Laser Level
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
How to Choose a Rotary Laser Level
How to Calibrate a Rotary Laser Level
How to Use a Rotary Laser Level
How to Choose a Rotary Laser Level for Outdoor Use
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level

Replacement Parts

Replacement Alkaline Battery Compartment (no batteries) for 40-6527, 40-6532,99-027K, and 40-6539 Model: 40-6377 $4.80
Replacement Hard-Shell Carrying Case for 99-027K Model: 40-6981 $363.24
