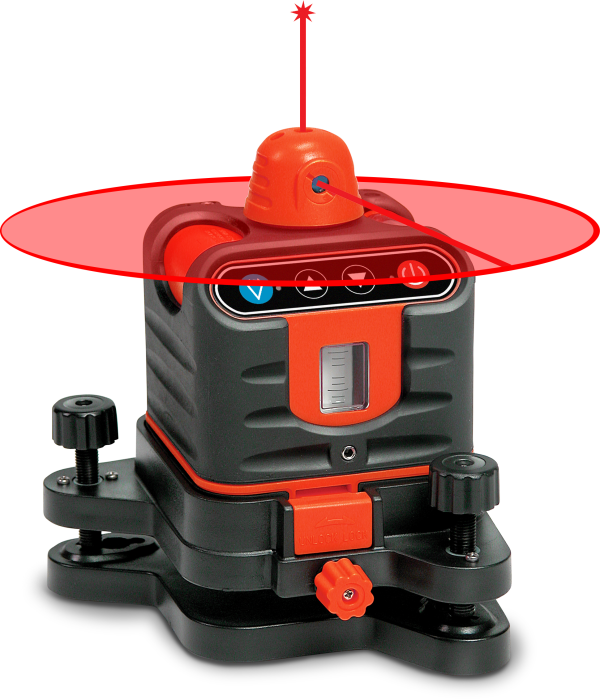

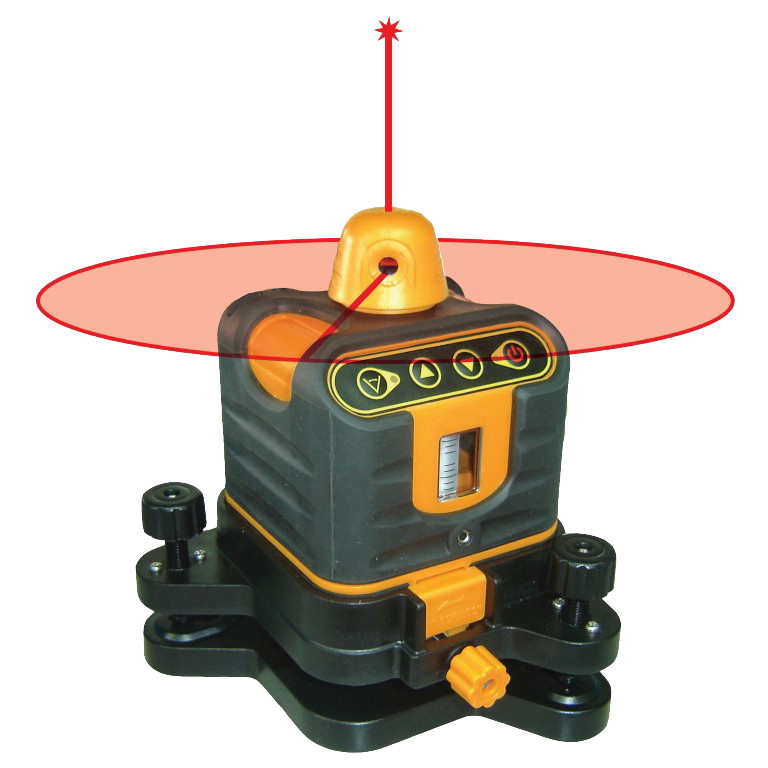

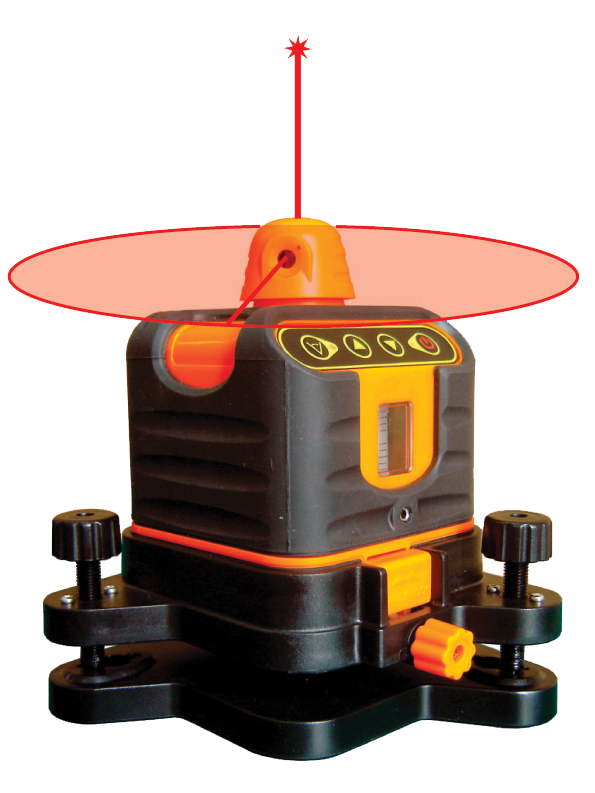

Manual-Leveling Rotary Laser

MODEL #:  40-6502

With large and small scan modes that simulate a laser line and a manual-leveling feature in horizontal and vertical planes, this rotary laser is the perfect tool for any number of indoor or outdoor jobs. The rotary also features variable rotational speeds and a scan line that can be moved in either clockwise or counter-clockwise directions, whiles the simultaneous 90° split beam in vertical mode adds versatility.

40-6502+ Hover over main image to zoom
40-6502
40-6502
  • Large and small scan modes achieve a laser chalk line

  • Manual-leveling in horizontal and vertical planes

  • Simultaneous 90 degrees split beam in vertical mode

  • Scan line can be moved clockwise or counter-clockwise

  • Variable rotation speed

  • Rugged housing

40-6502 Includes > Laser, 4 "AA" alkaline batteries, tinted glasses, and soft-sided carrying case.

Leveling Method:

Manual (Vials)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

±1/4"/100 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 800 ft. diameter with detector (included in 40-6512)

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 15 hours of continuous use

Dimensions:

6.14" x 5.11" x 5.11"

Weight:

1.65 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

150-300 RPM

IP Protection Class:

54

Warranty:

3 Years

This rotary laser can be used for any number of indoor and outdoor applications, including checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, aligning and plumb walls, leveling deck floors, setting drainage, terracing and more!

Replacement 8
Replacement 8' Grade Rod (5 Sections) for 40-6512 and 40-6517 Model: 40-6868 $66.00
replacement base image
Replacement Base for 40-6502, 40-6507 and 40-6512 Model: 40-6749 $42.00
Replacement Hard-Shell Carrying Case
Replacement Hard-Shell Carrying Case for 40-6512 Model: 40-6380 $51.00
Replacement Soft-Sided Carrying Case for 40-6205
Replacement Soft-Sided Carrying Case for 40-6502 and 40-6507 Model: 40-6378 $7.20
Replacement Laser Wall and Ceiling Mount
Replacement Wall/Ceiling Mount for 40-6512, 40-6517, 40-6543, and 99-026K Model: 40-6371 $54.00


Product Details

With large and small scan modes that simulate a laser line and a manual-leveling feature in horizontal and vertical planes, this rotary laser is the perfect tool for any number of indoor or outdoor jobs. The rotary also features variable rotational speeds and a scan line that can be moved in either clockwise or counter-clockwise directions, whiles the simultaneous 90° split beam in vertical mode adds versatility.



40-6502 Includes > Laser, 4 "AA" alkaline batteries, tinted glasses, and soft-sided carrying case.

Specifications

Leveling Method:

Manual (Vials)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

±1/4"/100 ft.

Interior Range:

Up to 200 ft. diameter depending upon light conditions

Exterior Range:

Up to 800 ft. diameter with detector (included in 40-6512)

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 15 hours of continuous use

Dimensions:

6.14" x 5.11" x 5.11"

Weight:

1.65 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

150-300 RPM

IP Protection Class:

54

Warranty:

3 Years

Application

This rotary laser can be used for any number of indoor and outdoor applications, including checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, aligning and plumb walls, leveling deck floors, setting drainage, terracing and more!
