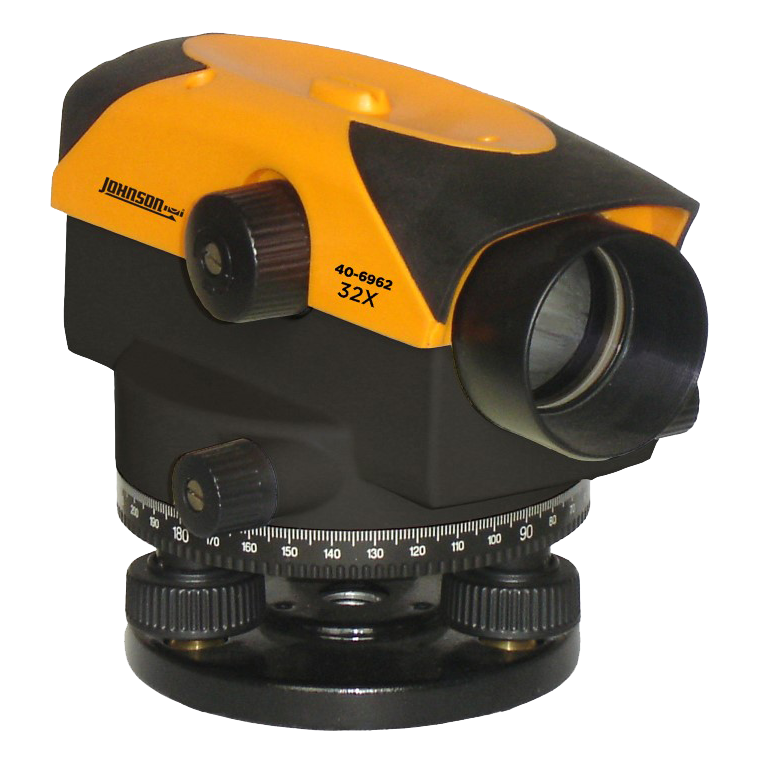

32X Automatic Level System

MODEL #:  40-6963

Johnson's automatic level system includes everything you need to make your next outdoor project run faster and more accurately. The level attaches quickly and easily to the included contractor grade aluminum tripod for hands-free use and is exceptionally easy to use - it features a large, ergonomic focusing knob, prism for viewing the bubble and top-mounted quick-sight for easy viewing of the included 13' grade rod. Accuracy is never an issue with this automatic level - it's equipped with Johnson's most powerful 32x lens for maximum magnification, fine adjustment knobs, focusable cross-hairs, 360⁰ horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level comes equipped with a hard-shell carrying case to keep your tool clean and safe when not in use.

40-6963+ Hover over main image to zoom
40-6963
  • Water and dust resistant for use in most weather conditions

  • Wire-hung, magnetically dampened compensator

  • Large, easy-to-use focusing knob

  • 360 degrees horizontal circle

  • Prism for bubble viewing

  • Top-mounted optical sight for quick reference

  • Fine adjusent knobs on left and right sides with endless horizontal drive

  • 1:100 stadia for distance estimation

  • Focusable cross-hairs

40-6963 Includes > Automatic level, contractor grade aluminum tripod, 13' aluminum grade rod, and a hard-shell carrying case.

Warranty:

3 Year Warranty

Magnification:

32X

Leveling Accuracy:

±1/16"/200'

Self-Leveling Range:

±5°

Clear Objective Aperture:

40mm

Field of View:

1° 30' (2.5'/100')

Stadia Constant:

100

Compensator:

Working Range±15' & Setting Accuracy ±0.8"

Graduations:

Tripod Thread:

5/8"-11

IP Protection Class:

IP54

This automatic level system's precision and durability make it perfectly suited for any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more!

40-6976
Replacement Carrying Bag for 40-6310 Model: 40-6976 $12.72
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.82
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $5.88
Replacement Hard-Shell Carrying Case for 40-6926, 40-6960, 40-6962
Replacement Hard-Shell Carrying Case for 40-6926V2, 40-6960, 40-6962, 40-6928, 40-6961 and 40-6963 Model: 40-6341 $36.78
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.44


Product Details

Johnson's automatic level system includes everything you need to make your next outdoor project run faster and more accurately. The level attaches quickly and easily to the included contractor grade aluminum tripod for hands-free use and is exceptionally easy to use - it features a large, ergonomic focusing knob, prism for viewing the bubble and top-mounted quick-sight for easy viewing of the included 13' grade rod. Accuracy is never an issue with this automatic level - it's equipped with Johnson's most powerful 32x lens for maximum magnification, fine adjustment knobs, focusable cross-hairs, 360⁰ horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level comes equipped with a hard-shell carrying case to keep your tool clean and safe when not in use.



40-6963 Includes > Automatic level, contractor grade aluminum tripod, 13' aluminum grade rod, and a hard-shell carrying case.

Specifications

Warranty:

3 Year Warranty

Magnification:

32X

Leveling Accuracy:

±1/16"/200'

Self-Leveling Range:

±5°

Clear Objective Aperture:

40mm

Field of View:

1° 30' (2.5'/100')

Stadia Constant:

100

Compensator:

Working Range±15' & Setting Accuracy ±0.8"

Graduations:

Tripod Thread:

5/8"-11

IP Protection Class:

IP54

Application

This automatic level system's precision and durability make it perfectly suited for any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more!
