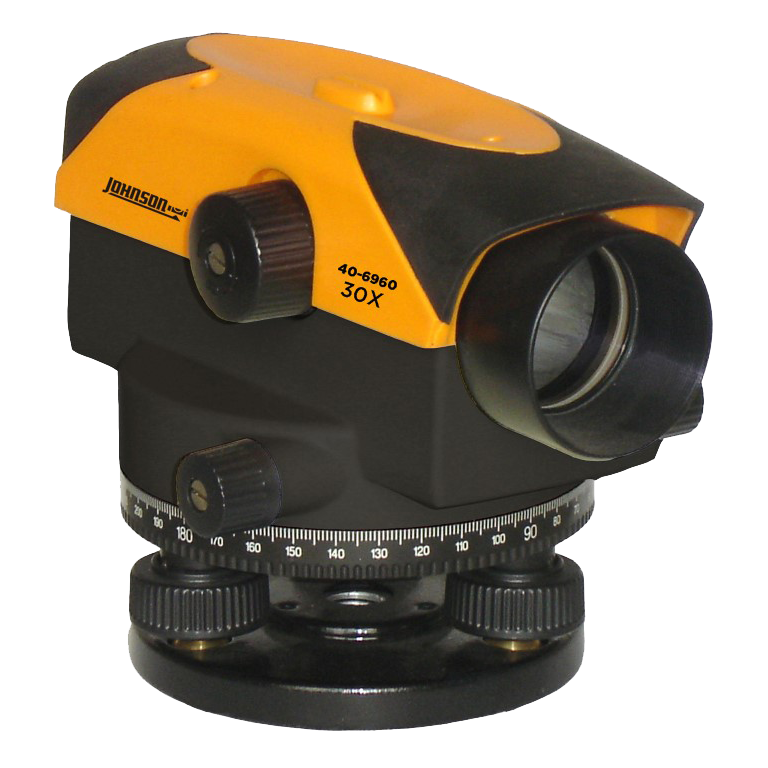

30X Automatic Level System

MODEL #:  40-6961

Johnson's automatic level system includes everything you need to make your next outdoor project run faster and more accurately. The level attaches quickly and easily to the included contractor grade aluminum tripod for hands-free use and is exceptionally easy to use - it features a large, ergonomic focusing knob, prism for viewing the bubble and top-mounted quick-sight for easy viewing of the included 13' grade rod. Accuracy is never an issue with this automatic level - it's equipped with a 30x power lens for strong magnification, fine adjustment knobs, focusable cross-hairs, 360⁰ horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level comes equipped with a hard-shell carrying case to keep your tool clean and safe when not in use, and the grade rod comes with a convenient carrying bag.

40-6961+ Hover over main image to zoom
40-6961
  • Water and dust resistant for use in most weather conditions

  • Wire-hung, magnetically dampened compensator

  • Large, easy-to-use focusing knob

  • 360 degrees horizontal circle

  • Prism for bubble viewing

  • Top-mounted optical sight for quick reference

  • Fine adjusent knobs on left and right sides with endless horizontal drive

  • 1:100 stadia for distance estimation

  • Focusable cross-hairs

  • 5/8" - 11 threads for standard tripods

40-6961 Includes > Automatic level, contractor grade aluminum tripod, 13' aluminum grade rod, and a hard-shell carrying case.

Warranty:

3 Year Warranty

Magnification:

30X

Leveling Accuracy:

±1/16"/200'

Self-Leveling Range:

±5°

Clear Objective Aperture:

40mm

Field of View:

1° 30' (2.5'/100')

Stadia Constant:

100

Compensator:

Working Range±15' & Setting Accuracy ±0.8"

Graduations:

Tripod Thread:

5/8"-11

IP Protection Class:

IP54

This automatic level system's precision and durability make it perfectly suited for any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more!
