Electronic Self-Leveling Horizontal Exterior Rotary Laser System

MODEL #:  40-6552

Designed for outdoor use and simple set up, electronic self-leveling in the horizontal plane, vibrate mode ignores slight movements as in windy conditions, visual and audible alarms when beyond leveling range, single speed rotation 600 RPM, and height of Instrument/Tilt alarm function ensures product accuracy.  40-6552 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, alkaline battery compartment (batteries not included), detector with 9V battery and clamp, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case.

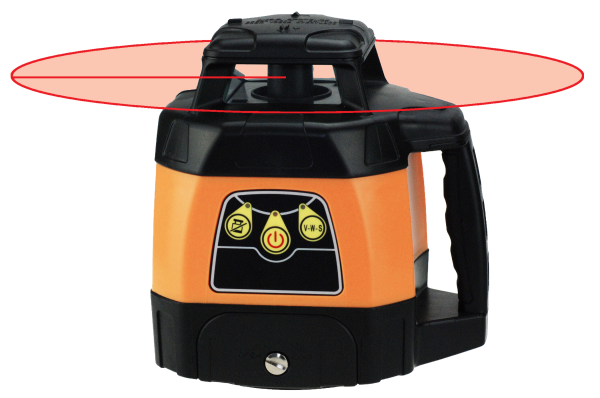

Laser Level w/Beam image for 40-6552+ Hover over main image to zoom
Laser Level w/Beam image for 40-6552
laser level kit image for 40-6552
laser level image for 40-6552
  • Designed for outdoor use and simple set up

  • Electronic self-leveling in the horizontal plane

  • Vibrate mode ignores slight movements as in windy conditions

  • Visual and audible alarms when beyond leveling range

  • Single speed rotation 600 RPM

  • Height of Instrument/Tilt alarm function ensures product accuracy

40-6552 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, alkaline battery compartment (batteries not included), detector with 9V battery and clamp, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter depending on light conditions

Exterior Range:

Up to 2000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter with remote

Auto-Leveling Range:

+/- 5°

Power Supply:

Rechargeable battery pack or 6.4V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life:

24 hours with rechargeable battery pack; 36 hours with alkaline batteries

Dimensions:

8.62" x 6.30" x 7.95"

Weight:

4.65 LBS

Working Temperature:

14°F-113°F

Rotation Speeds:

600 RPM

IP Protection Class:

65

Warranty:

3 Years

The Johnson Level 40-6552 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Charger for 40-6529, 40-6532, 40-6534, 40-6539, 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 40-6662, 99-028k, 40-6590I Model: 40-6838 $37.62
Replacement Hard-Shell Carrying Case Image
Replacement Hard-Shell Carrying Case for 40-6551 and 40-6552 Model: 40-6756 $101.10
Replacement NiMH Rechargeable Battery Pack for 40-6529 and 40-6544
Replacement NiMH Rechargeable Battery Pack for 40-6529, 40-6544, 40-6534, 40-6590, 99-028K, and 40-6590I Model: 40-6383 $63.00
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, 99-028K, and 40-6590I Model: 40-6857 $7.20
Replacement Detector Clamp for 40-6715
Replacement Detector Clamp for 40-6715 and 40-6763 Model: 40-6337 $31.92
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.00
40-6976
Replacement Carrying Bag for 40-6310 Model: 40-6976 $10.40
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $4.80
Replacement Grade Rod Spare Locking Button for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.50


Product Details

Designed for outdoor use and simple set up, electronic self-leveling in the horizontal plane, vibrate mode ignores slight movements as in windy conditions, visual and audible alarms when beyond leveling range, single speed rotation 600 RPM, and height of Instrument/Tilt alarm function ensures product accuracy.  40-6552 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, alkaline battery compartment (batteries not included), detector with 9V battery and clamp, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case.



40-6552 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery adapter, alkaline battery compartment (batteries not included), detector with 9V battery and clamp, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/8"/100 ft.

Interior Range:

Up to 200 ft. diameter depending on light conditions

Exterior Range:

Up to 2000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter with remote

Auto-Leveling Range:

+/- 5°

Power Supply:

Rechargeable battery pack or 6.4V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life:

24 hours with rechargeable battery pack; 36 hours with alkaline batteries

Dimensions:

8.62" x 6.30" x 7.95"

Weight:

4.65 LBS

Working Temperature:

14°F-113°F

Rotation Speeds:

600 RPM

IP Protection Class:

65

Warranty:

3 Years

Application

The Johnson Level 40-6552 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.
