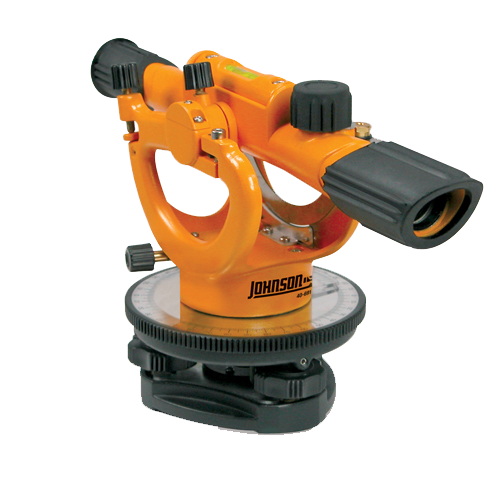

22X Builder's Transit Level System

MODEL #:  40-6912

Johnson's builder's transit level system includes everything you need to set up level points and check elevations on your construction site. Easy to assemble, easy to use and lightweight, the included builder's transit level consists of a leveling vial attached to a telescope. The leveling vial is accessible to ±45° on a vertical arc, with graduations to single degrees and reads by a Vernier scale to 15 arc minutes for maximum precision. Its horizontal tangent screw and vertical lock with tangent screw give you precise movement control so your readings are accurate every time. Johnson's builder's transit level is extremely user-friendly - its built-in sunshade gives you clear sighting, and the large leveling screws are effortless to use. Every transit level requires a tripod, and the contractor grade aluminum tripod included here is lightweight and durable, for easy and dependable use. Finally, this level system includes a 13' aluminum graduated grade rod so that determining differences in elevation is quick and easy. The transit level comes equipped with a hard-shell carrying case.

40-6912 main+ Hover over main image to zoom
40-6912 main
40-6912 kit
40-6912 alt 1
  • Horizontal Circle - graduated to single degrees and reads by vernier direct to 15 arc minutes

  • Vertical Arc - Reads to degrees 45-0-45

  • Horizontal tangent screw & vertical lock with tangent screw for precise movement control

  • Built-in sunshade - for clear sighting

  • Top mounted leveling vial - for effortless viewing

  • Large leveling screws - easy to turn

  • Versatile - ideal for leveling foundations, driveways, patios, floors, for grading street, curbs and ditches, for aligning fences; or any other light construction job

40-6912 Includes > Builder's transit level, contractor grade aluminum tripod, 13' aluminum grade rod, and a hard-shell carrying case

Warranty:

3 Year Warranty

Magnification:

22X

Leveling Accuracy:

±3/16"/100'

Minimum Focus:

4'

Clear Objective Aperture:

22mm

Field of View:

1° 6' (2'/100')

Level Vial:

4' per 2mm

Stadia Constant:

100

Graduations:

Number:

Each 10°, 0-90-0°

Vernier:

Double direct to 15 min.

Tripod Thread:

5/8"-11

Johnson's builder's transit level system is truly versatile for the construction field to set up level points and to check elevations. While it is mainly used in surveying and building, it is also useful for transferring, setting or measuring horizontal levels. This system is ideal for leveling foundations, driveways and floors, grading streets, curbs and ditches, setting foundations and footers, drainage and much more!

40-6976
Replacement Carrying Bag for 40-6310 Model: 40-6976 $12.72
Replacement Grade Rod Space Locking Button for 40-6310, 40-6320, 40-6862 and 40-6517 Model: 40-6866 $1.82
Replacement Grade Rod Vial for 40-6310, 40-6320 and 40-6862
Replacement Grade Rod Vial for 40-6310, 40-6320, 40-6326, 40-6327, 40-6868, and 40-6862 Model: 40-6864 $5.88
Replacement Hard-Shell Carrying Case for 40-6910
Replacement Hard-Shell Carrying Case for 40-6910 and 40-6912 Model: 40-6345 $44.44
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set
Replacement Rubber Covers for Tripod Feet for 40-6330, 40-6335 and 40-6340 - 3/set Model: 40-6306 $2.44


Product Details

Johnson's builder's transit level system includes everything you need to set up level points and check elevations on your construction site. Easy to assemble, easy to use and lightweight, the included builder's transit level consists of a leveling vial attached to a telescope. The leveling vial is accessible to ±45° on a vertical arc, with graduations to single degrees and reads by a Vernier scale to 15 arc minutes for maximum precision. Its horizontal tangent screw and vertical lock with tangent screw give you precise movement control so your readings are accurate every time. Johnson's builder's transit level is extremely user-friendly - its built-in sunshade gives you clear sighting, and the large leveling screws are effortless to use. Every transit level requires a tripod, and the contractor grade aluminum tripod included here is lightweight and durable, for easy and dependable use. Finally, this level system includes a 13' aluminum graduated grade rod so that determining differences in elevation is quick and easy. The transit level comes equipped with a hard-shell carrying case.



40-6912 Includes > Builder's transit level, contractor grade aluminum tripod, 13' aluminum grade rod, and a hard-shell carrying case

Specifications

Warranty:

3 Year Warranty

Magnification:

22X

Leveling Accuracy:

±3/16"/100'

Minimum Focus:

4'

Clear Objective Aperture:

22mm

Field of View:

1° 6' (2'/100')

Level Vial:

4' per 2mm

Stadia Constant:

100

Graduations:

Number:

Each 10°, 0-90-0°

Vernier:

Double direct to 15 min.

Tripod Thread:

5/8"-11

Application

Johnson's builder's transit level system is truly versatile for the construction field to set up level points and to check elevations. While it is mainly used in surveying and building, it is also useful for transferring, setting or measuring horizontal levels. This system is ideal for leveling foundations, driveways and floors, grading streets, curbs and ditches, setting foundations and footers, drainage and much more!
