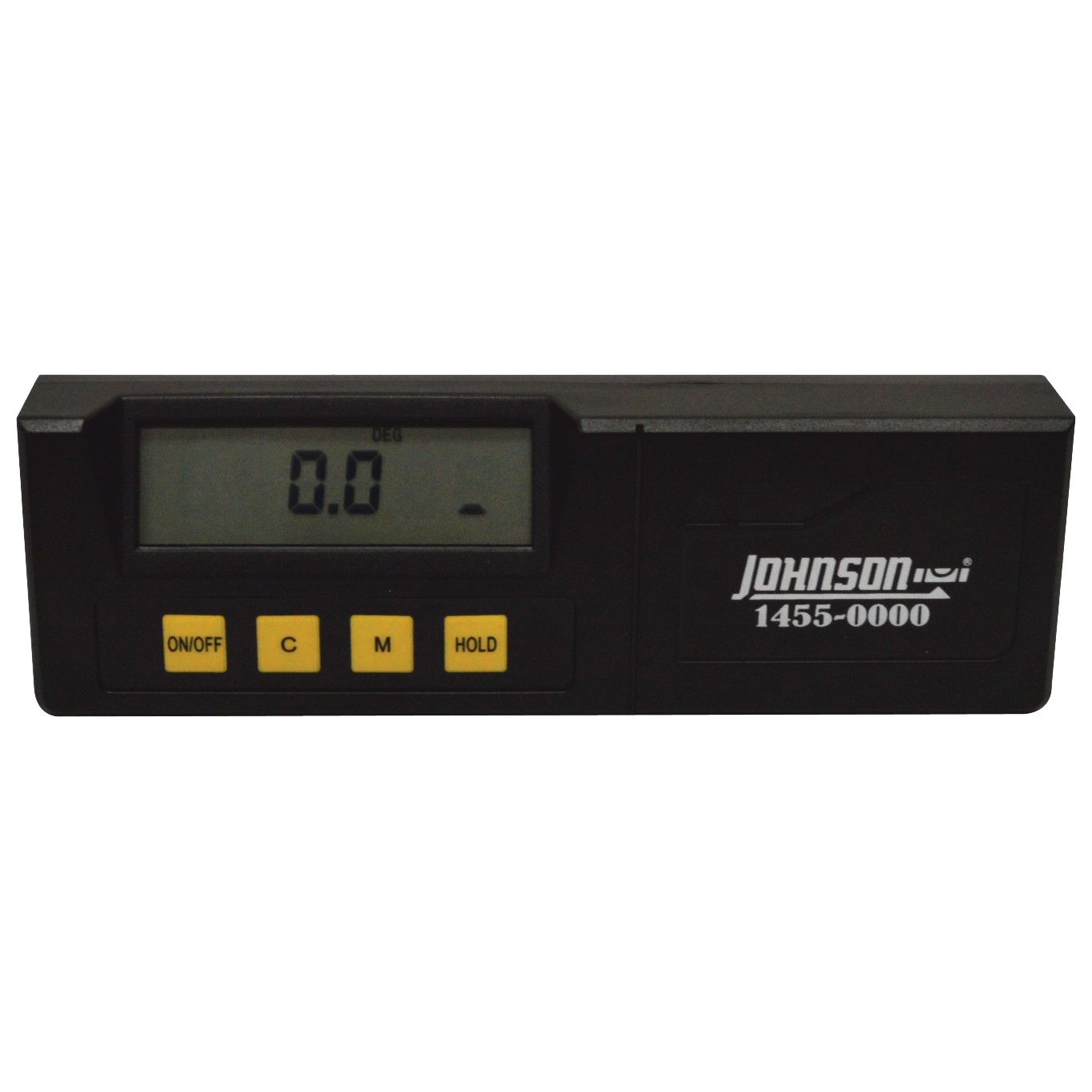

6.5" Digital Level

MODEL #:  1455-0000

Johnson's 6.5” digital level's versatility and accuracy make it a must-have tool. It can measure in both absolute and relative modes, so that it can measure the slope of an object or the difference in angle between two objects. The digital level also has a unique hold feature that allows the operator to take an accurate measurement even when the LCD screen can not be seen and gives the user an easy means of recording the measurement. This digital level reads angles in degrees or percent, simplifying your work.

1455-0000+ Hover over main image to zoom
1455-0000
  • Measures in both absolute and relative modes

  • Unique hold feature allows you to take a measurement in an unreadable position

  • Angle inclination in 2 construction languages - units of measure (degrees and percent)

  • Working range of angle measurement 0° x 90°

  • Automatic shut-off after 3 minutes without use

1455-0000 Includes > 2 "AAA" alkaline batteries and 1 knurled screw (M4 x 20)

Accuracy:

± 0.1° for 0° and 90°, and ± 0.2° for all others

Resolution:

0.1°

Working Range Angle:

0 x 90º

Power Supply:

2 "AAA" alkaline batteries (included)

Battery Life:

Approximately 100 hours continuous use

Weight:

0.529 lbs. (0.24 kg)

Working Temperature:

37°F to 114°F (5°C to 50°C)

Warranty:

1 Year Warranty

Auto Shut-Off Time:

After approx. 3 minutes without use

This level is engineered for the professional tradesman that needs to establish a specific grade or slope. Anyone setting tile, setting forms for concrete flatwork, building stairs or building ramps to comply with ADA (Americans with Disability Act) standards for pitch and slope will benefit from this electronic level.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In Canada, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Level Instruction Manual

1455-0000 Manual

Other Support

How to Choose Digital Electronic Level
How to Use Digital Electronic Level
How to Calibrate an Electronic Level

Product Details

Johnson's 6.5” digital level's versatility and accuracy make it a must-have tool. It can measure in both absolute and relative modes, so that it can measure the slope of an object or the difference in angle between two objects. The digital level also has a unique hold feature that allows the operator to take an accurate measurement even when the LCD screen can not be seen and gives the user an easy means of recording the measurement. This digital level reads angles in degrees or percent, simplifying your work.



1455-0000 Includes > 2 "AAA" alkaline batteries and 1 knurled screw (M4 x 20)

Specifications

Accuracy:

± 0.1° for 0° and 90°, and ± 0.2° for all others

Resolution:

0.1°

Working Range Angle:

0 x 90º

Power Supply:

2 "AAA" alkaline batteries (included)

Battery Life:

Approximately 100 hours continuous use

Weight:

0.529 lbs. (0.24 kg)

Working Temperature:

37°F to 114°F (5°C to 50°C)

Warranty:

1 Year Warranty

Auto Shut-Off Time:

After approx. 3 minutes without use

Application

This level is engineered for the professional tradesman that needs to establish a specific grade or slope. Anyone setting tile, setting forms for concrete flatwork, building stairs or building ramps to comply with ADA (Americans with Disability Act) standards for pitch and slope will benefit from this electronic level.
