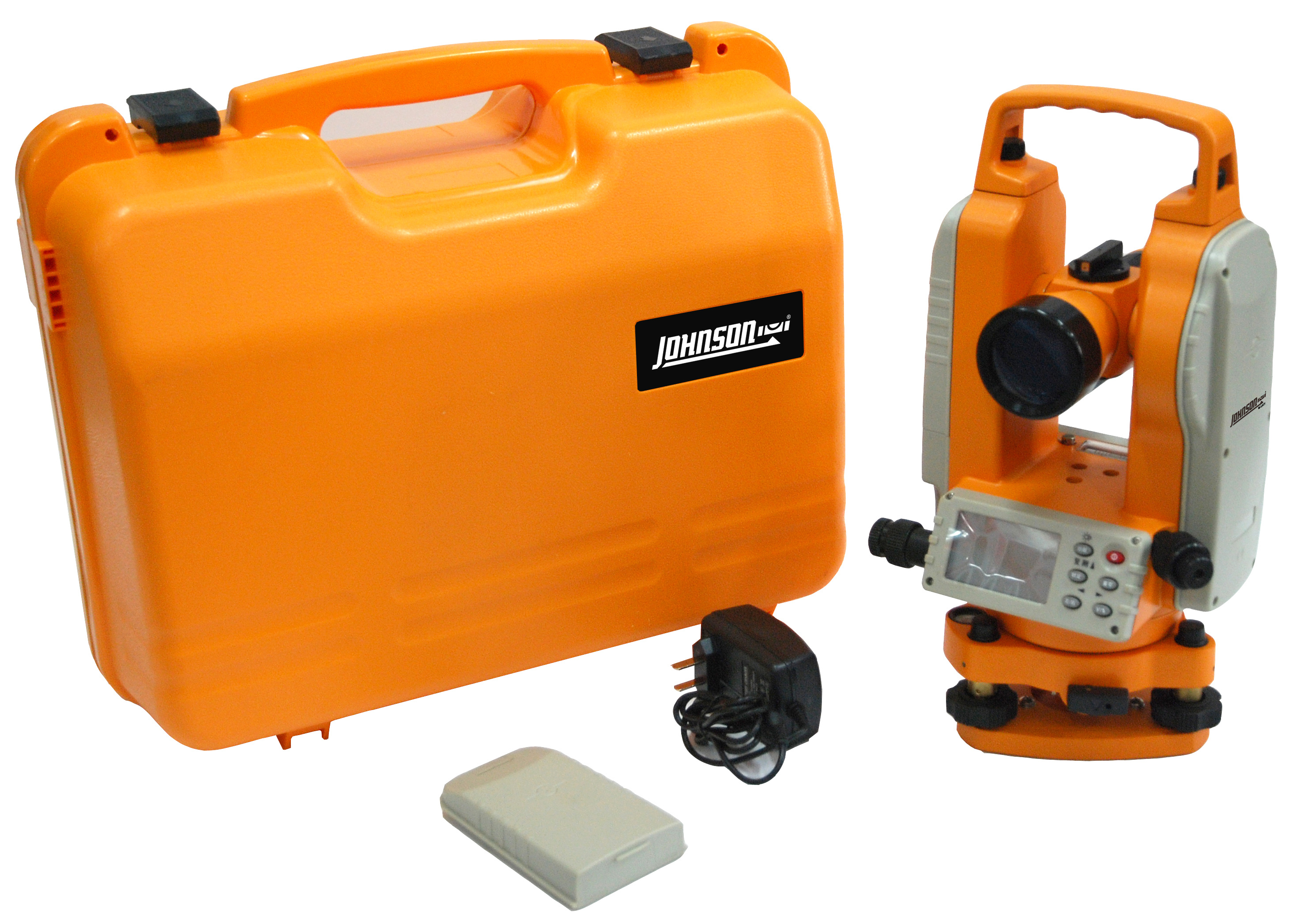

40-6932 Includes:
Telescope
|
Image |
Erect |
|
Magnification |
30X |
|
Aperture |
45mm (1.7") |
|
Resolution |
3" |
|
Angle of View |
1° 30" |
|
Shortest Distance |
1.4m (4.5') |
|
Stadia Constant |
100 |
|
Overall Length |
6.18" (157mm) |
Angle Measuring System
|
Angle Measurement |
Incremental |
|
Minimal Reading |
1", 2", 5", optional |
|
Angle Measurement Unit |
360°, 400 gon, 6400 mil, optional |
|
Accuracy |
2"(40-6932) and 5" (40-6935) |
Vial
|
Tubular Vial |
30"/2mm |
|
Circular Vial |
8"/2mm |
Compensator
|
Tilt Sensor |
Upright angle automatic compensation |
|
Compensation Range |
+ 3' |
Optical Plummet
|
Imaging |
Erect |
|
Magnification |
3X |
|
Focusing Range |
0.5m |
|
Field Angle |
5° |
Display
|
Type |
LCD with double side |
Data Input and Output
|
Joint (one) |
RS232 |
Power
|
Battery |
5 "AA" alkaline batteries or rechargeable NiMH battery pack |
|
Operating Voltage |
6V DC |
|
Operating Time |
16 hours |
Working Environment
|
Temperature Range |
-20° C - +40° C (-4°F to +104° F) |
Size and Weight
|
Outside Dimension |
6.29" x 5.90" x 12.99" (160 x 150 x 330mm) |
|
Weight |
10.14 lbs (4.6kg) |
Can be used for construction, surveying, leveling and layout work
