Self-Leveling Rotary Laser Level with GreenBrite Technology

Self-Leveling Rotary Laser Level with GreenBrite Technology

Model: 40-6543

Johnson's 40-6543 Rotary Laser Level with Greenbrite Technology is superior for indoor construction laser levels - carpenters, plumbers and electricians LOVE this rotary laser level for the visibility and accurate leveling it provides. Self leveling in the horizontal position, with the Green Laser Beam 400% brighter than red beams this makes leveling tasks fast and accurate. Still deciding?

Rotary Laser Level Features:

  • Green Beam is 400% brighter than red beam
  • Self-leveling in the horizontal plane
  • Locking mechanism protects inner pendulum during transportation
  • Manual-leveling in the vertical plane with 90° split beam
  • Laser beam modes include dot and two adjustable line lengths
  • Visual and audible alarms when beyond leveling range

All our laser levels come with a 3-year no hassle laser level warranty and a 24-hour repair or replacement service.

Click for additional views:
  • 40-6543 Self-Leveling Rotary Laser Level with GreenBrite Technology
  • 40-6543 Self-Leveling Rotary Laser Level with GreenBrite Technology
Interior Laser Pole
Electronic Self-Leveling Rotary Laser Level with GreenBrite® Technology
Self-Leveling Cross-Line Laser Level with GreenBrite Technology

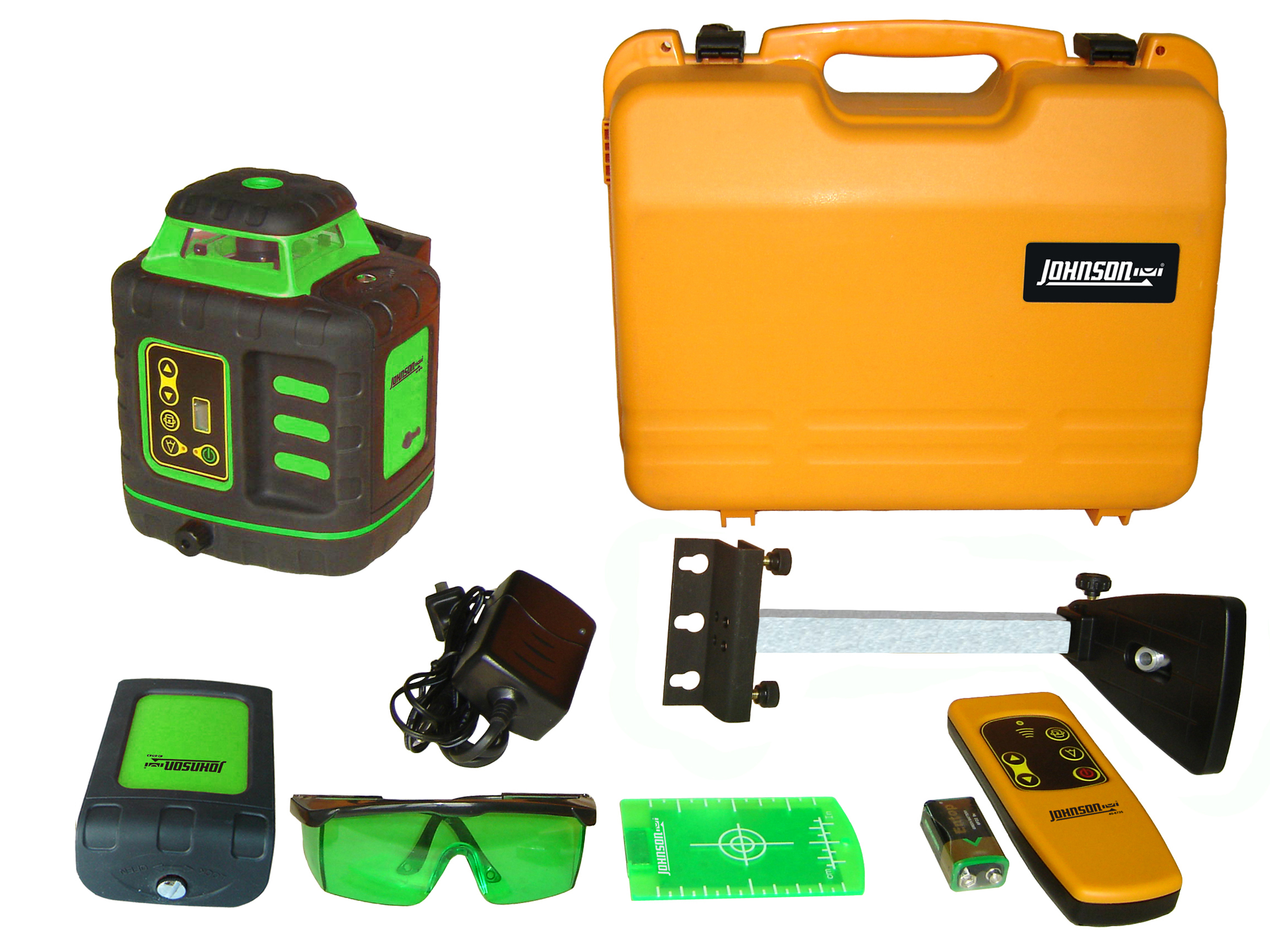

Johnson's 40-6543 Rotary Laser Level with Greenbrite Technology Includes:

  • Self-leveling rotary laser level with GreenBrite® technology
  • Remote control with 9V battery
  • Wall/ceiling mount
  • Ni-MH rechargeable battery pack
  • Alkaline battery compartment (batteries not included)
  • 6.4V battery adapter
  • Tinted glasses
  • Magnetic target
  • Instruction manual with warranty card
  • Hard-shell carrying case

Johnson Laser Level Technical Specifications

Leveling MethodSelf-Leveling (Pendulum)
Laser Wavelength532nm +/-10nm (Green)
Laser ClassificationClass IIIa
Maximum Power Output<=5mW
Accuracy+/-1/8"/100ft. (+/-1mm/10m)
Interior RangeUp to 400` diameter (120m) depending on light conditions
Exterior RangeUp to 1,200` (400m) diameter (detector not included)
Remote RangeUp to 200` diameter (60m) with remote
SlopeN/A
Auto-Leveling Range+/-3.5 degrees
Grade SettingN/A
Power SupplyRechargeable NiMH battery pack, or 6.4V adapter (included), 4 "C" alkaline batteries (not included)
Battery LifeApproximately 16 hours with rechargeable battery pack
Dimensions7.087" x 6.378" x 7.953" (180 x 162 x 202mm)
Weight4.409lbs. (2kg)
Working Temperature32F to 104F (0C to +40C)
Center Screw Thread5/8"-11
Scanning Modes0, 30, 60 degrees
Rotation Speeds150, 200, 250, 300 rpm
IP Protection Class66
Warranty3 Years

The 40-6543 rotary laser level can be used for the following indoor applications:

  • Layout of interior walls
  • Check door and window heights
  • Acoustical/Drop ceilings
  • Layout warehouse racking
  • Room additions
  • Drywall installation
  • Partition installation
  • Squaring floor and wall tiles
  • Installing sprinkler systems
  • Align and plumb walls
  • Level floors
  • Metal stud and wood framers
  • Level cabinets
  • Level shelving and countertops

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

40-6543 - English
40-6543 - French
40-6543 - Spanish
