Long Magnetic Locator with LCD

Long Magnetic Locator with LCD

Model: 40-6440

Johnson's Long Magnetic Locator with LCD display will detect ferrous metal and is perfect for locating survey corner markers, PK and Mag Nails, valve boxes and curb boxes, steel and iron pipes, well casings, steel tanks, lost tools or even downed and burried fence lines.  The lightweight and rugged construction is suitable for harsh field conditions - this magnetic locator can be submerged in water up to 75 feet.  This Magnetic Locator features a long length that can rest on your arm to prevent fatigue and keeps the user father away from any harmful buried ferrous metal objects.

  • Flashing LCD when batteries need replacement
  • Varying pitch audio signmal mode using a moving coil speaker for enhanced audio output
  • Waterproof - sensor tube pressure tested to water depths up to 75 feet
  • Easy to use - one handed operation with four button keypad
    On/Off button - turns unit on or off
    Zero button - automatically calibrates unit to ambient magnetic conditions
    Gain up button - increases the locating sensitivity of unit                                              Gain down button - decreases the locating sensitivity of unit
  • Rugged construction suitable for field conditions
  • Detection of buried ferrous metal objects at depths up to 8 feet
    Hand gun - one to two feet
    175 mm projective - four to five feet
    55 gallon drum - six to ten feet
  • Detection of ferrous metal objects and weapons on persons
  • Underwater search and detection of submerged vehicles, UXO's and mines, salvageable wrecks, pipes and cables
  • Limited lifetime warranty
Magnetic Locator
Magnetic Locator with LCD
Short Magnetic Locator with LCD

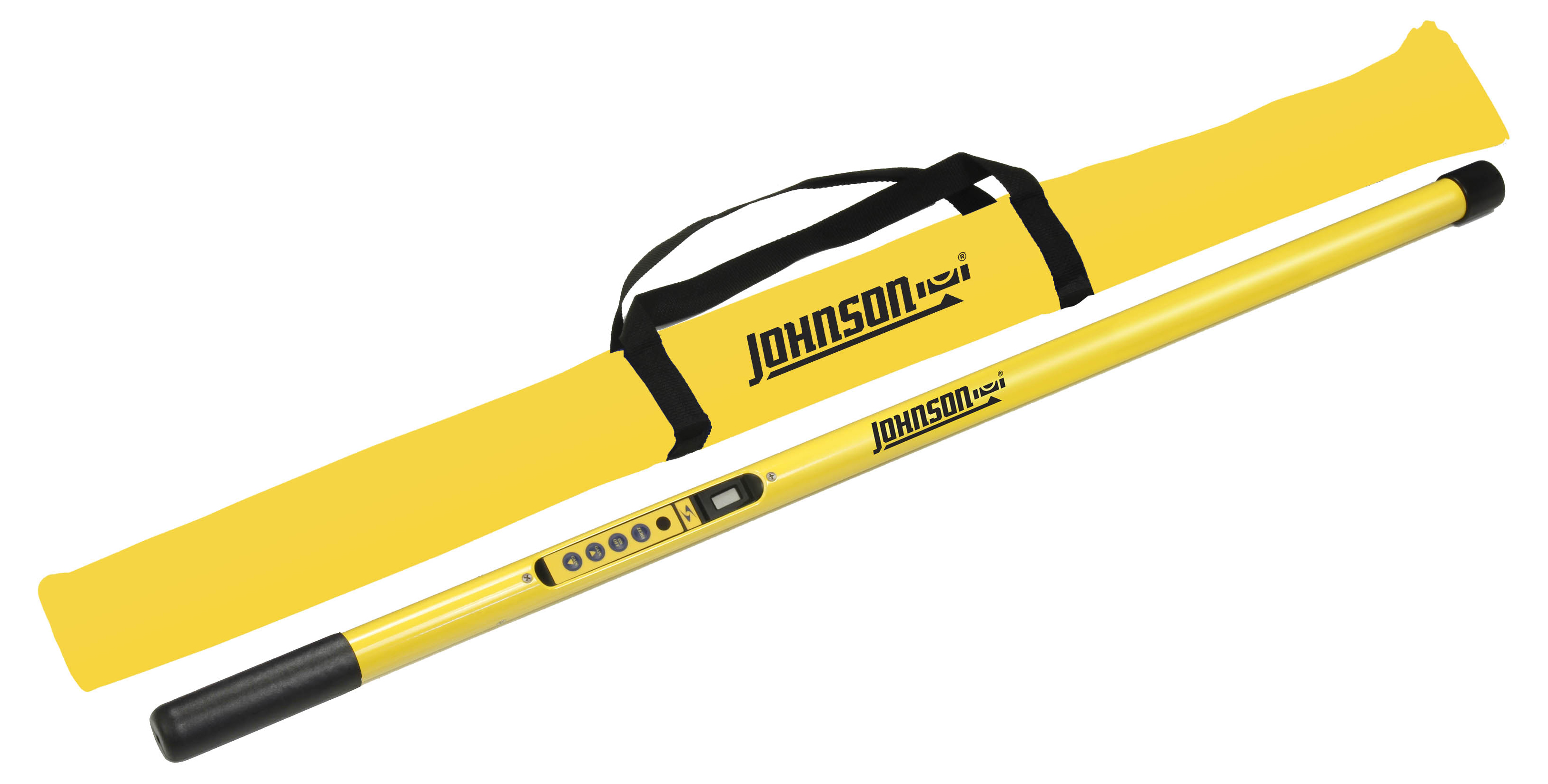

Johnson Level's 40-6440 Long Magnetic Locator with LCD includes:

  • Long magnetic locator with LCD
  • (3) 9V alkaline batteries
  • Instruction manual
  • Soft-sided carrying case

Magnetic Locator Applications:

Detecting any ferrous metal object above or under the ground such as locating survey corner markers, PK and Mag Nails, valve boxes and curb boxes, steel and iron pipes, well casings, steel tanks, lost tools and downed and buried fence lines.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.

Download 40-6440 High Resolution Image

Magnetic Locator Instruction Manuals

40-6440-English

Other Johnson Laser Level Support

All Leveling Product Manuals
Johnson Level Marketing Support

Replacement Parts list not available at this time.
