Magnetic Locator

Magnetic Locator

Model: 40-6410

Johnson Level's Magnetic Locators will detect ferrous metal objects and are perfect for locating survey corner markers, PK and Mag Nails, valve boxes, steel and iron pipes, well casings, steel tanks, lost tools or even downed and buried fence lines. This magnetic locator is more lightweight than other commercial magnetic locators to elimate fatigue of the user. The rugged construction protects the unit in harsh conditions and the magnetic locator can be submerged in water up to 75 feet deep.

  • Varying pitch audio signal mode using a moving coil speaker for enhanced audio output
  • Waterproof - sensor tube up to 27.5" and water resistant design
  • Easy to use - one handed operation with three button keypad
  • Rugged construction suitable for field conditions
  • Detection of buried ferrous metal objects at depths up to 8 feet:
    • Hand gun - one to two feet
    • 175mm projective - four to five feet
    • 55 gallon drum - six to ten feet
  • Detection of ferrous metal objects and weapons on persons
  • Provides gain setting indicator icon
  • Eight sensitivity settings
  • 40 hours operational life (intermittent usage)
  • Lightweight - 2.3 lbs including batteries
  • Operating temperature:  -13°to 140°F (-25° to 60°C)
  • Overall length:  30" (99cm)
  • Sensor tube constructed of aircraft grade aluminum continuous from handle to sensor tip
  • Control box housing material is high impact ABS plastic
  • Withstands a vertical drop of six feet onto a hard surface
  • Limited lifetime warranty
Magnetic Locator with LCD
Short Magnetic Locator with LCD
Long Magnetic Locator with LCD

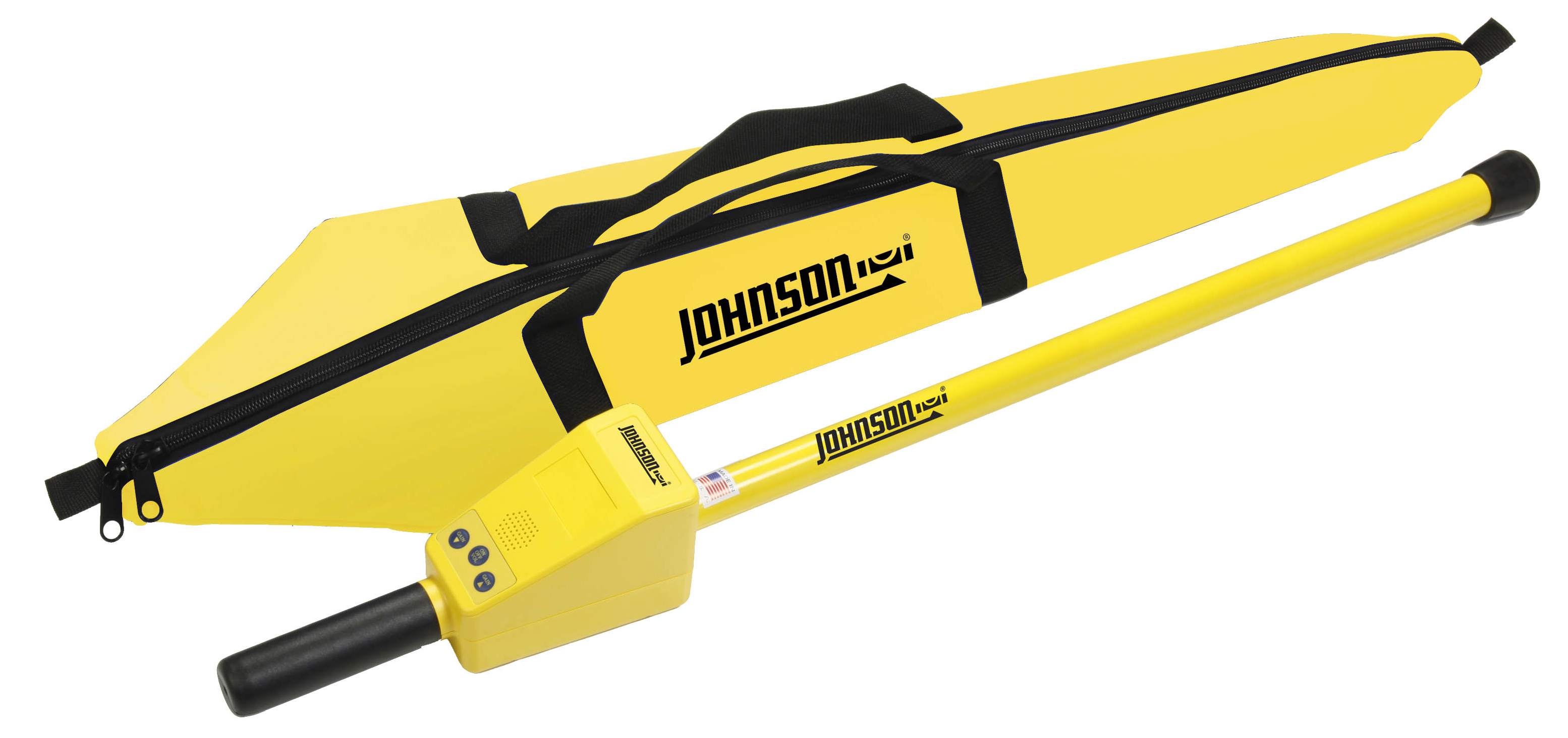

Johnson Level's 40-6410 Magnetic Locator includes:

  • Magnetic locator
  • Alkaline batteries
  • Instruction manual
  • Soft-sided carrying case

Magnetic Locator Applications:

Detecting any ferrous metal object above or under the ground such as locating survey corner markers, PK and Mag Nails, valve boxes and curb boxes, steel and iron pipes, well casings, steel tanks, lost tools, downed and buried fence lines. Can detect weapons on a person.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.
