Tiling & Flooring Laser Level

Tiling amp; Flooring Laser Level

Model: 40-6616

This handy little laser level is lightweight and packs the right punch for any flooring or tiling project.  When the tiles have to be straight, the flooring laser level accuracy of +/- 1/4" per 60 feet is way more than you need when working for a bathroom or kitchen construction tool.  With one-button "on" operation, the two laser level beams are visible over multiple surfaces.  For the professional remodeler or do-it-yourselfer, with a 3-year no hassle warranty, this handy tool on the job is a terrific value.

  • Generates two lines on the floor at 90° angles for surface layout including tile, stone, brick, carpet and hardwood flooring
  • Projects two laser beams over wet mastic or concrete
  • Angles are easily established with the built-in protractor

40-6616 Review by Harold Therault

40-6616 Review by Tool Snob

40-6616 Review by NewWoodworker.com

40-6616 Review by ProToolReviews.com

40-6616 Review by Tool-Rank.com
Click for additional views:
  • 40-6616
  • 40-6616
Self-Leveling Cross Line Laser Level with 3 Vertical Lines
Self-Leveling Cross Line Laser Level with 3 Vertical Lines
Model: 40-6602,40-6604
Self-Leveling Ultra-Bright Cross-Line Laser Level
Self-Leveling Ultra-Bright Cross-Line Laser Level
Model: 40-6625
Self-Leveling Cross Line Laser level with GreenBriteŽ Technology
Self-Leveling Cross Line Laser level with GreenBriteŽ Technology
Model: 40-6640
Quad-LineŽ Self-Leveling Cross Line Generator with Plumb Beam
Quad-LineŽ Self-Leveling Cross Line Generator with Plumb Beam
Model: 40-6662

Includes

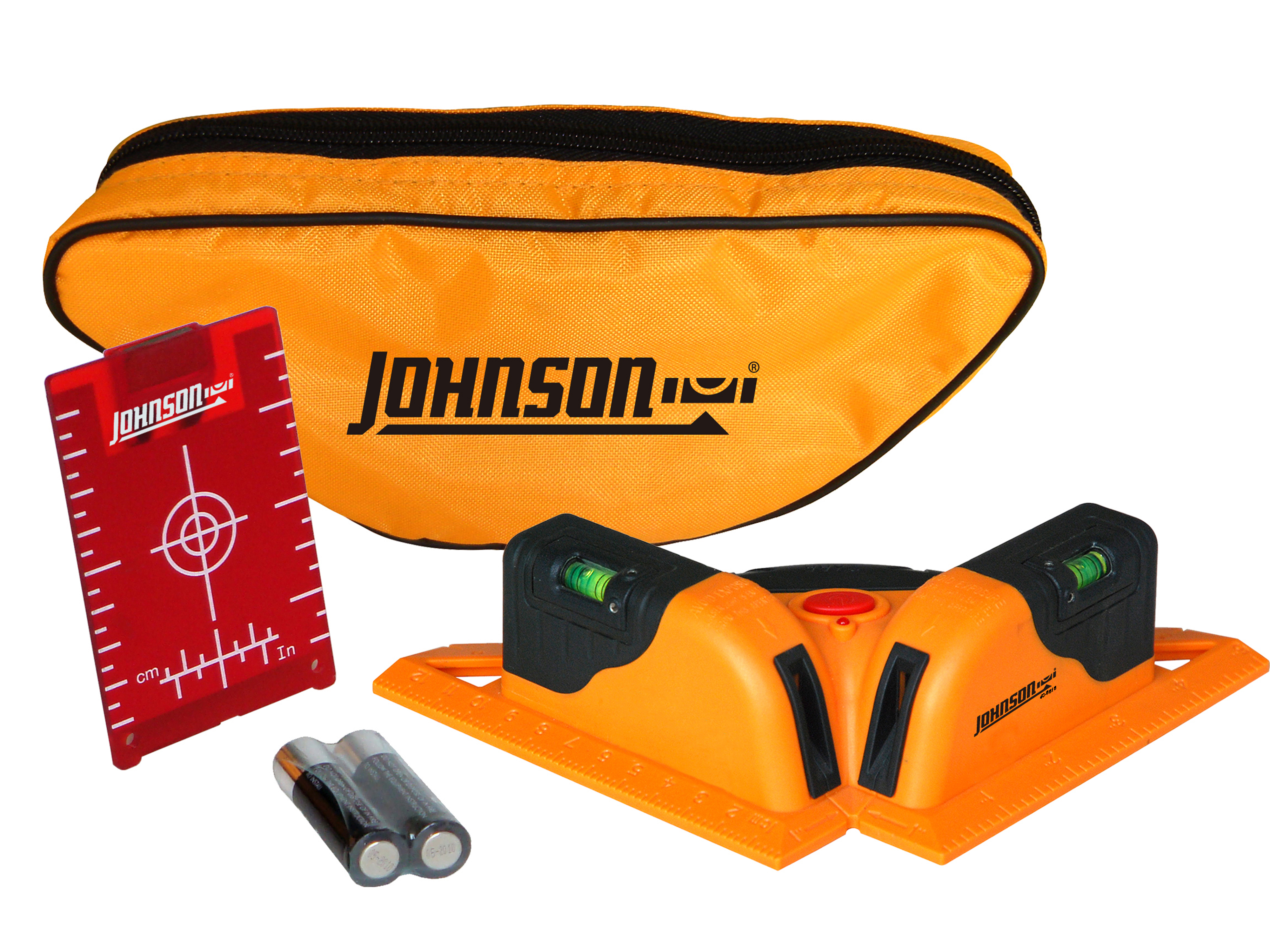

Tiling/flooring laser level, 2 “AA” alkaline batteries, floor target, instruction manual with warranty card, soft-sided pouch

Johnson Laser Level Technical Specifications

Leveling MethodManual (Vials)
Laser Wavelength635nm +/-10nm (Red)
Laser ClassificationClass IIIa
Maximum Power Output<=5mW
Accuracy+/-1/4"/60ft. (+/-4mm/10m)
Interior RangeUp to 30' (9m) depending on light conditions
Exterior RangeN/A
Self-Leveling RangeN/A
Power Supply2 "AA" alkaline batteries (included)
Battery LifeApproximately 30 hours continuous use
Dimensions6.125" x 6.125" x 1.938" (155 x 155 x 50mm)
Weight0.55lbs. (0.25kg)
Working Temperature14F to 113F (-10C to +45C)
Center Screw ThreadN/A
IP Protection ClassN/A
Warranty3 Years
Drop ceilings Drywall installation Sprinkler installation
HVAC Ceiling joist & rafter alignment Wallpaper & Stenciling/Painting
Tiling (walls and floors) Electrical outlets & switches Install conduit & wiring
Track lighting Curtain walls / Shower doors Windows
Cabinet & countertop alignment Soffits Chair rail / Trim
Closet shelves / doors Paneling / Wainscoting

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.
