Self-Leveling Cross-Line Laser Level (Kit Option)

Self Leveling Cross Line Laser Level Kit Option

Model: 40-0912, 40-0921

These cross-line laser levels are an amazing value for a self-leveling laser.  Turn the knob and the locking compensator releases the pendulum, it levels itself and the laser lights are on.  With accuracy of 1/4" at 35 feet and a three-year warranty, it is a top seller in its price range.  With this cross beam laser level on an elevating tripod, every home improvement will be a snap.  Think of it for installing towel bars, closet shelves, cabinets, window treatments and on and on.

  • Self-leveling within ± 6°
  • Interior horizontal and vertical layout
  • Locking mechanism protects inner pendulum during transportation
  • 360° graduated base allows angle layout
  • Emits cross line lasers
  • Projects vertical and horizontal laser lines simultaneously
  • Visual out of level indicator
  • 5/8" - 11 thread

40-0912 Review by Toolsnob

40-0921 Review by NewWoodworker.com

40-0921 Review by Tool-Rank.com
Click for additional views:
  • 40-0912
  • 40-0912
  • 40-0912
  • 40-0921
Tiling & Flooring Laser Level
Tiling & Flooring Laser Level
Model: 40-6616
Self-Leveling Ultra-Bright Cross-Line Laser Level
Self-Leveling Ultra-Bright Cross-Line Laser Level
Model: 40-6625
Self-Leveling Cross Line Laser level with GreenBriteŽ Technology
Self-Leveling Cross Line Laser level with GreenBriteŽ Technology
Model: 40-6640
Quad-LineŽ Self-Leveling Cross Line Generator with Plumb Beam
Quad-LineŽ Self-Leveling Cross Line Generator with Plumb Beam
Model: 40-6662

Model 40 0912 Self-Leveling Cross Line Laser Level Includes:

  • 3 “AAA” alkaline batteries
  • Printed Instruction manual with warranty card
  • Soft-sided carrying case

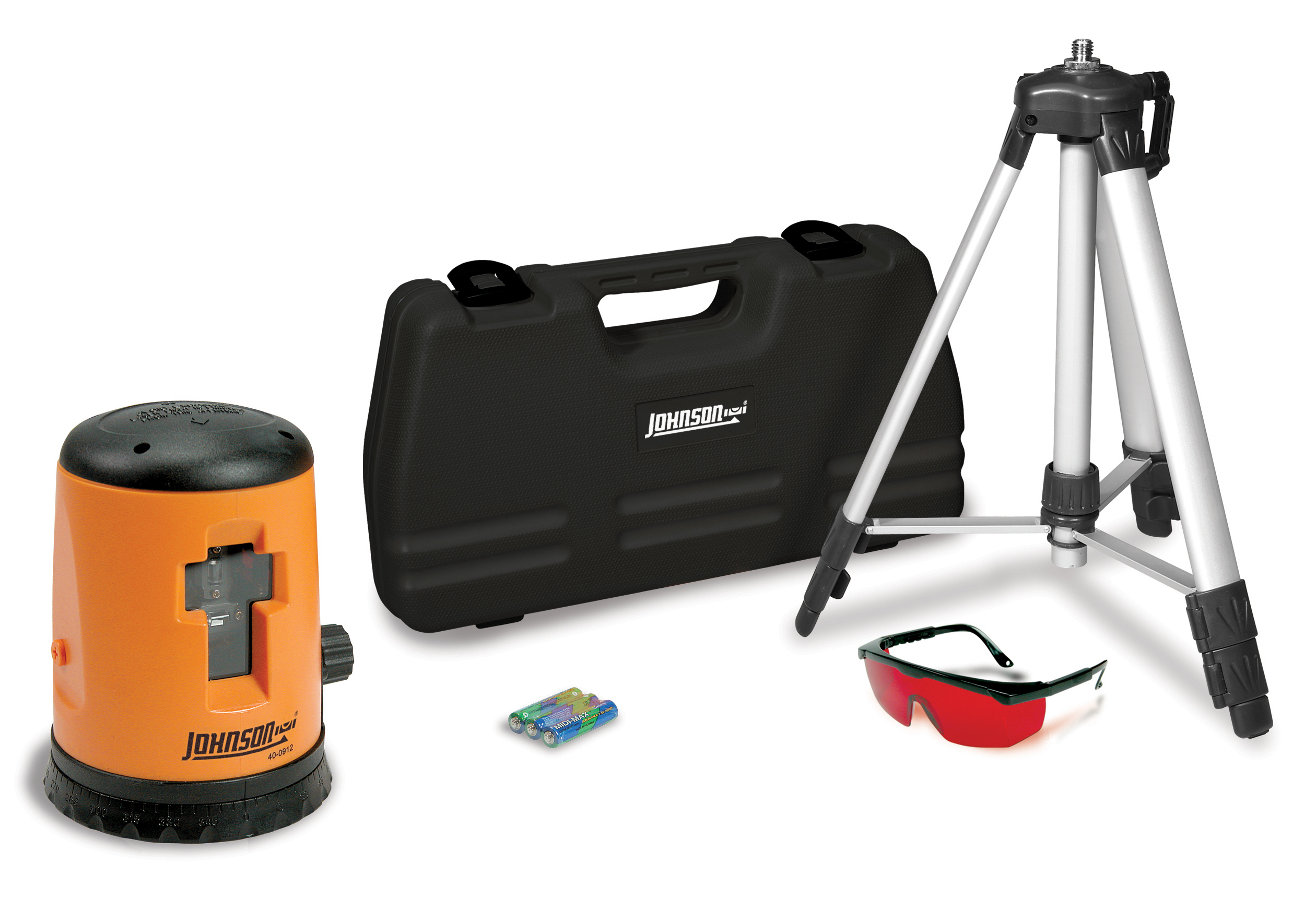

Model 40 0921 Self-Leveling Cross Line Laser Level Includes:

  • 3 “AAA” alkaline batteries
  • Tinted glasses
  • Elevating tripod
  • Printed Instruction manual with warranty card
  • Hard-shell carrying case

Johnson Laser Level Technical Specifications

Leveling MethodSelf-Leveling (Pendulum)
Laser Wavelength635nm +/-10nm (Red)
Laser ClassificationClass IIIa
Maximum Power Output<=5mW
Accuracy+/-1/4"/35ft. (+/-.6mm/1m)
Interior RangeUp to 100' (30m) depending on light conditions
Exterior RangeN/A
Self-Leveling Range+/-6 degrees
Power Supply3 "AAA" alkaline batteries (included)
Battery LifeApproximately 12 hours continuous use
Dimensions5" x 4" x 3.5" (127 x 101 x 89mm)
Weight1.2lbs. (0.54Kg)
Working Temperature14F to 113F (-10C to +45C)
Center Screw Thread5/8"-11
IP Protection Class54
Warranty3 Years
