Manual-Leveling Rotary Laser Level

Manual-Leveling Rotary Laser Level

Model: 40-0918, 40-0922

Johnson's Manual-Leveling Rotary Laser Level has accuracy of 1/8" at 30 feet with a variable rotation speed, runs silently and is easy to level using three tuning knobs with three bubble levels. The Rotary Laser Level Kit includes an aluminum elevating tripod (Johnson Model 40-6861), laser glasses and a hardshell carrying case to protect the rotary laser level, this laser level is an excellent value and is a top seller for home and on the construction site.

Rotary Laser Level Features:

  • Manual level in horizontal and vertical planes
  • Simultaneous 90° split beam in vertical mode
  • Illuminated vials for easy reading in all conditions
  • Rotation speed from 0 to 600 RPM
  • Multi-functional adjustable base and mounting bracket

40-0918 Review by NewMetalworker.com
40-0918 Review by Harold Therault
40-0918 Review by Tool-Rank

All our laser levels come with a 3-year no hassle laser level warranty and a 24-hour repair or replacement service.

Self-Leveling Cross-Line Laser Level (Kit Option)
165ft. Laser Distance Measure
Self-Leveling 2 Beam Dot Laser Level
Tripod Adapter

40-0922 Manual-Leveling Rotary Laser Level Includes:

  • Manual-leveling rotary laser level with adjustable base and mounting brackets
  • Instruction manual

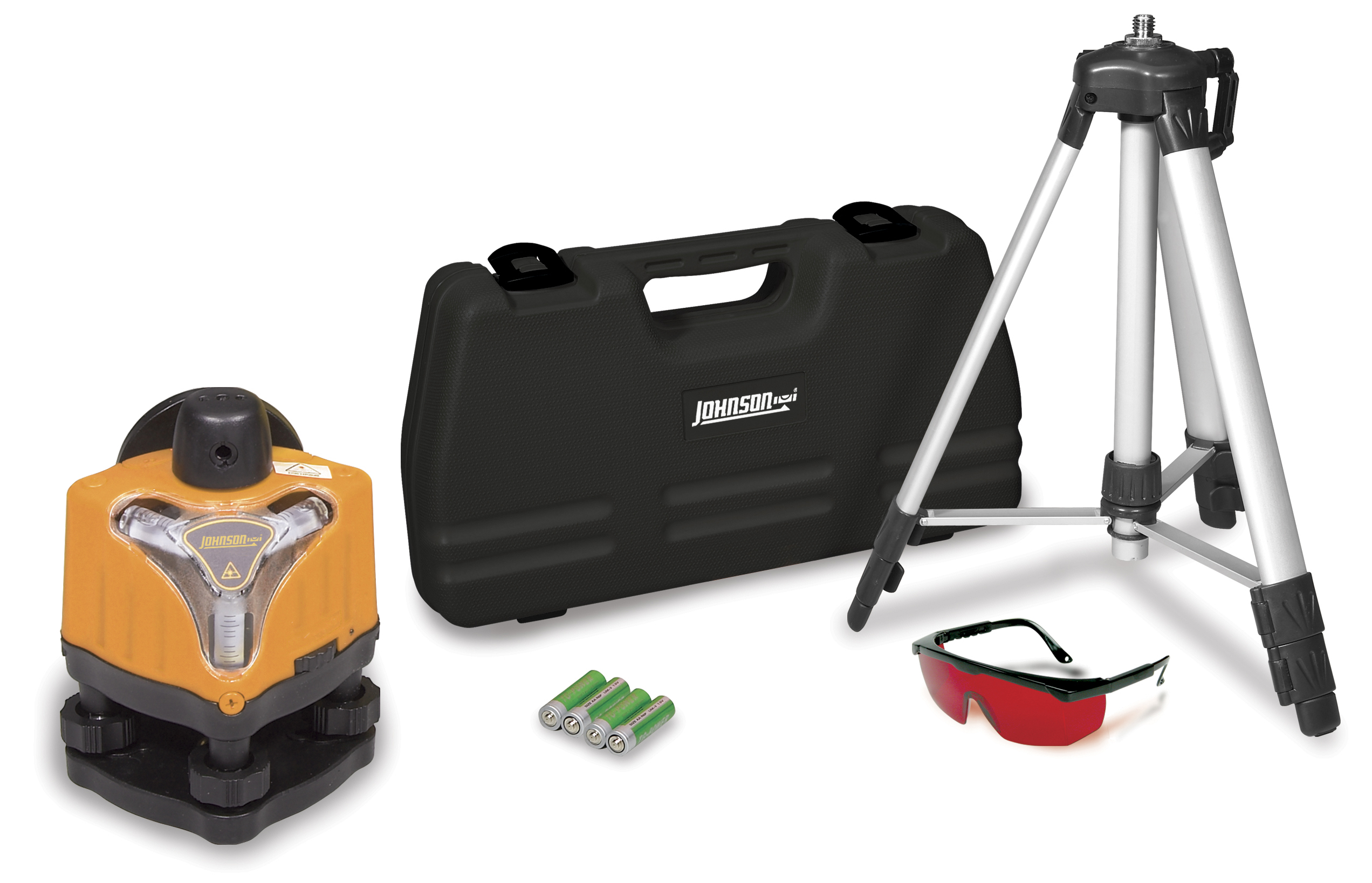

40-0918 Manual-Leveling Rotary Laser Level Kit Includes:

  • Manual-leveling rotary laser level with adjustable base and mounting brackets
  • 4 "AA" alkaline batteries
  • Elevating tripod - Johnson's 40-6861
  • Instruction manual
  • Tinted laser glasses
  • Hard-shell carrying case

Johnson Laser Level Technical Specifications

Leveling MethodManual (Vials)
Laser Wavelength650nm +/-10nm
Laser ClassificationClass IIIa
Maximum Power Output<=5mW
Accuracy+/-1/8"/30ft. (+/-0.3mm/m)
Interior RangeUp to 200` diameter (60m) depending on light conditions
Exterior RangeN/A
Remote RangeN/A
SlopeN/A
Auto-Leveling RangeN/A
Grade SettingN/A
Power Supply4 "AA" alkaline batteries (not included)
Battery LifeApproximately 25 hours continuous use
Dimensions4.75" x 4.75" x 6.125" (120 x 120 x 155mm)
Weight1.35 lbs. (0.612kg)
Working Temperature14F to 113F (-10C to +45C)
Center Screw Thread5/8"-11
Scanning ModesN/A
Rotation Speeds0 - 600 rpm
IP Protection Class43
Warranty3 Years

A rotary laser level priced for every toolbox! Do-It-Yourselfers enjoy the ease of use with accuracy and a price that makes this tool worth it for hanging pictures, installing cabinets and shelving. Light duty use on any construction site for carpenters and electricians.
