23" Magnetic Digital Level & Angle Locator with Dot Laser

23" Magnetic Digital Level amp; Angle Locator with Dot Laser

Model: 40-6065

  • 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
  • Working range of angle measurement is 0° to 182.5°
  • Automatic digit inversion for overhead measurements
  • Laser beam for transfer of reference points
  • Push button calibration
  • Audible indicator at 0° and 90°
  • Backlight for easy-read in dimly lit work environment

40-6065 Review by Toolsnob

Click for additional views:
  • 40-6065 Applications
  • 40-6065 Angle Measurement
  • 40-6065 Kit
Digital Box Levels with Rotating Display and Glo-View Technology
6" Magnetic Digital Level
15" Digital Angle Locator
12" Magnetic Digital Laser Level

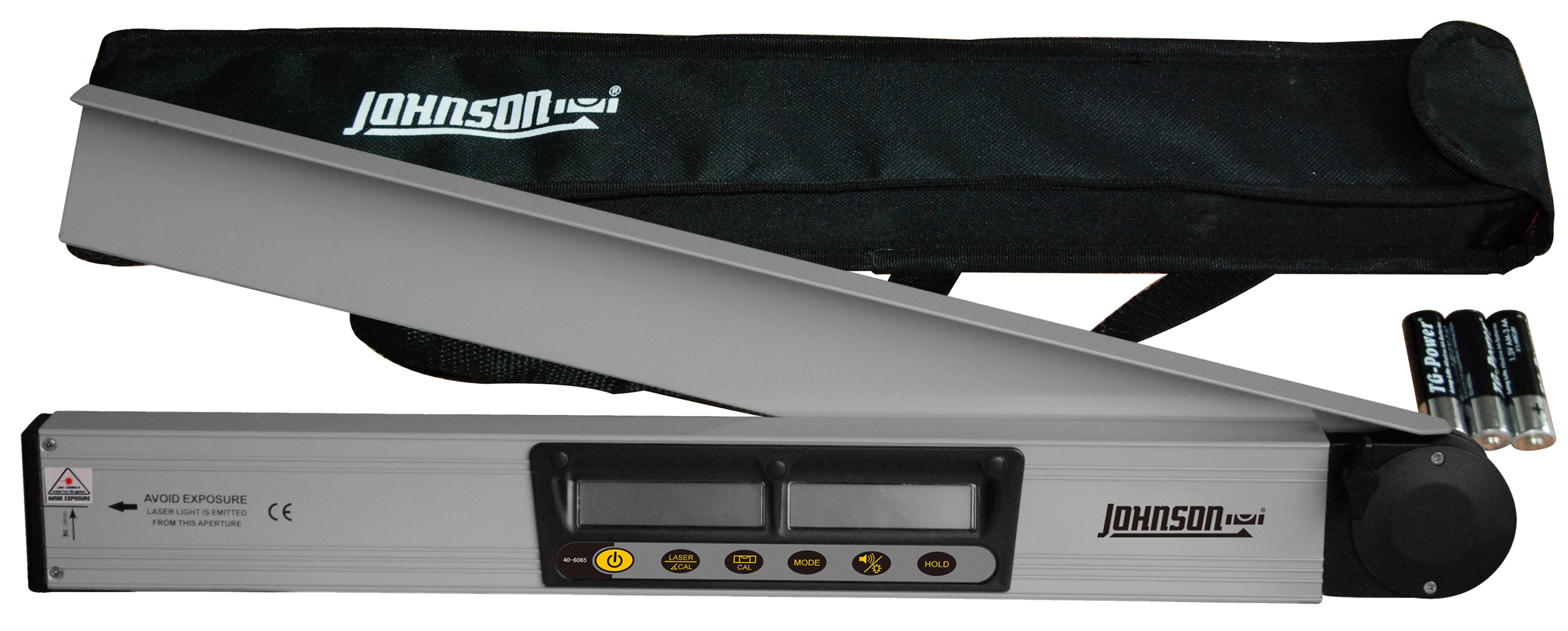

Includes

Digital laser level and angle finder, 3 “AA” alkaline batteries, instruction manual, soft-sided pouch

Johnson Laser Level Technical Specifications

Working Range Angle0° to 182.5°
Accuracy±0.1 for 0° and 90°, and ±0.2 for 1° to 89°
Power Supply3 "AA" alkaline batteries (included)
Battery LifeApproximately 70 hours continuous use
Dimension Arm To Arm Length
Weight2.6lbs (1.18kg)
Working Temperature14°F to 113°F (-10°C to +45C)
Automatic Shut Off
Center Screw Thread1/4" - 20
Dimensions20.8" x 2.48" x 1.57" (528 x 63 x 40mm)
Laser Accuracy±1/8"/50` (±0.2mm/m)
Laser ClassificationClass IIIa
Laser Wavelength650nm ±10
Maximum Power Output5mW
Resolution0.1° or 0.1%
Working Angle Inclination0° to 90°
Working Range
Accuracy Angle±0.1°

The 40-6065 digital level and angle locator can be used for the following outdoor and indoor applications:

  • Machine installation for level and plumb
  • Handicap ramp installation
  • Measuring slope or incline
  • Measure angles
  • Bend pipe or sheet metal at precise angles
  • Window and door installation
  • Counter top installation

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.
